    SYS-E403-9D-12C-FN13TP

    Print
    Intergrated Board

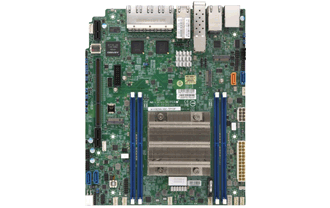

    X11SDW-12C-TP13F
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • •-Multi-Access Edge Computing (MEC)
      •-Universal Customer Premise
      Equipment (uCPE)
      •-Network Function Virtualization(NFV)
      •-Edge Computing, Vehicle to
      Everything Application(C-V2X/V2X)
    • • Intel® Xeon® D-2163IT Processor,
      12 Cores, 24 Threads, 2.1 GHz, 75W
    • • Up to 512GB ECC LRDIMM,
      up to 256GB reg. ECC RDIMM
      DDR4-2133Mz; in 4 DIMM slots
    • • 2 PCI-E 3.0 x16 or
      2 PCI-E 3.0 x8 +
      1 PCI-E 3.0 x16 (FH3/4L) slots
    • • 4 Internal 2.5" drive bays
    • • M.2: 1 M-Key 2280/22110,
      1 E-Key 2230, 1 B-Key, 3042
    • • 9 GbE (one for Ethernet management),
      2x 10GbE, 2x 10G SFP+, and
      1 Dedicated IPMI LAN port
    • • 2 USB 3.0, 2 USB 2.0, 1 COM
      via RJ45, VGA via BMC
    • • 600W Multi-output
      Gold Level Power Supply
    Specifications
    Product SKUs
    SYS-E403-9D-12C-FN13TP
    • SuperServer E403-9D-12C-FN13TP (Black)

    Motherboard
    Super X11SDW-12C-TP13F

    Processor
    CPU
    • Intel® Xeon® processor D-2163IT,
      CPU TDP support 75W
    Cores / Cache
    • 12 Cores, 24 Threads

    System Memory
    Memory Capacity
    • Up to 512GB DDR4 ECC LRDIMM
    • Up to 256GB DDR4 ECC RDIMM
    • 4 DIMM slots
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 L/RDIMM
    • Operating speed up to 2133MHz
    DIMM Sizes
    • 128GB, 64GB, 32GB, 16GB
    Memory Voltage
    • 1.2 V

    On-Board Devices
    Chipset
    • System on Chip (SoC)
    SATA
    • SATA3 (6Gbps) ports via SoC controller
    Network Controllers
    • Dual 10G SFP+ via SoC
    • Dual 10GBase-T via Intel X557
    • 8x 1GbE with Intel I350-AM4
    • Single 1GbE with Intel I210
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • VGA via Aspeed AST2500 BMC

    Input / Output
    SATA
    • 4 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
    LAN
    • 9 RJ45 Gigabit Ethernet LAN ports
    • 2 RJ45 10GbE LAN ports
    • 2 10G SFP+ LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (front)
    • 2 USB 2.0 ports (front)
    Video
    • 1 VGA port
    Serial Port / Header
    • 1 COM via RJ45

    System BIOS
    BIOS Type
    • 128Mb SPI Flash with AMI BIOS

    Management
    Software
    Chassis
    Form Factor
    • Box PC
    Model
    • CSE-E403IF-505

    Dimensions and Weight
    Height
    • 4.3" (109mm)
    Width
    • 10.5" (267mm)
    Depth
    • 16" (406mm)
    Weight
    • Gross Weight: 23 lbs (10.43 kg)
    • Net Weight: 17 lbs (7.7 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED

    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 (FH3/4L) slots or
    • 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16 (FH3/4L) slots
    M.2
    • 1 M.2 M-Key , 2280/22110
    • 1 M.2 E-Key , 2230
    • 1 M.2 B-Key , 3042

    Drive Bays
    Internal
    • 4 Internal 2.5" drive bays

    System Cooling
    Fans
    • 3x 80x80mm PWM redundant fans

    Power Supply
    600W AC multi output power supply w/ PFC
    AC Voltage
    • 100-240 V, 50-60 Hz, 7.5-3.1 Amp
    +5V
    • 20 Amp
    +5V standby
    • 3 Amp
    +12V
    • 49 Amp
    +3.3V
    • 16 Amp
    Certification Gold Level Certified
      Gold Certified
      [ Test Report ]

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      0°C ~ 50°C (32°F ~ 122°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11SDW-12C-TP13F
    CSE-E403IF-505    		 1
    1    		 Super X11SDW-12C-TP13F Motherboard
    Embedded Server Box
    Add-on Card / Module AOM-SDW-B16X2-P 1 AOM-SDW-B16X2, Dual PCIE x16 slot WIO Riser Card for Intel FlexRAN project,RoHS
    Cable 1 CBL-0082L 1 Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
    Cable 2 CBL-0483L 2 SATA,INT,ROUND,ST-ST,29CM,30AWG
    Cable 3 CBL-CDAT-0850 1 CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS
    Parts MCP-260-00144-0B 1 1U I/O Shield for X11SDW with EMI Gasket, Black
    Air Shroud MCP-310-50502-0B 1 Air shroud for SC505 + X10SDV-7TP8F
    Power Supply PWS-601-1H 1 1U 600/680W MULTI OUTPUT PWS 80+ GOLD
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Hide Parts List
