-Video Transcoding and Streaming
-Intel Iris Pro Graphics P580 with
128MB of on-Package cache
for high performance graphics
-Digital Signage, Indoor Kiosk
-Interactive information system
• Single socket FCBGA 1440 supports
Intel® Xeon® processor E3-1515M v5,
4-Core, 8 Threads, 45W
• Intel® CM236 Chipset
• 1 internal 2.5" hard drive support
• Up to 32GB ECC/non-ECC Unbuffered
SO-DIMM DDR4-2133 in 2 sockets
• 1 Mini PCIe (mSATA support), 1 M.2
PCIe 3.0 x4 (SATA support),
M Key 2242/80
• 1 DVI-I, 1 HDMI, 1 DP, 3 independent
displays, and ALC 888S HD Audio
• 4 GbE, 4 USB 3.0 ports (rear), 2
SATADOM support, 1 COM (in RJ45)
• 2x 6cm cooling fans
• 84W DC power adapter


Processor/Cache

CPU	Intel® Xeon® processor E3-1515M v5 Single Socket FCBGA 1440, QPI up to 8.0GT/s, CPU TDP support 45W


System Memory

Memory Capacity	2x DDR4 SO-DIMM slots Up to 32GB Unbuffered ECC/non-ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots
Memory Type	2133/1866/1600MHz ECC/Non-ECC DDR4 SODIMMs
DIMM Sizes	16GB, 8GB, 4GB
Memory Voltage	1.2 V


On-Board Devices

Chipset	Intel® CM236 Chipset
SATA	Intel® CM236 controller for 4 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10; Intel RSTe
Network Controllers	Single LAN with Intel® PHY I219LM LAN controller Single LAN with Intel® Ethernet Controller I210-AT Dual LAN with Intel® Ethernet Controller I350-AM2 Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	ALC 888S HD Audio
Graphics	Intel® Iris Pro Graphics P580


Input / Output

Serial ATA	4 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10; Intel RSTe
LAN	4 RJ45 Gigabit Ethernet LAN ports
USB	4 USB 3.0 ports (rear)
Audio	ALC 888S HD Audio
Display	1 Display Port 1.2, 1 HDMI 2.0, 1 DVI-I, 3 Independent Displays


Dimensions

Width	7.68" (195mm)
Height	2.68" (68mm)
Depth	7.68" (195mm)
Weight	Gross Weight: 6.68 lbs (3.04 kg) Net Weight: 3.86 lbs (1.75 kg)
Available Colors	Black


Front Panel

Buttons	Power button
LEDs	Power LED (Hard drive activity LED)
I/O Ports	4 USB 3.0 (rear)


Expansion Slots

PCI-E	1 Mini-PCIe w/ mSATA support 1 M.2 PCIe 3.0 x4 (SATA support), M Key 2242/80


Drive Bays

Internal	1 internal 2.5" drive tray Enterprise SATA HDD only recommended


System BIOS

BIOS Type	AMI UEFI
BIOS Features	ACPI 5.0 DMI 2.3 PCI 3.0 Plug and Play (PnP) SMBIOS 3.0 UEFI 2.3.1 USB Keyboard support


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)


Parts List - (Items Included)

	Part Number	Qty	Description

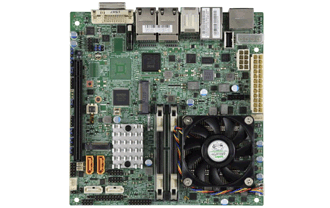

Motherboard / Chassis	MBD-X11SSV-M4 CSE-101iF	1 1	Super X11SSV-M4 Motherboard Embedded Mini-ITX Chassis with VESA and wall mount kit
Power Supply	MCP-250-10122-0N	1	84W Lockable power adapter with US power cord, RoHS
Parts	MCP-260-00056-0N	1	Standard I/O Shield for X9SPV-M4 with EMI Gasket
