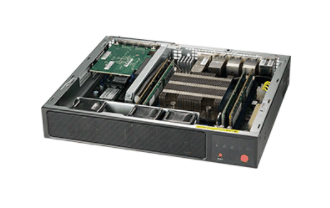

    SYS-E300-9D

    Print
    Intergrated Board

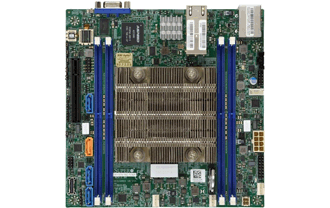

    X11SDV-4C-TLN2F

    Key Features

    • -Network Security Appliance
      -Universal Customer Premise Equipment(uCPE)
      -Software Defined WAN (SD-WAN)
      •-NFV Edge Computing Server
      •-Virtualization Server
      •-IoT Edge Computing / Gateway
    • • Intel® Xeon® processor D-2123IT,
      4-Core, 8 Threads, 60W
    • • System on Chip
    • • 1Internal 2.5" drive bay
    • • Up to 512GB ECC LRDIMM,
      up to 256GB ECC RDIMM
      DDR4-2400Mz; in 4 DIMM slots
    • • 1onboard OCuLink port (or 1 PCI-E 3.0
      x4 NVMe), 1 PCI-E 3.0 x8 (LP) open slot
    • • 2x 10GBase-T LAN and 1 dedicated
      LAN for IPMI 2.0
    • • 1 VGA, 2 USB 3.0, 1 TPM 2.0 header
    • • 3x 40x28mm 4-PIN PWM Fan
    • • 150W Lockable DC Power Adapter
    Specifications
    Product SKUs
    SYS-E300-9D
    • SuperServer E300-9D (Black)

    Motherboard
    Super X11SDV-4C-TLN2F

    Processor/Cache
    CPU
    • Intel® Xeon® processor D-2123IT,
      CPU TDP support 60W
    Cores / Cache
    • 4 Cores, 8 Threads

    System Memory
    Memory Capacity
    • Up to 512GB DDR4 ECC LRDIMM
    • Up to 256GB DDR4 ECC RDIMM
    • 4 DIMM slots
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC RDIMM
    • Operating speed up to 2400MHz
    DIMM Sizes
    • RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
    • LRDIMM: 16GB, 32GB, 64GB, 128GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors
        (using ECC memory)

    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SoC controller for 4 SATA3 (6Gbps) ports; RAID 0,1,5,10 RSTe
    Network Controllers
    • Dual 10GBase-T LAN, SoC
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • Aspeed AST2500 BMC

    Input / Output
    SATA
    • 1 SATA3 (6Gbps) port (SATA/SAS HDD/SSD)
    LAN
    • 2 10GBase-T LAN ports
    • 1 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    Display
    • 1 VGA port
    TPM
    • 1 TPM 2.0 header
    Chassis
    Form Factor
    • Compact
    Model
    • CSE-E300

    Dimensions
    Width
    • 10" (254mm) / 15" (381mm) - pkg.
    Height
    • 1.7" (43mm) / 10.87" (276mm) - pkg.
    Depth
    • 8.9" (226mm) / 5.59" (142mm) - pkg.
    Weight
    • Gross Weight: 7.5 lbs (3.4 kg)
    • Net Weight: 3.45 lbs (1.56 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED (Hard drive activity LED)

    Expansion Slots
    PCI-Express
    • 1 onboard OCuLink port (or 1 PCI-E 3.0 x4 NVMe)
    • 1 PCI-E 3.0 x8 (LP) open slot

    Drive Bays
    Internal
    • 1 Internal 2.5" drive bay

    System Cooling
    Fans
    • 3x 40x28mm 4-PIN PWM Fan

    Power Supply
    150W Lockable DC power adapter (adapter cannot be mounted by the kit)

    System BIOS
    BIOS Type
    • 128Mb SPI Flash with AMI BIOS
    BIOS Features
    • PCI 3.0
    • ACPI 5.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • SMBIOS 2.8
    • UEFI 2.4
    • RTC (Real Time Clock) Wakeup

    Management
    Software
    • Intel® Node Manager
    • IPMI 2.0
    • KVM with dedicated LAN
    • NMI
    • SUM
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • ACPI Power Management
    • +12V DC Power Input
    • Control of power-on for recovery from AC power loss
    • CPU thermal trip support for processor protection
    • M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL
    Fan
    • Fans with tachometer status monitoring
    • Status monitor for speed control
    • Low noise fan speed control
    • Pulse Width Modulated (PWM) fan connectors

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         0°C to 40°C (32°F to 104°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)
      Part Number Qty Description
    Motherboard / Chassis MBD-X11SDV-4C-TLN2F
    CSE-E300     		1
    1    		 Super X11SDV-4C-TLN2F Motherboard
    Embedded Server BOX for Flex-ATX, Mini-ITX 1U height
    Power Adapter MCP-250-10128-0N 1 150W Lockable Power Adapter with US power cord
    Cooling Fan FAN-0065L4 3 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
    Optional Parts List
      Part Number Qty Description
    Riser Card RSC-RR1U-E8 - RSC-RR1U-E8 (Rev 4.00) Riser Card
    Chassis Parts MCP-290-30002-0B - CSE-E300 Rackmount kit
    Cable CBL-CUSB-0975 - RJ45 SERIAL Cable for Console
