- IoT Edge Computing
- DVR / NVR
- Machine Automation
- Digital Signage
- Medical Applications
- IoT Gateway
• Single Socket H4 (LGA 1151) supports:
8th/9th Gen Intel® Core™ i7/i5/i3
/ Pentium® / Celeron® processor
• Intel® Q370 chipset
• Internal 2.5" drive bays (Top drive
bay area can accommodate either an
AOC with riser card and bracket or
2.5" drive on the top bracket.)
• Up to 32GB unbuf. non-ECC SO-DIMM,
DDR4-2666Mz; in 2 DIMM slots
• 1PCI-E 3.0 x16 LP AOC slot, M.2 M key:
PCI-E 3.0 x4, support 2242/2280;
M.2 E KEY: PCI-E 3.0 x1, support 2230
• 2x 1GbE LAN ports
• 4USB 3.1 (2 type A and 2 type C)
• 1HDMI, 1 DP, 1 DVI-D, HD Audio
• 2x 4cm high performance PWM fans
• DC Power Adapter


Processor/Cache

CPU	Single Socket H4 (LGA 1151) supports: 8th/9th Gen Intel® Core™ i7/i5/i3 / Pentium® / Celeron® processor CPU TDP support Up to 65W TDP


System Memory

Memory Capacity	Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz 2 DIMM slots
Memory Type	DDR4-2666MHz Unbuffered non-ECC SO-DIMM
DIMM Sizes	16GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset	Intel® Q370
SATA	Q370 controller for 5 SATA3 ports; RAID 0, 1
Network Controllers	Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Intel® PHY I219LM LAN controller
Audio	ALC 888S HD Audio
Graphics	3 Independent Displays


Input / Output

SATA	5 SATA3 (6Gbps) ports via PCH
LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	4 USB 3.1 (2 type A and 2 type C in rear)
Display	1 DVI - D port 1 HDMI port 1 DP (Display Port) 1 eDP (Embedded Display Port) 3 Independent Displays
Audio	HD Audio (Mic In / Line Out)
TPM	1 TPM Header & Chip


Dimensions

Width	10" (254mm) / 15" (381mm) - pkg.
Height	1.7" (43mm) / 10.87" (276mm) - pkg.
Depth	8.9" (226mm) / 5.59" (142mm) - pkg.
Weight	Gross Weight: 7.5 lbs (3.4 kg) Net Weight: 3.45 lbs (1.56 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button
LEDs	Power LED (Hard drive activity LED)


Expansion Slots

PCI-E	1 PCI-E 3.0 x16
M.2	M.2 M key: PCI-E 3.0 x4, NVMe support 2242/2280 length M.2 E Key: PCI-E 3.0 x1, support 2230 length


Drive Bays

Internal	2 Fixed 2.5" drive bays - one with bracket, one on base mount (1 fixed 2.5" drive bay when AOC area is occupied)


Management

Software	AMT NMI vPro Watch Dog
Power Configurations	ATX Power connector +12V DC Power Input
Fan	Fans with tachometer status monitoring


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)


Parts List - (Items Included)

	Part Number	Qty	Description

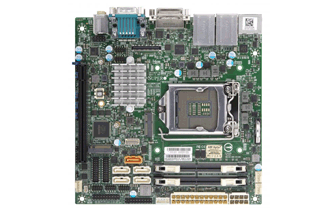

Motherboard / Chassis	MBD-X11SCV-Q CSE-E300	1 1	Super X11SCV-Q Motherboard Embedded Server BOX for Flex-ATX, Mini-ITX 1U height
Cable 1	CBL-0473L	1	SATA,INT,ROUND,ST-ST,21CM,30AWG
Cable 2	CBL-SAST-0886	1	SATA 15pin x2 to 4pin /P2.5,40CM,22AWG
FAN 1	FAN-0065L4	2	4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Power Supply	MCP-250-10128-0N	1	150W Lockable Power Adapter with US power cord
Parts	MCP-260-10109-0B	1	CSE-101F, E300 Rear I/O for X11SCV-Q
Heatsink / Retention	SNK-P0073A4	1	1U Enhanced Performance Active CPU Heat Sink for Intel Socket H Series Motherboards
