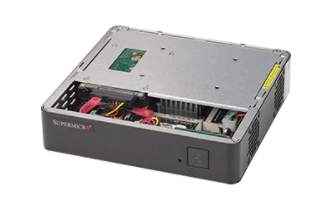

    SYS-E200-9B

    Print
    Intergrated Board

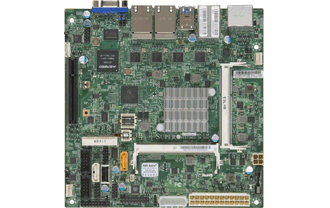

    X11SBA-LN4F
    Views Angled ViewsFront ViewsRear Views

    Key Features

    • - Compact Embedded Mini ITX Box
      - Long Life Cycle Support
      - Digital Signage, Indoor Kiosk
    • • Intel® Pentium® Processor N3700,
      Quad-Core (6W, 4C); Socket
      FCBGA 1170
    • • System-on-Chip
    • • 1x 2.5" internal drive bay
    • • Up to 8GB 1600MHz DDR3 Non-ECC
      SO-DIMM in 2 socket
    • • 1x SuperDOM, 1x mSATA slot,
      1x TPM 1.2 header
    • • I/O ports: 4x GbE, 1x HDMI, 1x Display
      Port, 1x VGA, 1x serial port
    • • 1x IPMI 2.0 w/ dedicated Port & KVM
    • • 2x USB 3.0 & 2x USB 2.0 (rear) ports
    • • 1x 4cm high performance PWM fan
    • • 60W DC power adapter
    Specifications
    Product SKUs
    SYS-E200-9B
    • SuperServer E200-9B (Black)

    Motherboard
    Super X11SBA-LN4F

    Processor/Cache
    CPU
    • Socket FCBGA1170
    • Intel® Pentium® Processor N3700
    • CPU TDP 6W
    • 1.6-2.4GHz, 2MB

    System Memory
    Memory Capacity
    • 2x 204-pin SO-DIMM slot
    • Supports up to 8GB non-ECC DDR3 1600MHz memory (Dual Channel)
    Memory Type
    • 1600/1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs
    DIMM Sizes
    • 4GB, 2GB
    Memory Voltage
    • 1.35 V

    On-Board Devices
    Chipset
    • Intel® N3700 System on Chip
    SATA
    • SATA 3.0 (6Gbps) from Intel® SoC
    Network Controllers
    • Quad Gigabit Ethernet LAN ports with Intel® I210-AT
    • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    Graphics
    • Aspeed AST2400 BMC

    Input / Output
    Serial ATA
    • 2x SATA3 (6Gbps) ports
    LAN
    • 4x RJ45 Gigabit Ethernet LAN ports
    • 1x RJ45 Dedicated IPMI LAN port
    USB
    • 2x USB 3.0 ports (rear)
    • 2x USB 2.0 ports (rear)
    Display
    • 1x Display Port, 1x HDMI, 1x VGA (Two Independent Displays)
    DOM
    • 1x SuperDOM (Disk on Module) port with built-in power
    Others
    • TPM 1.2 header
    Chassis
    Form Factor
    • Mini-ITX
    Model
    • CSE-101S

    Dimensions
    Width
    • 7.68" (195mm) / 15" (381mm) - pkg.
    Height
    • 1.75" (44.5mm) / 10.87" (276mm) - pkg.
    Depth
    • 7.68" (195mm) / 5.59" (142mm) - pkg.
    Weight
    • Gross Weight: 5.5 lbs (2.49 kg)
    • Net Weight: 2.45 lbs (1.11 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED (Hard drive activity LED)

    Expansion Slots
    Mini-PCIe
    • 1x mini-PCIe slot with mSATA support

    Drive Bays
    Internal
    • 1x 2.5" internal drive tray

    System Cooling
    Fans
    • 1x 4cm high performance PWM fan; support up to 2 chassis fans

    Power Supply
    60W DC Power Adapter

    System BIOS
    BIOS Type
    • 128Mb SPI Flash EEPROM with AMI UEFI BIOS
    BIOS Features
    • Plug and Play (PnP)
    • ACPI 5.0
    • UEFI 2.3.1
    • SMBIOS 2.7
    • DMI 2.3
    • USB Keyboard support
    • RTC (Real time Clock) Wakeup
    • 3TB HDD Support

    Management
    Software
    Power Configurations
    • ACPI / ACPM Power Management
    • Main Switch Override Mechanism
    • Keyboard Wakeup from Soft-Off
    • Power-on mode for AC power recovery
    Fan
    • Fans with tachometer status monitoring
    • Status monitor for speed control
    • Low noise fan speed control
    • Pulse Width Modulated (PWM) fan connectors

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:

         0°C to 40°C (32°F to 104°F)
    • Non-operating Temperature:

         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:

         10% to 85% (non-condensing)
    • Non-operating Relative Humidity:

         10% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)
      Part Number Qty Description
    Motherboard / Chassis MBD-X11SBA-LN4F

    CSE-101S     		1

    1    		 Super X11SBA-LN4F Motherboard

    Embedded Mini-ITX Chassis
    Power Adapter MCP-250-10117-0N 1 60W DC power adapter
    Optional Parts List
      Part Number Qty Description
    Dual System Tray MCP-290-10108-0B - CSE-101 series 1U Dual System Tray Bracket
    FAN kit MCP-320-10102-0N - Additional side fan kit (FAN-0170L4) for SC101S
    Hide Parts List
