SSG-5049P-E1CTR36L

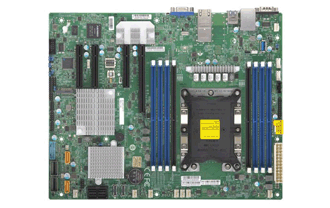

Intergrated Board

Views Angled Views Top Views Front Views Rear Views

Key Features

- Connectivity/Storage Compute Nodes
- Database Processing Appliance Platform
1. Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake)‡
2. 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM††
3. 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8,
1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
4. 2x 10GBase-T with Intel® X557
5. 36 Hot-swap 3.5" SAS/SATA drive bays with SES3 (24 front + 12 rear); 4 Internal fixed 2.5" drive bays
2 Hot-swap 2.5" NVMe/SATA (rear, optional)
6. SAS3 via Broadcom 3008 controller
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 7 High-performance 8cm PWM fans
9. 1200W Redundant Power Supplies Titanium Level (96%)

Specifications

Product SKUs
SSG-5049P-E1CTR36L
SuperStorage 5049P-E1CTR36L (Black)

Motherboard

Super X11SPH-nCTF

Processor/Cache

CPU
Single Socket P (LGA 3647)

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors^‡

Support CPU TDP 70-205W*

Cores
Up to 28 Cores

Note * Certain high frequency optimized CPU are not supported, such as Intel Gold 6250 and 6256. Please contact Supermicro Technical Support for additional information.
Note ^‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory

Memory Capacity
8 DIMM slots

Up to 2TB 3DS ECC DDR4-2933MHz^† RDIMM/LRDIMM

Supports Intel® Optane™ DCPMM^††

Memory Type
2933^†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note ^† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
^†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices

Chipset
Intel® C622 chipset

SATA
SATA3 (6Gbps) via C622 controller

RAID 0, 1, 5, 10 support

SAS
SAS3 (12Gbps) via Broadcom 3008

SW RAID 0, 1, 10

Network Controllers
Dual LAN with 10GBase-T with Intel® X722 + X557

IPMI
Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics
ASPEED AST2500 BMC

Input / Output

LAN
2 RJ45 10GBase-T LAN ports

1 RJ45 Dedicated IPMI LAN port

USB
5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)

8 USB 2.0 ports (2 rear + 6 headers)

VGA
1x VGA port

Serial Port / Header
2 COM Ports (1 rear, 1 header)

System BIOS

BIOS Type
AMI UEFI

Management

Software
Intel® Node Manager

IPMI 2.0

KVM with dedicated LAN

NMI

SPM, SUM

SuperDoctor® 5

Watch Dog

Power Configurations
ACPI Power Management

PC Health Monitoring

CPU
Monitors for CPU Cores, Chipset Voltages, Memory.

4+1 Phase-switching voltage regulator

FAN
Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature
Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis
Form Factor
4U Rackmount

Model
CSE-847BTS-R1K23LPBP

Dimensions and Weight
Width
17.2" (437mm)

Height
7" (178mm)

Depth
27.5" (699mm)

Package
17.5" (H) x 27" (W) x 39.5" (D)

Weight
Gross Weight: 102.5 lbs (46.4 kg)

Net Weight: 65.5 lbs (29.7 kg)

Available Colors
Black

Front Panel
Buttons
Power On/Off button

System Reset button

LEDs
Power status LED

Hard drive activity LED

Network activity LEDs

System Information LED

Power fail LED

Expansion Slots

PCI-Express
1 PCI-E 3.0 x16

1 PCI-E 3.0 x8

1 PCI-E 3.0 x8

1 PCI-E 3.0 x4 (in x8)

M.2
1x M.2 Interface: PCI-E 3.0 x4 and SATA

Form Factor: 2280

Key: M-Key

Double Height Connector

Drive Bays / Storage
Hot-swap
36 Hot-swap 3.5" SAS/SATA drive bays
(24 front + 12 rear drive bays)

Fixed
4 Internal fixed 2.5" drive bays

Optional
2 Hot-swap 2.5" NVMe/SATA drive bays (rear)

M.2
M.2 Interface: PCI-E 3.0 x4 and SATA

Form Factor: 2280

Key: M-Key

Double Height Connector

Backplane
SAS3 / SATA3 single expander per backplane

System Cooling
Fans
7 High-performance 80mm cooling fans

Power Supply (76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power
1000W/1200W

Dimension
(W x H x L)
76 x 40 x 336 mm

Input
100-127Vac / 15-12A / 50-60Hz

200-240Vac / 8.5-7A / 50-60Hz

200-240Vdc / 8.5-7A (for CCC only)

+12V
Max: 83A / Min: 0A (100-127Vac)

Max: 100A / Min: 0A (200-240Vac)

Max: 100A / Min: 0A (200-240Vdc)

+5Vsb
Max: 4A / Min: 0A

Output Type
19 Pairs Gold Finger Connector

Certification Titanium Level
[ Test Report ]

Operating Environment
RoHS
RoHS Compliant

Environmental Spec.
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity:
   8% to 90% (non-condensing)

Non-operating Relative Humidity:
   5% to 95% (non-condensing)

Parts List

Parts List - (Items Included)

Part Number
Qty
Description

Motherboard / Chassis MBD-X11SPH-nCTF
CSE-847BTS-R1K23LPBP 1
1 Super X11SPH-nCTF Motherboard
4U Chassis
Add-on Card / Module AOM-SAS3-8I8E-LP 1 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket,HF,RoHS/REACH
Backplane BPN-SAS3-826EL1 1 12-port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD
Backplane BPN-SAS3-846EL1 1 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-0296L 4 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Cable 2 CBL-SAST-0531-01 6 MINI SAS HD,12G,INT,80CM,30AWG
Parts MCP-260-00109-0N 1 Standard I/O Shield for X11SPM-TF with EMI Gasket
Manual MNL-1992-QRG 1 5049P-E1CR36L Quick Reference Guide
Heatsink / Retention SNK-P0068PS 1 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
FAN 1 FAN-0158L4 7 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH
Optional Parts List
Part Number Qty Description
Drive Trays MCP-220-84701-0N - SC847 Internal drive tray for one 3.5"
3.5" to 2.5" Converter Tray MCP-220-00043-0N - Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
Peripheral Drives MCP-220-82616-0N 1 Rear Window 12G 2x 2.5" HDD Module
Storage Controller card & cable AOC-S3108L-H8iR - Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
CacheVault BTR-TFM8G-LSICVM02 &
BKT-BBU-BRACKET-05 - CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCI-E location
Network Card(s) AOC-SGP-i2
AOC-SGP-i4
AOC-STGN-i2S
AOC-STGF-i2S
AOC-STG-B4S
AOC-STGS-i2T
AOC-S25G-b2S
AOC-S25G-m2S -
-
-
-
-
-
-
- Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414
Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
NVMe Optional Parts
(Complete System with NVMe Drives) MCP-220-82619-0N
CBL-SAST-0819 1
2 Rear hot-swap 2.5" x2 NVMe drive kit
OCuLink v1.0 INT PCIe NVMe SSD, 65CM, 34AWG
Front Bezels MCP-210-84601-0B 1 Black front bezels
TPM security module AOM-TPM-9670V
AOM-TPM-9671V 1
1 TPM 2.0, vertical form factor
TPM 1.2, vertical form factor
Global Services & Support OS4HR3/2/1
OSNBD3/2/1 -
- 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List


Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-X11SPH-nCTF CSE-847BTS-R1K23LPBP	1 1	Super X11SPH-nCTF Motherboard 4U Chassis
Add-on Card / Module	AOM-SAS3-8I8E-LP	1	8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket,HF,RoHS/REACH
Backplane	BPN-SAS3-826EL1	1	12-port 2U SAS3 12Gbps single-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD
Backplane	BPN-SAS3-846EL1	1	24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
Cable 1	CBL-0296L	4	4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Cable 2	CBL-SAST-0531-01	6	MINI SAS HD,12G,INT,80CM,30AWG
Parts	MCP-260-00109-0N	1	Standard I/O Shield for X11SPM-TF with EMI Gasket
Manual	MNL-1992-QRG	1	5049P-E1CR36L Quick Reference Guide
Heatsink / Retention	SNK-P0068PS	1	2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply	PWS-1K23A-1R	2	AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
FAN 1	FAN-0158L4	7	80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH


Optional Parts List

	Part Number	Qty	Description
Drive Trays	MCP-220-84701-0N	-	SC847 Internal drive tray for one 3.5"
3.5" to 2.5" Converter Tray	MCP-220-00043-0N	-	Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
Peripheral Drives	MCP-220-82616-0N	1	Rear Window 12G 2x 2.5" HDD Module
Storage Controller card & cable	AOC-S3108L-H8iR	-	Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
CacheVault	BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05	-	CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCI-E location
Network Card(s)	AOC-SGP-i2 AOC-SGP-i4 AOC-STGN-i2S AOC-STGF-i2S AOC-STG-B4S AOC-STGS-i2T AOC-S25G-b2S AOC-S25G-m2S	- - - - - - - -	Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414 Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
NVMe Optional Parts (Complete System with NVMe Drives)	MCP-220-82619-0N CBL-SAST-0819	1 2	Rear hot-swap 2.5" x2 NVMe drive kit OCuLink v1.0 INT PCIe NVMe SSD, 65CM, 34AWG
Front Bezels	MCP-210-84601-0B	1	Black front bezels
TPM security module	AOM-TPM-9670V AOM-TPM-9671V	1 1	TPM 2.0, vertical form factor TPM 1.2, vertical form factor
Global Services & Support	OS4HR3/2/1 OSNBD3/2/1	- -	3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service
Software	SFT-OOB-LIC	1	OOB Management Package (per node license)
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
Hide Parts List
