    SSG-6049P-E1CR24L

    Print
    Intergrated Board

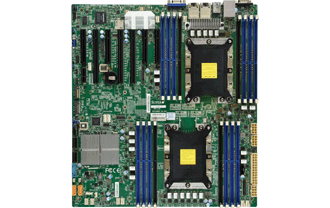

    X11DPH-T

    Key Features

    • - Corporate Database
      - Database Processing & Storage
      - Enterprise Server
      - HPC, Data Center
      - iSCSI SAN
    • 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
    • 2. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
      Supports Intel® Optane™ DCPMM††
    • 3. 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 2 & 3 occupied by controller and JBOD expansion port)
    • 4. 24 Hot-swap 3.5" SAS3/SATA3 drive bays; 2 hot-swap 2.5" SATA3 drive bays (rear), 2 M.2 NVMe, Expander based backplane
    • 5. Broadcom 3008 SAS3 AOC
    • 6. 2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557
    • 7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
    • 8. 3 Hot-swap 8cm redundant PWM cooling fans, 2 hot-swap 8cm rear exhaust PWM fans PWM fans
    • 9. 1200W Redundant Power Supplies Titanium Level (96%)
    Specifications
    Product SKUs
    SSG-6049P-E1CR24L
    • SuperStorage 6049P-E1CR24L (Black)

    Motherboard
    Super X11DPH-T

    Processor/Cache
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
      3 UPI up to 10.4GT/s
    • Support CPU TDP 70-205W
    Cores
    • Up to 28 Cores
    Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.

    On-Board Devices
    Chipset
    • Intel® C622 chipset
    SAS
    • SAS3 (12Gbps) via Broadcom 3008 AOC
    • Broadcom 3008 controller
    SATA
    • SATA3 (6Gbps) with RAID 0, 1, 5, 10
    Network Controllers
    • Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC

    Input / Output
    LAN
    • 2 RJ45 10GBase-T LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 4 USB 3.0 ports (rear)
    • 1 Type A
    VGA
    • 1 VGA port
    Serial Port / Header
    • 1 Fast UART 16550 port / 1 Header

    System BIOS
    BIOS Type
    • 256Mb AMI UEFI

    Management
    Software

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSE-846BE1C-R1K23B

    Dimensions
    Width
    • 17.2" (437mm)
    Height
    • 7" (178mm)
    Depth
    • 26.5" (673mm)
    Weight
    • Gross Weight: 92 lbs (41.7 kg)
    • Net Weight: 55 lbs (24.9 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power status LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    • Power fail LED

    Expansion Slots
    PCI-Express
    • 3 PCI-E 3.0 x16 slot
    • 4 PCI-E 3.0 x8 slots
    • Slot 2 & 3 occupied by controller and JBOD Expansion Port

    Drive Bays
    Hot-swap
    • 24 Hot-swap 3.5" SAS3/SATA3 drive bays
    Optional
    • 2 Optional Onboard NVMe M.2

    Backplane
    SAS3/SATA3 single expander per backplane

    System Cooling
    Fans
    • 3 Hot-swap 8cm redundant PWM cooling fans
    • 2 Hot-swap 8cm rear exhaust PWM fans
    • Redundant cooling

    Power Supply (76mm Width)
    1200W Redundant Power Supplies with PMBus
    Total Output Power
    • 1000W/1200W
    Dimension
    (W x H x L)
    • 76 x 40 x 336 mm
    Input
    • 100-127Vac / 15-12A / 50-60Hz
    • 200-240Vac / 8.5-7A / 50-60Hz
    • 200-240Vdc / 8.5-7A (for CCC only)
    +12V
    • Max: 83A / Min: 0A (100-127Vac)
    • Max: 100A / Min: 0A (200-240Vac)
    • Max: 100A / Min: 0A (200-240Vdc)
    +5Vsb
    • Max: 4A / Min: 0A
    Output Type
    • 19 Pairs Gold Finger Connector
    Certification Platinum Level Certified95%+ Titanium Level
      [ Test Report ]

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11DPH-T
    CSE-846BE1C-R1K23B     		1
    1    		 Super X11DPH-T Motherboard
    4U Chassis
    Add On Card AOC-S3008L-L8E-O-P 1 LSI 3008 based SAS3 HBA, 12Gb, 8 internal ports, 122HDD, Gen3 x8 Standard Low Profile
    Add On Module AOM-SAS3-8I8E-LP 1 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket
    Add-on Card / Module AOM-SAS3-8I8E 1 8-port Mini SAS HD Int-to-Ext cable adapter w/FH bracket,HF,RoHS/REACH
    Backplane BPN-SAS3-846EL1 1 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
    Cable 1 CBL-0099 1 Power extension cable; one HDD to two HDD and two FDD. 35/25/12cm. 22AWG
    Cable 2 CBL-0296L 3 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
    Cable 3 CBL-PWEX-0645 2 big 4 pin male to big 4 pin female, power extension 15cm, 20AWG,RoHS/REACH
    Cable 4 CBL-SAST-0531-01 4 MINI SAS HD,12G,INT,80CM,30AWG
    Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
    Heatsink / Retention SNK-P0068PS 2 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    HDD kit MCP-220-84606-0N 2 Rear dual 2.5 hot swap HDD kit for SC846B
    * Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
    * Power Distributor PDB-PT846-2824 1 PDB with 23pairs input connector support SC846B
    * Cable 5 CBL-0071L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG
    * Cable 6 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
    * Cable 7 CBL-0217L 1 CBL,CNTL PANEL CONVERTER,FOR SC826/846,FFC,16PIN,22CM
    * FAN 1 FAN-0125L4 2 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
    * FAN 2 FAN-0185L4 3 80x80x38 mm, 10.5K RPM, Hot-swappable Middle Cooling Fan for X11 Generation SC846B Chassis
    * Drive Tray(s) MCP-220-00075-0B 24 Black gen 5.5 hot-swap 3.5"; HDD tray
    * Rear Window MCP-240-84602-0N 1 846B rear window which support 2 X 2.5"; HDD module and DVD
    * Front Panel MCP-280-82601-0N 1 Front control board adapter (TB826) for SC216,826,936,846
    * Rail Set MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2"; W
    * Power Supply MCP-290-84604-0N 1 SC846 PDB Cover
    * Air Shroud MCP-310-49003-0N 1 SC846 Intel DP X9, X8 PC air shroud 1368x13/12x13MB
    * Rail Set MCP-410-00007-0N 1 Rail screw bag
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List
      Part Number Qty Description
    Converter Trays MCP-220-00118-0B
    MCP-220-00043-0N    		 -
    -    		 Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray
    Black hot-swap gen 4 3.5 to 2.5 HDD tray
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1    		 -
    -    		 3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
    Hide Parts List
