    SSG-2029P-DN2R24L

    Print
    Intergrated Board

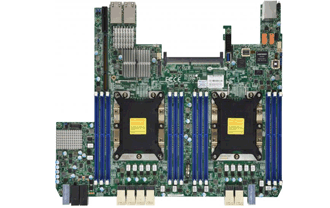

    X11DSN-TS
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
    • 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
    • 2. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
      Supports Intel® Optane™ DCPMM††
    • 3. 24 U.2 Hot-swap dual-port NVMe drive bays
    • 4. 2 PCI-E 3.0 x16 HHHL slots,
      1 PCI-E 3.0 x16 SIOM
    • 5. Dedicated node to node connectivity featuring high performance PLX NTB
      PCI-E 3.0 x8 and IPMI for robust node fail-over support
    • 6. Dual port 10GBase-T (Intel® X557-AT2),
      Dual 10G private ethernet between controller nodes
    • 7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
    • 8. 5x 8cm high-performance PWM fans
    • 9. 2000W Redundant Power Supplies Titanium Level (96%)
    Specifications
    Product SKUs
    SSG-2029P-DN2R24L
    • SuperStorage 2029P-DN2R24L (Black)

    Motherboard (Two per System)
    Super X11DSN-TS

    Processor/Cache (per Node)
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
      3 UPI up to 10.4GT/s
    • Support CPU TDP 70-165W
    Cores
    • Up to 28 Cores
    Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

    System Memory (per Node)
    Memory Capacity
    • 12 DIMM slots
    • Up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.

    On-Board Devices (per Node)
    Chipset
    • Intel® C624 series chipset
    SATA
    • SATA3 (6Gbps); RAID 0, 1
    Network Controllers
    • Intel® X557-AT2 Dual Port 10GBase-T
    • Dual 10G private Ethernet between controller nodes
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2500 BMC

    Input / Output (per Node)
    LAN
    • 2 RJ45 10GBase-T LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    • 1 Type A
    Video
    • 1 VGA D-Sub Connector port
    Serial Port / Header
    • 2 COM Ports (1 rear, 1 header)

    System BIOS
    BIOS Type
    • AMI UEFI

    Management
    Software

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-227TS-R2K05P3

    Dimensions
    Width
    • 17.2" (437mm)
    Height
    • 3.5" (89mm)
    Depth
    • 25.6" (650mm)
    Weight
    • Gross Weight: 67 lbs (30.4 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power status LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    • Power fail LED

    Expansion Slots (per Node)
    PCI-Express
    • 2 PCI-E 3.0 x16 HHHL slots
    • 1 PCI-E 3.0 x16 SIOM
    M.2
    • M.2 Interface: 1 PCI-E 3.0 x4
    • Form Factor: 2242/2260/2280

    Drive Bays
    Hot-swap
    • 24 U.2 Hot-swap dual-port NVMe drive bays

    Backplane
    2U 24-Port SBB Backplane for 24x 2.5" Dual-Port NVMe SSD

    System Cooling
    Fans
    • 5x 8cm high-performance PWM fans

    Power Supply
    2000W Redundant Power Supplies with PMBus
    Total Output Power
    • 1000W: 100 – 120Vac
    • 1800W: 200 – 220Vac
    • 1980W: 220 – 230Vac
    • 2000W: 230 – 240Vac
    • 2000W: 200 – 240Vac (UL/CUL only)
    Dimension
    (W x H x L)
    • 73.5 x 40 x 265 mm
    Input
    • 100-120Vac / 12.5-9.5A / 50-60Hz
    • 200-220Vac / 10-9.5A / 50-60Hz
    • 220-230Vac / 10-9.8A / 50-60Hz
    • 230-240Vac / 10-9.8A / 50-60Hz
    • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
    +12V
    • Max: 83.3A / Min: 0A (100-120Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 166.7A / Min: 0A (230-240Vac)
    • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
    12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification Titanium Level96%  Titanium Level
      [ Test Report ]

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11DSN-TS
    CSE-227TS-R2K05P3     		2
    1    		 Super X11DSN-TS Motherboard
    2U Chassis
    Backplane BPN-NVME3-227NB 1 2U 24-Port SBB Backplane for 24x2.5
    Backplane BPN-NVME3-227NL 2 2U Gen3 PCIe Switch Daughter Board for Dual Port NVMe SSD (Note: This daughter board is integrated to BPN-NVMe3-227NB)
    Backplane BPN-NVMe3-227SSB-2 1 227S and 227 SBB Series NVMe Platform Mid-plane for power distribution, PCIe pass-through and NTB link with PLX
    Cable 1 CBL-SAST-0819 8 OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH
    Parts MCP-110-00015-0N 8 Pan head screw, #6-32 x 6L
    Riser Card RSC-X-66-C 2 1U LHS Passive Storage RSC w/ 2 PCI-E x16 slots,HF RoHS
    Heatsink / Retention SNK-P0067PS 4 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Power Supply PWS-2K05A-1R 2 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
    FAN 1 FAN-0163L4 4 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
    FAN 2 FAN-0168L4 5 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay)
    Optional Parts List
      Part Number Qty Description
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1    		 -
    -    		 3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
    Hide Parts List
