SSG-6019P-ACR12L+
Print

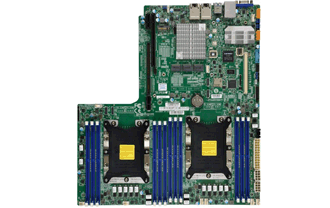

Intergrated Board
Key Features
- - High Density Storage
- Object Storage 1U
- Scale-out Storage
- Ceph / Hadoop
- Big Data Analytics
- 1. Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
- 2. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM††
- 3. 3 PCI-E 3.0 x16 slots,
1 PCI-E 3.0 x4 NVMe M.2 slot
- 4. 12 Hot-swap 3.5" SAS3/SATA3, 4 Hot-swap 2.5" 7mm NVMe/SATA drive bays
- 5. 2x 10GBase-T ports via Intel C622
- 6. IPMI 2.0 + KVM with Dedicated LAN
- 7. 1 VGA, 4 USB 3.0 (rear)
- 8. Internal Cable Arm
- 9. 800W Redundant Power Supplies Platinum Level Certified
Specifications
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Parts List
 |
|||
| Parts List - (Items Included) | |||
| |
Part Number |
Qty |
Description |
| Motherboard / Chassis |
MBD-X11DDW-NT CSE-802TS-R804WBP |
1 1 |
Super X11DDW-NT Motherboard 1U Chassis |
| Add-on Card / Module | AOM-S3216-L-2-P | 1 | SAS 16-port mezzanine controller based on Broadcom 3216 IOC. |
| Backplane | BPN-NVME3-802N-S4 | 1 | 4-Port Hybrid Backplane Supports 4 x 2.5 |
| Backplane | BPN-SAS3-802A-2 | 3 | 4-Port Backplane Supports 4 x 3.5" SAS/SATA HDD,HF,RoHS |
| Cable 1 | CBL-0174L | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH |
| Cable 2 | CBL-CDAT-0930 | 1 | CBL,7PIN TO 7PIN,P1.5/1.0mm,17.2CM,26/28AWG,RoHS |
| Cable 3 | CBL-PWCD-0174-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,RoHS/REACH |
| Cable 4 | CBL-PWEX-1056 | 1 | BPN PWR,2P/P3.0 to 3P/P3.0, 12V, 60CM,18AWG, 6A/pin, -20~80C, RoHS |
| Cable 5 | CBL-SAST-0830 | 4 | OcuLink v 1.0,INT,PCIe NVMe SSD,Passive Latch, 80 |
| Cable 6 | CBL-SAST-0831 | 1 | OcuLink v 1.0,INT,PCIe NVMe SSD, Passive Latch, to MiniSAS 95CM,32AWG |
| Cable 7 | CBL-SAST-1028 | 1 | SLIMLINE SAS, INT,Passive Latch,91.9CM, power x4, 17/19.8CM |
| Front Panel | FPB-802A-LED12 | 1 | SC802 front HDD LED board,RoHS |
| Parts | MCP-150-00015-0B | 2 | Rubber pad, 3.0mm H, 10x10mm |
| Riser Card | RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots |
| Riser Card | RSC-WR-6 | 1 | 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS |
| Heatsink / Retention | SNK-P0067PS | 2 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
| * Power Supply | PWS-804P-1R | 2 | 1U 800W 100-240VAC/50-60Hz, and DC240V input |
| * Power Distributor | PDB-PT802-8824 | 1 | 1U Power Distributor Board for SC802 support up to 800W.,RoH |
Notes:
|
|||
|
|||
| Optional Parts List | |||
| Part Number | Qty | Description | |
| Converter Trays | MCP-220-80203-0N | - | 3.5" to 2.5" converter tray for SC802 chassis |
| Network Card(s) |
AOC-SGP-i2 AOC-SGP-i4 AOC-SG-i2 AOC-SG-i4 AOC-STG-b4S AOC-STGN-i2S AOC-STGN-i1S AOC-STG-i2T AOC-STG-i2 |
- - - - - - - - - |
Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2 Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350 Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB Standard LP, 4x GbE RJ45, PCI-E x4, Intel® 82576EB Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel® 82599ES Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540 Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB |
| Global Services & Support |
OS4HR3/2/1 OSNBD3/2/1 |
- - |
3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service |
| Software | SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
|
|||
