    SSG-5049P-E1CR45H

    Print

    Key Features

    • - Backup Storage, Cold Storage
      - Database Applications
      - Data Warehousing, Archiving

    • 1. Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake)‡
    • 2. 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
    • 3. 2 PCI-E 3.0 x8 (in x16),
      3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
      1 PCI-E 3.0 x8 (occupied by HBA)
    • 4. 2 GbE LAN ports via Intel i210
    • 5. 45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5" SATA drive bays; optional 2 rear Hot-swap 2.5" SATA3/NVMe
    • 6. Broadcom 3108 SAS3, HW RAID (AOC-S3108L-H8IR-P )
    • 7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
    • 8. 5 Hot-swap 8cm redundant PWM fans
    • 9. 1600W Redundant Power Supplies Platinum Level
    Specifications
    Product SKUs
    SSG-5049P-E1CR45H
    • SuperStorage 5049P-E1CR45H (Black)

    Motherboard

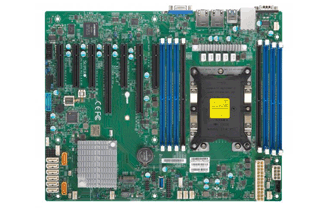

    Super X11SPL-F

    Processor/Cache
    CPU
    • Single Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
    • Support CPU TDP up to 165W
    Cores
    • Up to 28 Cores
    Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

    Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.

    System Memory
    Memory Capacity
    • 8 DIMM slots
    • Up to 2TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
    Memory Type
    • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

    On-Board Devices
    Chipset
    • Intel® C621 chipset
    SATA
    • SATA3 (6Gbps) via Intel® C621 controller
    • RAID 0, 1, 5, 10 support
    SAS
    • Broadcom 3108 SAS3, HW RAID
      (AOC-S3108L-H8IR-P)
    Network Controllers
    • Dual 1GbE LAN ports with Intel® I210
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC

    Input / Output
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
    • 8 USB 2.0 ports (2 rear + 6 headers)
    VGA
    • 1 VGA port
    Serial Port / Header
    • 2 COM Ports (1 rear, 1 header)

    System BIOS
    BIOS Type
    • AMI UEFI

    Management
    Software
    Power Configurations
    • ACPI Power Management

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSE-946LTS-R1K66P1

    Dimensions and Weight
    Width
    • 17.2" (437mm)
    Height
    • 7" (178mm)
    Depth
    • 26" (660mm)
    Weight
    • Gross Weight: 120 lbs (54.43 kg)
    • Net Weight: 85 lbs (38.56 kg)

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power status LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    • Power fail LED

    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x8 (in x16)
    • 3 PCI-E 3.0 x8
    • 1 PCI-E 3.0 x4 (in x8)
    • 1 PCI-E 3.0 x8 (occupied by HBA card)
    M.2
    • 1x M.2 Interface: PCI-E 3.0 x4 and SATA
    • Form Factor: 2280, 22110
    • Key: M-Key
    • Double Height Connector

    Drive Bays / Storage
    Hot-swap
    • 45 Hot-swap 3.5" SAS3/SATA3 drive bays
    • 2 Rear Hot-swap 2.5" SATA3 drive bays
    Optional
    • 2 Hot-swap 2.5" NVMe/SATA drive bays (rear)

    Backplane
    SAS3 / SATA3 single expander per backplane

    System Cooling
    Fans
    • 5 High-performance 80mm cooling fans

    Power Supply
    1600W 1U Redundant Power Supplies with PMBus
    Total Output Power
    • 1000W: 100 – 127Vac
    • 1600W: 200 – 240Vac
    Dimension
    (W x H x L)
    • 73.5 x 40 x 265 mm
    Input
    • 100-127Vac / 12.9A Max / 50-60Hz
    • 200-240Vac / 9.5A Max / 50-60Hz
    +12V
    • Max: 82A / Min: 0.1A (100-127Vac)
    • Max: 132A / Min: 0.1A (200-240Vac)
    +5Vsb
    • Max: 2A / Min: 0.2A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification Platinum Level Certified94%+  Platinum Level
      [ Test Report ]

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    Part Number
    Qty
    Description
    Motherboard / Chassis MBD-X11SPL-F
    CSE-946LTS-R1K66P1
    1
    1
    Super X11SPL-F Motherboard
    4U Chassis
    Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
    Backplane BPN-SAS3-946LEL1 1 45-port 4U SC946L Top-load SAS3 12Gbps expander backplane, support up to 45x 3.5-inch SAS3/SATA3 HDD/SSD
    Cable 1 CBL-CDAT-0674 1 4 Pin to 4 Pin I2C cable, 30cm, 26AWG, 4 wires, pinout 1-1, for vpp header(jnvi2c1),RoHS/REACH
    Cable 2 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
    Cable 3 CBL-PWEX-0863 1 Powerlug to 5.7 Radsok, yel 12AWG, 32cm for SC946S
    Cable 4 CBL-PWEX-1024 1 Powerlug to 5.7 Radsok, black 12AWG, 45cm,RoHS
    Cable 5 CBL-SAST-0834 2 SLIMLINE SAS to MiniSAS HD, INT, 50CM, 32AWG
    Heatsink / Retention SNK-P0068PS 1 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Power Supply PWS-1K66P-1R 2 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF
    FAN 1 FAN-0184L4 5 80x80x38 mm, 14.4K RPM, Rear Exhaust Fan for SC946S Chassis (60-bay)
    Add-on Card AOC-S3108L-H8IR 1 LSI 3108 based SAS3 RAID, 12Gb, 8 internal ports, 240HDD - RAID 0,1,10,5,6,50,60, Gen3 x8 Standard Low Profile
    Optional Parts List
      Part Number Qty Description
    Peripheral Drives MCP-220-82616-0N 1 Rear hot-swap 2x 2.5" SATA drive kit
    CacheVault BTR-CV3108-U1 1 Broadcom 3108 CacheVault kit
    Network Card(s) AOC-SGP-i2
    AOC-SGP-i4
    AOC-STGN-i2S
    AOC-STGF-i2S
    AOC-STG-B4S
    AOC-STGS-i2T
    AOC-S25G-b2S
    AOC-S25G-m2S
    -
    -
    -
    -
    -
    -
    -
    -
    Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
    Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
    Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
    NVMe Optional Parts
    (Complete System with NVMe Drives)
    MCP-220-82619-0N
    CBL-SAST-0849
    AOC-SLG3-2E4
    CBL-0234L
    1
    2
    1
    1
    Rear hot-swap 2.5" x2 NVMe drive kit
    OCuLink v1.0 INT PCIe NVMe SSD, 65CM, 34AWG
    Standard LP, Dual-Port NVMe Internal Host Bus Adapter
    4-PIN Y-cable for HDD 15CM
    TPM security module AOM-TPM-9670V
    AOM-TPM-9671V
    1
    1
    TPM 2.0, vertical form factor
    TPM 1.2, vertical form factor
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1
    -
    -
    3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
