    SSG-6019P-ACR12L

    Print

    Key Features

    • - High Density Storage
      - Object Storage 1U
      - Scale-out Storage
      - Ceph / Hadoop
      - Big Data Analytics

    • 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
    • 2. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM††
    • 3. 2 PCI-E 3.0 x16 slots,
      1 PCI-E 3.0 x8 LP slot,
      1 PCI-E 3.0 x4 NVMe M.2 slot
    • 4. 12 Hot-swap 3.5" SAS3/SATA3, 4 Hot-swap 2.5" 7mm NVMe/SATA drive bays
    • 5. 2x 10GBase-T ports via Intel C622
    • 6. IPMI 2.0 + KVM with Dedicated LAN
    • 7. 1 VGA, 4 USB 3.0 (rear)
    • 8. Internal Cable Arm
    • 9. 600W Redundant Power Supplies Platinum Level Certified
    Specifications
    Product SKUs
    SSG-6019P-ACR12L
    • SuperStorage 6019P-ACR12L (Black)

    Motherboard

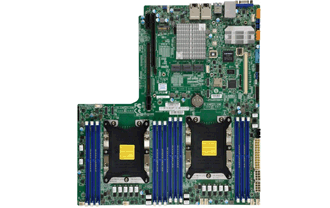

    Super X11DDW-NT

    Processor/Cache
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
      Dual UPI up to 10.4GT/s
    • Support CPU TDP up to 205W†††
    Cores
    • Up to 28 Cores
    Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

    ††† 205W CPU support for high performance up to 32°C. 75W-165W CPU support from 10°C ~ 35°C.

    System Memory
    Memory Capacity
    • 12 DIMM slots
    • Up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.

    On-Board Devices
    Chipset
    • Intel® C622 chipset
    SATA
    • SATA3 (6Gbps); RAID 0, 1, 5, 10
    SAS
    • Broadcom 3224 SAS3 IT mode controller
    Network Controllers
    • Dual LAN with 10GBase-T from Intel C622
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2500 BMC

    Input / Output
    LAN
    • 2 RJ45 10GBase-T LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 4 USB 3.0 ports (rear)
    • 2 USB 2.0 ports (front)
    Video
    • 1 VGA port
    TPM
    • 1 TPM Header

    System BIOS
    BIOS Type
    • UEFI 256Mb

    Management
    Software
    Power Configurations
    • ACPI / APM Power Management

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-802TS-R606WBP

    Dimensions and Weight
    Width
    • 17.6" (447mm)
    Height
    • 1.7" (43mm)
    Depth
    • 37.40" (950mm)**
    Weight
    • Net Weight: 65 lbs (29.5 kg)
    • Gross Weight: 80 lbs (36.3 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power status LED
    • HDD activity LED
    • Network activity LEDs

    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 slots
    • 1 PCI-E 3.0 x8 LP slot
    • 1 PCI-E 3.0 x4 NVMe M.2 slot

    Drive Bays
    Hot-swap
    • 12 Hot-swap 3.5" SAS3/SATA3 drive bays
    • 4 Hot-swap 2.5" 7mm NVMe/SATA drive bays

    System Cooling
    Fans
    • 6x 40x40x56mm 20.5K-17.6K RPM Counter-rotating fans

    Power Supply with Power Distributor
    600W Redundant Power Supplies with PMBus
    Total Output Power
    • 600W
    Dimension
    (W x H x L)
    • 54.5 x 40 x 220 mm
    Input
    • 100-240V, 50-60Hz, 7.5-3.5A
    +12V
    • Max: 50A / Min: 0.5A
    +5Vsb
    • Max: 3A / Min: 0A
    Output Type
    • Gold Finger Connector Mating with Molex 45984-4343
    Certification Platinum Level Certified    Platinum Certified
      [ Test Report ]

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    Part Number
    Qty
    Description
    Motherboard / Chassis MBD-X11DDW-NT
    CSE-802TS-R606WBP
    1
    1
    Super X11DDW-NT Motherboard
    1U Chassis
    Add-on Card / Module AOM-S3224-L-P 1 Mezzanine SAS 3224 I/O Controller,HF,RoHS
    Backplane BPN-NVME3-802N-S4 1 4-Port Hybrid Backplane Supports 4 x 2.5
    Backplane BPN-SAS3-802A 3 4-Port Backplane Supports 4x3.5
    Backplane BPN-SAS3-802A-1 3 4-Port Backplane Supports 4 x 3.5" SATA3/SAS3 HDD,HF,RoHS
    Cable 1 CBL-0174L 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH
    Cable 2 CBL-PWCD-0174-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,RoHS/REACH
    Cable 3 CBL-PWEX-1056 1 BPN PWR,2P/P3.0 to 3P/P3.0, 12V, 60CM,18AWG, 6A/pin, -20~80C, RoHS
    Cable 4 CBL-SAST-0830 4 OcuLink v 1.0,INT,PCIe NVMe SSD,Passive Latch, 80
    Cable 5 CBL-SAST-0831 1 OcuLink v 1.0,INT,PCIe NVMe SSD, Passive Latch, to MiniSAS 95CM,32AWG
    Cable 6 CBL-SAST-1018 1 SLIMLINE SAS, INT,Passive Latch,166CM, 160CM, 154CM, power 160CM CABLE KIT
    Parts MCP-150-00015-0B 2 Rubber pad, 3.0mm H, 10x10mm
    Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
    Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
    Heatsink / Retention SNK-P0067PS 2 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    * Power Supply PWS-606P-1R 2 1U 600W Redundant Short Depth High Efficiency Power Supply
    * Power Distributor PDB-PT802-8824 1 1U Power Distributor Board for SC802 support up to 800W.,RoH
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List
      Part Number Qty Description
    Converter Trays MCP-220-80203-0N - 3.5" to 2.5" converter tray for SC802 chassis
    Network Card(s) AOC-SGP-i2
    AOC-SGP-i4
    AOC-SG-i2
    AOC-SG-i4
    AOC-STG-b4S
    AOC-STGN-i2S
    AOC-STGN-i1S
    AOC-STG-i2T
    AOC-STG-i2
    -
    -
    -
    -
    -
    -
    -
    -
    -
    Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2
    Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350
    Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB
    Standard LP, 4x GbE RJ45, PCI-E x4, Intel® 82576EB
    Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S
    Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES
    Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel® 82599ES
    Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540
    Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1
    -
    -
    3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
    Hide Parts List
