    SSG-6049P-E1CR45L

    Print

    Key Features

    • - Corporate Database
      - Database Processing & Storage
      - Enterprise Server
      - HPC, Data Center
      - iSCSI SAN

    • 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
    • 2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
      Supports Intel® Optane™ DCPMM††
    • 3. 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card support (flexible networking)
      Note: must bundle with Network card
    • 4. 45 Hot-swap 3.5" SAS3/SATA3 drive bays with SES3 (can support 2.5" without converter tray); 2 rear Hot-swap 2.5" drive bays;
      optional 6 NVMe bays
    • 5. Broadcom 3008 SAS3, IT mode
    • 6. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
    • 7. 5 Hot-swap 8cm rear exhaust PWM fans
    • 8. 1600W Redundant Power Supplies Platinum Level (94%)
    Specifications
    Product SKUs
    SSG-6049P-E1CR45L
    • SuperStorage 6049P-E1CR45L (Black)

    Motherboard

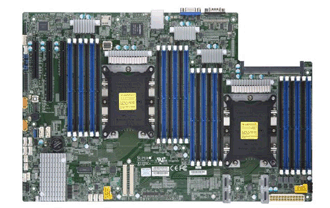

    Super X11DSC+

    Processor/Cache
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
      3 UPI up to 10.4GT/s
    • Support CPU TDP 70-205W
    Cores
    • Up to 28 Cores
    Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

    System Memory
    Memory Capacity
    • 24 DIMM slots
    • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.

    On-Board Devices
    Chipset
    • Intel® C621 chipset
    SAS
    • SAS3 (12Gbps) via Broadcom 3008 AOC; IT Mode
    SATA
    • SATA3 (6Gbps) with RAID 0, 1, 5, 10
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC

    Input / Output
    Serial ATA
    • 4 SATA3 (6Gbps) ports
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    • 1 Type A
    VGA
    • 1 VGA D-Sub connector port
    Serial Port / Header
    • 1 Fast UART 16550 port / 1 Header

    System BIOS
    BIOS Type
    • AMI UEFI

    Management
    Software

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSE-946LTS-R1K66P1

    Dimensions
    Width
    • 17.2" (437mm)
    Height
    • 7" (178mm)
    Depth
    • 26" (660mm)
    Package
    • 28" (W) x 23" (H) x 42.5" (D)
    Weight
    • Gross Weight: 120 lbs (54.43 kg)
    • Net Weight: 85 lbs (38.56 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power status LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    • Power fail LED

    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 slots
    • 1 PCI-E 3.0 x8 slot
    • 1 SIOM card support
      (must bundle with network card)

    Drive Bays
    Hot-swap
    • 45 Hot-swap 3.5" SAS3/SATA3 drive bays
    • 2 Rear Hot-swap 2.5" SATA drive bays
    Optional
    • 6 NVMe bays (optional)

    Backplane
    SAS3/SATA3 single expander per backplane

    System Cooling
    Fans
    • 5 Hot-swap 8cm rear exhaust PWM fans

    Power Supply
    1600W 1U Redundant Power Supplies with PMBus
    Total Output Power
    • 1000W: 100 – 127Vac
    • 1600W: 200 – 240Vac
    Dimension
    (W x H x L)
    • 73.5 x 40 x 265 mm
    Input
    • 100-127Vac / 12.9A Max / 50-60Hz
    • 200-240Vac / 9.5A Max / 50-60Hz
    +12V
    • Max: 82A / Min: 0.1A (100-127Vac)
    • Max: 132A / Min: 0.1A (200-240Vac)
    12V SB
    • Max: 2A / Min: 0.2A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification Platinum Level Certified94%+  Platinum Level
      [ Test Report ]

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)

    Compliance
    FCC, CE, RCM, VCCI, UL and CB
    Parts List
    Parts List - (Items Included)

    Part Number
    Qty
    Description
    Motherboard / Chassis MBD-X11DSC+
    CSE-946LTS-R1K66P1
    1
    1
    Super X11DSC+ Motherboard
    4U Chassis
    Rear Window MCP-240-94601-0N - SC946S rear window w/ 3x LP slots for X10DSC+
    Rear Window MCP-290-00132-0N - SIOM dummy cover for 226S/826S/946S
    Add-on Card / Module AOM-S3008M-L8-P 1 Mezz card with LSI 3008 controller
    Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
    Backplane BPN-SAS3-946LEL1 1 45-port 4U SC946L Top-load SAS3 12Gbps expander backplane, support up to 45x 3.5-inch SAS3/SATA3 HDD/SSD
    Cable 1 CBL-0481L 2 SATA,INT,ROUND,ST-ST,81CM,30AWG
    Cable 2 CBL-CDAT-0728 1 4 Pin to 4 Pin I2C cable, 65cm, 26AWG, 4 wires, pinout 1-1, for vpp header(jnvi2c1),RoHS/REACH
    Cable 3 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
    Cable 4 CBL-PWEX-0862 1 Powerlug to 5.7 Radsok, black 12AWG, 53cm for SC946S
    Cable 5 CBL-PWEX-0863 1 Powerlug to 5.7 Radsok, yel 12AWG, 32cm for SC946S
    Cable 6 CBL-PWEX-1024 1 Powerlug to 5.7 Radsok, black 12AWG, 45cm,RoHS
    Cable 7 CBL-SAST-1006-1 2 SLIMLINE SAS3, INT, 50CM 32AWG,RoHS
    Front Panel MCP-210-94602-0B 1 3.5"; LCD display kit for SC946S
    Heatsink / Retention SNK-P0068PS 2 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    * Power Supply PWS-1K66P-1R 2 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF
    * Power Distributor PDB-PT946S-824 1 standard 24pin output
    * Cable 8 CBL-0087 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
    * Cable 9 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
    * Cable 10 CBL-0303L 1 4 pin to 4 pin power cable, S-RA, 40CM. 20AWG
    * Cable 11 CBL-0459L 2 LATCH CLAMP,AC POWER CORD
    * Cable 12 CBL-0481L 2 SATA,INT,ROUND,ST-ST,81CM,30AWG
    * Cable 13 CBL-CDAT-0841 1 8 pin to 8 pin round SGPIO cable, 81cm, 28AWG, pinout 1-1
    * FAN 1 FAN-0184L4 5 80x80x38 mm, 14.4K RPM, Rear Exhaust Fan for SC946S Chassis (60-bay)
    * Front Panel FPB-FP829H 1 Front Control Board for SC829H chassis
    * Drive Tray(s) MCP-220-00117-0B 2 Black gen-3 hot-swap tool-less 2.5- inch HDD tray
    * Drive Tray(s) MCP-220-94601-0N 45 SC946ED 3.5\" / 2.5\" tool-less HDD tray
    * Rail Set MCP-290-00150-0N 1 Rail set, Auto-latch, quick/quick, default 4U 17.2
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List
      Part Number Qty Description
    NVME kit (Full kit needed) AOC-SLG3-2E4R
    CBL-CDAT-0674

    MCP-220-94607-0N

    CBL-SAST-0818
    CBL-SAST-0850

    1
    1

    1

    4
    2

    NVMe AOC
    4 Pin to 4 Pin I2C Cable, 30cm, 26AWG, 4 Wires, Pinout 1-1
    SC946S NVMe kits w/ cage, tray, cable, BPN (no NVMe cable)OCuLink v.91,INT,PCIe NVMe SSD, 55CM,34AWG
    55cm OCuLink to OCuLink Cable
    OCuLink to MiniSAS HD V.91, INT, PCIe NVMe SSD, 37CM, 15D15F7D, 34AWG
    SIOM Network Card(s) AOC-MGP-I2
    AOC-MGP-I4
    AOC-MTG-I2T
    AOC-MTG-I4T
    AOC-MTGN-I2S
    AOC-MTG-I4S
    -
    -
    -
    -
    -
    -
    SIOM 2-port GbE, Intel i350-AM2
    SIOM 4-port GbE, Intel i350-AM4
    SIOM 2-port 10GBase-T, Intel X550
    SIOM 4-port 10GBase-T, Intel X550
    SIOM 2-port 10G SFP+, Intel 82599ES
    SIOM 4-port 10G SFP+, Intel XL710
    Network Card(s) AOC-S25G-m2S
    AOC-STGN-i1S/i2S
    AOC-STG-i4S
    AOC-STG-i2T
    AOC-S100G-m2C
    More
    -
    -
    -
    -
    -
    -
    Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
    Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN
    Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710
    Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
    Standard 100G Mellanox ConnectX-4 EN based
    AOC Compatibility Matrix
    TPM security module
    (optional, not included)
    AOM-TPM-9670V
    AOM-TPM-9671V
    1
    1
    TPM module (Vertical) TPM 2.0
    TPM module (Vertical) TPM 1.2.
    Intel VROC RAID Key AOC-VROCINTMOD
    AOC-VROCSTNMOD
    AOC-VROCPREMOD
    1
    1
    1
    Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    Intel VROC Standard, RAID 0, 1, 10
    Intel VROC Premium, RAID 0, 1, 5, 10
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1
    -
    -
    3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
