    SSG-1029P-NES32R

    Print

    Key Features

    • - IOPS Intensive Application
      - Database Application
      - Hyperconverged Infrastructure

    • 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
    • 2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
      Supports Intel® Optane™ DCPMM††
    • 3. 2 PCI-E 3.0 x16 (FHHL) slots,
      1 PCI-E 3.0 x4 (LP) slot
    • 4. 32 Hot-swap PCI-E E1.S or M.2 drive bays (M.2 is not hot-swappable). M.2 supports Form Factor 22x42/60/80/110 (MCP-220-12106-0N tray required)
    • 5. 2x 10GBase-T LAN ports via Intel X550
    • 6. 8x 40x56mm counter-rotation PWM fans
    • 7. 1600W Redundant Power Supplies Titanium Level (96%)
    Specifications
    Product SKUs
    SSG-1029P-NES32R
    • SuperStorage 1029P-NES32R (Black)

    Motherboard

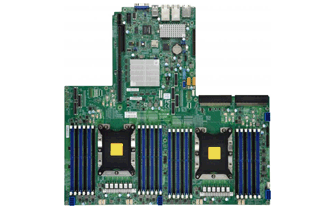

    Super X11DSF-E

    Processor/Cache
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
      3 UPI up to 10.4GT/s
    • Support CPU TDP 70-205W
    Cores
    • Up to 28 Cores
    Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

    System Memory
    Memory Capacity
    • 24 DIMM slots
    • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.

    On-Board Devices
    Chipset
    • Intel® C627 chipset
    Storage
    • PCI-E fan out switching supporting 32x E1.S
    Network Connectivity
    • Intel® X550 Dual Port 10GBase-T
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC

    Input / Output
    LAN
    • 2 RJ45 10GBase-T ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (front)
    • 2 USB 3.0 ports (rear)
    Video
    • 1 VGA D-Sub connector port
    Serial Header
    • 1 COM port (header)

    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM

    Management
    Software
    Power Configurations
    • ACPI / APM Power Management

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-121EF-R1K62P

    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 30" (762mm)
    Weight
    • Net Weight: 40 lbs (18.1kg)
    • Gross Weight: 52 lbs (23.6kg)
    Available Color
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Overheat LED / Fan fail LED /
      UID LED

    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 (FHHL) slots
    • 1 PCI-E 3.0 x4 (LP) slot

    Drive Bays / Storage
    Hot-swap
    • 32 Hot-swap PCI-E E1.S drive slots

    System Cooling
    Fans
    • 8x 40x56mm counter-rotation PWM fan

    Power Supply
    1600W Redundant Power Supplies with PMBus
    Total Output Power
    • 1600W/1000W
    Dimension
    (W x H x L)
    • 73.5 x 40 x 203 mm
    Input
    • 100-127Vac / 13 - 9A / 50-60Hz
    • 200-240Vac / 10 - 8A / 50-60Hz
    +12V
    • Max: 83.3A / Min: 0A (100-127Vac)
    • Max: 133A / Min: 0A (200-240Vac)
    12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification Titanium Level96%  Titanium Level
      [ Test Report ]

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    Part Number
    Qty
    Description
    Motherboard / Chassis MBD-X11DSF-E
    CSE-121EF-R1K62P
    1
    1
    Super X11DSF-E Motherboard
    CSE-121EF-R1K62P Chassis
    Backplane BPN-EDS3-121P1 1 1U EDSFF backplane for 32-slot EDSFF-Short Form NVMe dense storage system.,RoHS
    Cable 1 CBL-PWEX-1026 1 GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 35CM, 17AWG, 8A/pin, -25~85C, RoHS
    Cable 2 CBL-PWEX-1027 1 GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 14CM, 17AWG, 8A/pin, -25~85C, RoHS
    Cable 3 CBL-SAST-1019 2 SLIMLINE SAS, INT,34.7CM, 41.9CM, 31.5/42.2CM,RoHS
    Riser Card RSC-R1UU-E8R+ 1 RSC-R1UU-E8R+ REV 1.00, PBF
    Riser Card RSC-X-66 1 1U LHS Passive Storage Risercard w/ 2 PCI-E x16slots,HF,RoHS
    Heatsink / Retention SNK-P0067PS 2 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    * Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
    * Cable 4 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
    * FAN 1 FAN-0163L4 8 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
    * Front Panel FPB-TMP-002 1 Thermal Sensor board with 40cm I2C cable
    * Drive Tray(s) MCP-220-12105-0N 32 SC121EF EDSFF cage
    * Rear Window MCP-240-12103-0N 1 Rear window for SC121M3
    * Front Panel MCP-280-11605-0N 1 116U FP kit,2* USB3.0,slim bracket, 50cm cable
    * Rail Set MCP-290-11814-0N 1 set Short rail set, quick/quick, auto latch, for 1U 17.2W No CMA support
    * Air Shroud MCP-310-12101-0N 1 SC121 PWS Air Shroud
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List
      Part Number Qty Description
    M.2 Tray (NVMe Only) MCP-220-12106-0N 1 M.2 Tray
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1
    -
    -
    3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
