    SYS-5039MD18-H8TNR

    Print

    Key Features

    • - Cloud Computing
      - Web Cache
      - Web Hosting, VM
      - Social Networking, CDN

    • 1. Intel® Xeon® Processor D-2191I, 18-Cores, 36 Threads
    • 2. 2x 3.5" SATA3 by default; 2x 2.5" hybrid SATA3/NVMe w/ Optional kits
    • 3. Up to 512GB ECC LRDIMM,
      Up to 256GB ECC RDIMM, up to
      DDR4-2400MHz; in 4 DIMM slots
    • 4. 2 GbE LAN ports via Intel i350
    • 5. 1 PCI-E 3.0 x16 (low-profile), 1 Micro-LP, and 2 M.2
    • 6. 2 USB 2.0, 1 VGA, 1 COM port,(with KVM dongle)
    • 7. 4 heavy duty hot-swap 8cm fans with optimal cooling zone (per system)
    • 8. 1600W Redundant power supplies Titanium Level Certified (per system)
    Specifications
    Product SKUs
    SuperServer
    • SYS-5039MD18-H8TNR (Black)

    Motherboard

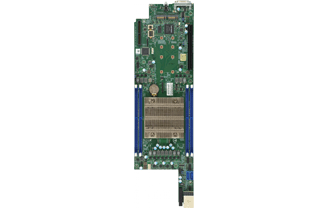

    Super X11SDD-18C-F

    Processor/Cache (per Node)
    CPU
    • Socket FCBGA1667
    • Intel® Xeon® Processor D-2191I
    • CPU TDP support 86W
    Cores / Cache
    • 18-Cores, 36 Threads

    System Memory (per node)
    Memory Capacity
    • 4x 288-pin DDR4 DIMM slots
    • Up to 512 GB ECC LRDIMM
    • Up to 256 GB ECC RDIMM
    Memory Type
    • 2400/2133MHz ECC DDR4 LRDIMM and RDIMM
    DIMM Sizes
    • 32GB, 16GB, 8GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)

    Network Devices (per node)
    Micro-LP NIC

    On-Board Devices (per node)
    Chipset
    • System on Chip (SoC)
    SATA
    • SATA3 (6Gbps) via SoC
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM over LAN support
    • ASPEED AST2500 BMC
    Graphics
    • ASPEED AST2500 Graphics (BMC with Graphic controller)

    Input / Output (per node)
    SATA
    • 2 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    KVM
    • 1 VGA, 1 COM and 2 USB 2.0 (with KVM dongle)

    System BIOS
    BIOS Type
    • 128Mb SPI Flash EEPROM with AMI BIOS
    BIOS Features
    • DMI 2.3
    • ACPI 1.0 / 2.0
    • USB Keyboard support
    • SMBIOS 2.3

    Management
    Software

    Rear Window (each node)
    Switch
    • Power / UID
    Chassis
    Form Factor
    • 3U
    Model
    • CSE-938NH-R1K68BP

    Dimensions and Weight
    Height
    • 5.2" (132 mm)
    Width
    • 15.26" (387 mm)
    Depth
    • 23" (585 mm)
    Package
    • 11.65" (H) x 26.26" (W) x 34" (D)
    Weight
    • Net Weight: 62.2 lbs (28.21 kg)
    • Gross Weight: 88 lbs (39.92 kg)
    Color
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED
    • Node status LED

    Expansion Slots (per node)
    PCI-Express
    • 1 PCI-E 3.0 x16 (Low-profile) slot
    • 1 Micro-LP PCI-E 3.0 x8 slot
    M.2
    • M.2 Interface: 2 PCI-E 3.0 x4
    • M.2 Form Factor: 2280/22110
    • M.2 Key: M-Key

    Drive Bays (per node)
    Internal
    • 2x 3.5" SATA3 (6Gbps) HDDs per node (or 2x 2.5" Hybrid SATA3/NVMe with optional kits); up to 16 HDDs total
    • Enterprise SATA HDD only recommended

    System Cooling
    Fans
    • 4 Hot-swap 8cm cooling fans fan speed control

    Power Supply (76mm Width)
    1600W 1U Redundant Power Supplies with PMBus
    Total Output Power
    • 800W: 100 – 140Vac
    • 1600W: 180 – 240Vac
    Dimension
    (W x H x L)
    • 76 x 40.4 x 336 mm
    Input
    • 100-140Vac / 10-7A / 50-60Hz
    • 180-240Vac / 11-8A / 50-60Hz
    +12V
    • Max: 67A / Min: 0A (100-140Vac)
    • Max: 133A / Min: 0A (180-240Vac)
    +5Vsb
    • Max: 1A / Min: 0A
    Output Type
    • 27 Pairs Gold Finger Connector
    Certification Titanium Level Certified96%  Titanium Level
      [ Test Report ]

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
    • 5 Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
    FAN
    • Cooling zone
    Temperature
    • Monitoring for CPU and chassis environment

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    Part Number
    Qty
    Description
    Motherboard / Chassis MBD-X11SDD-18C-F
    CSE-938NH-R1K68BP
    8
    1
    Super X11SDD-18C-F Motherboard
    3U Chassis
    Add-on Card / Module AOC-CGP-I2-P 8 AOC-CGP-I2-O-P
    Add-on Card / Module AOM-BPN-938NH-P 1 AOM-BPN-938NH, Backplane module for 8-node Microcloud system, 16xU.2, 2 per node, Dual PSU, Management LAN switch, chassis node ID.,HF,RoHS
    Add-on Card / Module AOM-LAN-MC8-P 1 AOM-LAN-MC8, LAN front panel module for 8-node Microcloud system,HF,RoHS
    Add-on Card / Module AOM-PDB-PT938-LSG-P 1 AOM-PDB-PT938-LSG, PDB module for 8-node Microcloud system,HF,RoHS
    Add-on Card / Module AOM-PDB-PT938-RSG-P 1 AOM-PDB-PT938-RSG, PDB module for 8-node Microcloud system,HF,RoHS
    Cable 1 CBL-0218L 1 USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG
    Cable 2 CBL-0355L 2 ETHERNET,CAT5E,RJ45 W/BOOT,GREEN,UTP,2FT (60CM),24AWG
    Cable 3 CBL-0458L 1 20 cm 30 pin to 30 pin Front control cable with tube. 28AWG
    Cable 4 CBL-CDAT-0662 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
    Cable 5 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
    FAN 1 FAN-0194L4 4 80x80x38 mm, 13.5K RPM Cooling Fan for 3U8N Microcloud Serie
    Drive Tray(s) MCP-220-00094-0B 16 Black gen 6.5 hot-swap 3.5 inch HDD Tray
    Air Shroud MCP-310-93805-0B 16 Mylar air shroud for 2-DIMMs (quick install on DIMM latch)
    Power Supply PWS-1K68A-1R 2 1U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF
    Riser Card RSC-RR1U-E16 8 RSC-RR1U-E16 with PIC-E x16 output
    Optional Parts List
      Part Number Qty Description
    TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller,
    Vertical form factor
    TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller,
    Vertical form factor
    Intel VROC RAID Key AOC-VROCINTMOD
    AOC-VROCSTNMOD
    AOC-VROCPREMOD
    1
    1
    1
    Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    Intel VROC Standard, RAID 0, 1, 10
    Intel VROC Premium, RAID 0, 1, 5, 10
    Cable CBL-SAST-0610 - For AOC-S3008L-L8i/AOC-S3108L-H8IR
    Storage Controller Card(s) AOC-S3008L-L8i
    AOC-S3108L-H8IR
    AOC-S3108L-H8IR-16DD
    - Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/10
    Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/5/6/10/50/60
    Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/5/6/10/50/60
    Network Card(s) AOC-CTGS-i2T
    AOC-CTG-i1S
    AOC-CTG-i2S
    AOC-C25G-m1S
    AOC-S40G-i2Q
    AOC-SGP-i2
    AOC-SGP-i4
    AOC-STG-i2
    AOC-STG-i2T
    AOC-STGN-i1S
    AOC-STGN-i2S
    AOC-S100G-m2C
    AOC-SHFI-I1C
    - MicroLP, 2x 10GbE Base-T, PCI-E 3.0 x4, Intel® X550
    MicroLP, 1 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN
    MicroLP, 2 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN
    MicroLP, 1x 25GbE SFP28 port, Mellanox® ConnectX-4 Lx EN
    Standard LP 2-port 40GbE controller, Intel Fortville XL710
    Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2
    Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
    Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
    Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN
    Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    Standard LP 2-port 100GbE with 2 QSFP28, Mellanox CX-4 EN
    Standard LP 1-port Omni Path controller, Intel 100HFA016LS
    Drive Tray(s) MCP-220-93801-0B - Black gen 6 hot-swap 3.5-to-2.5 HDD tray
    Drive Tray(s) MCP-220-00158-0B - Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1
    -
    -
    3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
