    SYS-5039MS-H8TRF

    Print

    Key Features

    • - Cloud Computing
      - Web Cache
      - Web Hosting, VM
      - Social Networking

    • 1. Single socket H4 (LGA 1151) supports
      Intel® Xeon® processor E3-1200 v6/v5,
      Intel® 7th/6th Gen. Core™ i3 series,
      Intel® Celeron® and Intel® Pentium®
    • 2. 2x 3.5" SATA3 by default; 2x 2.5" SATA3 HDDs w/ Optional kits
    • 3. Up to 64GB ECC UDIMM DDR4-2400MHz in 4 sockets
    • 4. 2 GbE LAN ports via Intel i350, 1 dedicated IPMI LAN port
    • 5. 1 PCI-E 3.0 x8 and 1 Micro-LP
    • 6. 2 USB 2.0, 1 VGA, 1 COM port, (with KVM dongle)
    • 7. 1 USB 3.0 (Type A), 1 SATA DOM
    • 8. 4 heavy duty hot-swap 8cm fans with optimal cooling zone (per system)
    • 9. 1600W Redundant power supplies Titanium Level Certified (per system)
    Specifications
    Product SKUs
    SuperServer
    • SYS-5039MS-H8TRF (Black)

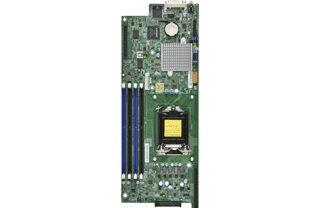

    Motherboard
    Super X11SSD-F

    Processor/Cache
    CPU
    • Single Socket H4 (LGA 1151) supports:
    • Intel® Xeon® processor E3-1200 v6/v5,
      Intel® 7th/6th Gen Core™ i3,
      Intel® Pentium®,
      Intel® Celeron® processors
    • CPU TDP up to 80W
    Note BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors

    System Memory (per node)
    Memory Capacity
    • 4x 288-pin DDR4 DIMM slots
    • Supports up to 64 GB DDR4 ECC Un-Buffered memory (UDIMM)
    Memory Type
    • 2400MHz/2133MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated UDIMMs
    DIMM Sizes
    • 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)

    Expansion Slots (per node)
    PCI-Express
    • 1 PCI-E 3.0 x8 Low-profile slot
    • 1 Micro-LP for Dual GbE (pre-installed); 10GbE or IB AOC optional

    Network Devices (per node)
    Micro-LP NIC
    • Intel® i350 GbE controller
    • Dual RJ-45 connectors
    • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    • Intel® I/O Acceleration Technology (I/O AT)
    • MicroLP Adapter Matrix (Networking options)

    On-Board Devices (per node)
    Chipset
    • Intel® C236 chipset
    SATA
    • SATA3 (6Gbps) via C236 controller
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM over LAN support
    • ASPEED AST2400 BMC
    Headers
    • 1x Type A USB 3.0
    Graphics
    • ASPEED AST2400 Graphics (BMC with Graphic controller)

    Input / Output (per node)
    SATA
    • 2 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    DOM
    • SATA DOM (Disk on Module) power connector support
    KVM
    • 1 VGA, 1 COM and 2 USB 2.0 (with KVM dongle)

    System BIOS
    BIOS Type
    • 128Mb SPI Flash EEPROM with AMI BIOS
    BIOS Features
    • DMI 2.3
    • ACPI 1.0 / 2.0
    • USB Keyboard support
    • SMBIOS 2.3

    Rear Window (each node)
    Switch
    • Power / UID
    Chassis
    Form Factor
    • 3U
    Model
    • CSE-938BH-R1K68B

    Dimensions and Weight
    Height
    • 5.21" (132.5 mm)
    Width
    • 17.26" (438.4 mm)
    Depth
    • 23.2" (589 mm)
    Package
    • 11.65" (H) x 26.26" (W) x 34" (D)
    Weight
    • Net Weight: 62.2 lbs (28.21 kg)
    • Gross Weight: 88 lbs (39.92 kg)
    Color
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED
    • Node status LED

    Drive Bays (per node)
    Internal
    • 2 Hot-swap 3.5" SATA3 (6Gbps) HDDs per node (or 2x 2.5" SATA3 with optional kits); up to 16 HDDs total
    • Enterprise SATA HDD only recommended

    System Cooling
    Fans
    • 4 Heavy duty 8cm fans with optimal cooling zone

    Power Supply (76mm Width)
    1600W 1U Redundant Power Supplies with PMBus
    Total Output Power
    • 800W: 100 – 140Vac
    • 1600W: 180 – 240Vac
    Dimension
    (W x H x L)
    • 76 x 40.4 x 336 mm
    Input
    • 100-140Vac / 10-7A / 50-60Hz
    • 180-240Vac / 11-8A / 50-60Hz
    +12V
    • Max: 67A / Min: 0A (100-140Vac)
    • Max: 133A / Min: 0A (180-240Vac)
    +5Vsb
    • Max: 1A / Min: 0A
    Output Type
    • 27 Pairs Gold Finger Connector
    Certification Titanium Level Certified96%  Titanium Level
      [ Test Report ]

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
    • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
    FAN
    • Cooling zone
    Temperature
    • Monitoring for CPU and chassis environment

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    Part Number
    Qty
    Description
    Motherboard / Chassis MBD-X11SSD-F
    CSE-938BH-R1K68B
    8
    1
    Super X11SSD-F Motherboard
    3U Chassis
    Add-on Card / Module AOC-CGP-I2-P 8 AOC-CGP-I2-O-P
    Air Shroud MCP-310-93804-0B 8 938 mylar airshroud for X10SLD-F (X9 compatible),RoHS/REACH,PBF
    Backplane BPN-SAS-938H 1 16-port 3U (CSE-938) MicroCloud 6Gbps backplane, support up to 16x 3.5-inch SAS/SATA HDD
    Cable 1 CBL-0218L 1 USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG
    Cable 2 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
    Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
    Riser Card RSC-RR1U-E8 8 RSC-RR1U-E8
    Heatsink / Retention SNK-P0047PS+ 8 Customized Passive CPU Heat Sink for Micro Cloud Series Servers
    Power Supply PWS-1K68A-1R 2 1U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF
    Optional Parts List
      Part Number Qty Description
    Cable CBL-SAST-0616
    CBL-0118L-03
    CBL-0476L
    - For AOC-S3008L-L8i/AOC-SAS3-9361-4I
    For AOC-S2308L-L8i
    For AOC-SAS2LP-H8iR
    Storage Controller Card(s) AOC-S3008L-L8i
    AOC-SAS3-9361-4I
    AOC-S2308L-L8i
    AOC-SAS2LP-H8iR
    - Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/10
    Std LP, 4 ports, 12Gb/s Gen3, RAID 0/1/5/6/10/50/60
    Std LP, 8 ports, 6Gb/s Gen3, RAID 0/1/10
    Std LP, 8 ports, 6Gb/s Gen3, RAID 0/1/5/6/10/50/60
    NOTE: SYS-5039MS-H8TRF is designed to support max 6GB/s
    Heatsink SNK-P0047PSM is required for AOC HBA card
    Network Card(s) AOC-CTGS-i2T
    AOC-CTG-i1S
    AOC-CTG-i2S
    AOC-CIBF-m1
    AOC-CIBQ-m1
    AOC-S40G-i2Q
    AOC-SGP-i2
    AOC-SGP-i4
    AOC-STG-i2
    AOC-STG-i2T
    AOC-STGN-i1S
    AOC-STGN-i2S
    - MicroLP, 2x 10GbE Base-T, PCI-E 3.0 x4, Intel® X550
    MicroLP, 1 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN
    MicroLP, 2 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN
    MicroLP, 1x QSFP PCI-E 3.0 x8, Mellanox® ConnectX-3 FDR
    MicroLP, 1x QSFP PCI-E 3.0 x8, Mellanox® ConnectX-3 QDR
    Standard LP 2-port 40GbE controller, Intel Fortville XL710
    Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2
    Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
    Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
    Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN
    Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    Drive Tray(s) MCP-220-93801-0B - Black gen 6 hot-swap 3.5-to-2.5 HDD tray
    Drive Tray(s) MCP-220-00158-0B - Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1
    -
    -
    3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single/td> 1 DataCenter Management Package (per node license)
