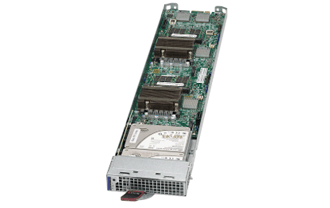

    MBI-6219G-T8HX

    Print
    Views Angled ViewsTop ViewsRear Views

    Key Features

    • - 392 Skylake UP nodes per 42U Rack
      - 56/28 Skylake-H UP nodes in 6U/3U
      - 2 Independent Nodes per Module;
      Each Node Supports:
    • 1. Intel® Xeon® processor E3-1585 v5 Socket FCBGA 1440
    • 2. Up to 32GB DDR4-2133MHz ECC SO-DIMM in 2 DIMM slots per node
    • 3. 1x 2.5" SATA3 SSDs, 1x SATADOM,
      2x M.2 (PCI-E 3.0 x4)
    • 4. Dual 10GbE LAN ports
    • 5. Dedicated LAN supports IPMI 2.0
    Specifications
    Product SKUs
    MicroBlade
    • MBI-6219G-T8HX

    Motherboard

    • B2SS2-H-MTF

    Processor/Cache
    CPU
    • Single Socket FCBGA 1440 supports:
    • Intel® Xeon® processor E3-1585 v5 processors
    • CPU TDP up to 65W

    System Memory
    Memory Capacity
    • Up to 32GB Unbuffered ECC SO-DIMM, in 2 DIMM slots per node
    Memory Type
    • 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 260-pin SO-DIMMs
    DIMM Sizes
    • 16GB, 8GB
    Memory Voltage
    • 1.2 V

    On-Board Devices
    Chipset
    • Intel® C236 chipset
    SATA
    • SATA3 (6Gbps) via chipset
    Network Controllers
    • Dual 10GbE LAN ports
    IPMI
    • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)

    System BIOS
    BIOS Type
    • AMI UEFI
    BIOS Features
    • ACPI 5.0
    • DMI 2.3
    • PCI 3.0
    • Plug and Play (PnP)
    • SMBIOS 3.0
    • UEFI 2.3.1
    Dimensions
    Height
    • 1.2" (30.48mm)
    Width
    • 4.94" (125.48mm)
    Depth
    • 23.2" (589.28mm)
    Weight
    • Gross Weight: 5.01 lbs (2.27 kg)
    Available Colors
    • Silver Grey

    Front Panel
    LEDs
    • Power LED
    • Fault LED
    • Network Activity LED
    • UID / KVM LED

    Drive Bays
    Internal
    • 1x 2.5" SATA3 (6Gbps) SSD per blade
    • 2x M.2 (PCI-E 3.0 x4)
    • 1x SATADOM

    Operating Environment / Compliance
    Environmental Spec.
    • Operating Temperature:

         10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:

         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:

         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:

         5% to 95% (non-condensing)

    Electromagnetic Compatibility (EMC)
    United States / Canada
    • FCC- Emissions (US) Verification
    Europe
    • EN55022 - Emissions
    • EN55024 - Immunity
    • EN61000-3-2 - Harmonics
    • EN61000-3-3 - Voltage Flicker
    • CE - EMC Directive 89/336/EEC
    Parts List
    Parts List - (Items Included)
      Part Number Qty Description
    Motherboard MBD-B2SS2-H-MTF 1 MicroBlade Board
    MicroBlade Sled MCP-680-31406-0N 1 M628 MicroBlade Skylake UP transcoding (complete assembly)
    Micro Blade Module Chassis MCP-620-31401-0N

    MCP-620-31409-0N

    MCP-620-31410-0N

    MCP-620-31408-0N    		 2

    1

    1

    1    		 M628 Sled AOM-BPN Bracket

    M628 Sled Node Cover with asset tag

    M628 Sled Front Window with asset tag opening

    M628 MicroBlade Skylake UP transcoding Sled Base
    Add-on Card AOM-BPN-MS28HS-P 1 AOM-BPN-MS28HS-P
    Optional Parts List
      Part Number Qty Description
    SATA DOM MEM-IDSAVM8A-008G

    MEM-IDSAVM8A-016G

    MEM-IDSAVM8A-032G

    MEM-IDSAVM8A-064G

    MEM-IDSAVM8A-128G    		 - Vertical SATA DOM 8G

    Vertical SATA DOM 16G

    Vertical SATA DOM 32G

    Vertical SATA DOM 64G

    Vertical SATA DOM 128G
    Software SFT-OOB-LIC> 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
