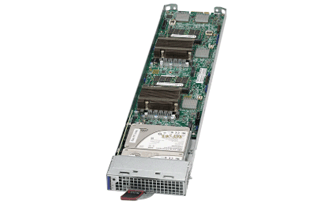

MBI-6219G-T7LX
PrintKey Features
- - 392 Skylake UP nodes per 42U Rack
- 56/28 Skylake-H UP nodes in 6U/3U
- 2 Independent Nodes per Module;
Each Node Supports:
- 1. Socket FCBGA 1440; Intel® Xeon® processor E3-1578L v5
- 2. Up to 32GB DDR4-2133MHz ECC SO-DIMM in 2 DIMM slots per node
- 3. 1x 2.5" SATA3 SSDs, 1x SATADOM,
1x M.2 (80mm PCI-E 3.0 x4),
1x M.2 (110mm PCI-E 3.0 x4)
- 4. Dual 10GbE LAN ports via Intel X710-BM2
- 5. Dedicated LAN supports IPMI 2.0
Specifications
|
|
Parts List
![]() | |||
Parts List - (Items Included) | |||
Part Number | Qty | Description | |
Motherboard | MBD-B2SS2-MTF | 1 | MicroBlade Board |
MicroBlade Sled | MCP-680-31406-0N | 1 | M628 MicroBlade Skylake UP transcoding (complete assembly) |
Micro Blade Module Chassis | MCP-620-31401-0N MCP-620-31409-0N MCP-620-31410-0N MCP-620-31408-0N |
2 1 1 1 |
M628 Sled AOM-BPN Bracket M628 Sled Node Cover with asset tag M628 Sled Front Window with asset tag opening M628 MicroBlade Skylake UP transcoding Sled Base |
Add-on Card | AOM-BPN-MS28HS-P | 1 | AOM-BPN-MS28HS-P |
![]() | |||
Optional Parts List | |||
Part Number | Qty | Description | |
SATA DOM | MEM-IDSAVM8A-008G MEM-IDSAVM8A-016G MEM-IDSAVM8A-032G MEM-IDSAVM8A-064G MEM-IDSAVM8A-128G |
- | Vertical SATA DOM 8G Vertical SATA DOM 16G Vertical SATA DOM 32G Vertical SATA DOM 64G Vertical SATA DOM 128G |
Software | SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
