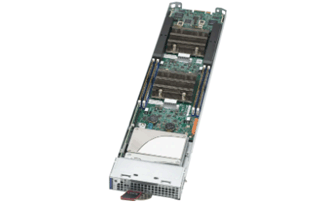

    MBI-6219B-T83N

    Print
    Views Angled ViewsTop ViewsRear Views

    Key Features

    • - 392 UP nodes per 42U Rack
      - 56/28 UP nodes in 6U/3U
      - 2 independent nodes per Module
      - Each node supports:
    • 1. Intel® Xeon® processor D-2183IT, FCBGA 2518, 16 core, 32 Threads, 100W
    • 2. Up to 128GB ECC VLP RDIMM DDR4-2400MHz in 4 DIMM slots
    • 3. 1x 2.5" HDD/SSD/NVMe U.2 per node
    • 4. Dual 10GbE LAN ports
    • 5. Hot-plug front loading
    Specifications
    Product SKUs
    MicroBlade
    • MBI-6219B-T83N

    Motherboard


    Processor
    CPU
    • Intel® Xeon® processor D-2183IT, FCBGA 2518, 100W
    Cores
    • 16 core, 32 Threads

    System Memory
    Memory Capacity
    • 4x DDR4 DIMM sockets
    • Supports up to 128GB DDR4 ECC VLP RDIMM
    Memory Type
    • 2400MHz ECC DDR4 VLP RDIMM
    DIMM Sizes
    • 32GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors

        (using ECC memory)

    On-Board Devices
    Chipset
    • System-on-Chip
    Network Controllers
    • Dual 10GbE LAN ports

    System BIOS
    BIOS Type
    • 128Mb Flash EEPROM
    BIOS Features
    • Plug and Play (PnP)
    • APM 1.2
    • ACPI 1.0/2.0
    • SMBIOS 2.3
    • RTC (real time clock) wake up
    Dimensions
    Height
    • 1.2" (30.48mm)
    Width
    • 4.94" (125.48mm)
    Depth
    • 23.2" (589.28mm)
    Weight
    • Gross Weight: 5.01 lbs (2.27 kg)
    Available Colors
    • Silver Grey

    Front Panel
    LEDs
    • Power LED
    • Fault LED
    • Network Activity LED
    • UID / KVM LED

    Drive Bays
    Internal
    • 1x 2.5" HDD/SSD/NVMe U.2 per node
    • 1x SuperDOM (support Pin 7 power)
    • 1x NVMe M.2 (60/80/110mm)

    Operating Environment / Compliance
    Environmental Spec.
    • Operating Temperature:

         10°C to 38°C (50°F to 100.4°F)
    • Non-operating Temperature:

         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:

         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:

         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)
      Part Number Qty Description
    Motherboard MBD-B2SD2-16C-TF-P 1 MicroBlade Board
    MicroBlade Sled MCP-680-31409-0N 1 M628 MicroBlade Skylake-D 2 Node UP (complete assembly)
    Micro Blade Module Chassis MCP-620-31409-0N

    MCP-620-31410-0N

    MCP-620-31413-0N

    MCP-640-31410-0N

    MCP-620-31401-0N    		 1

    1

    1

    1

    1    		 M628 Sled Node Cover with asset tag

    M628 Sled Front Window with asset tag opening

    M628 Skylake-D UP top 2x 2.5HDD bracket

    M628 MicroBlade Skylake-D 2 Node UP Chassis Base

    M628 Sled AOM-BPN Bracket
    Air Shroud MCP-310-31409-0N 1 M628 MicroBlade Skylake-D UP Air Shroud
    Add-on Card AOM-BPN-MS28US-P 1 AOM card for B2SD2(1)-8C/12C/16C-TF, 2xSATA or 2x NVME,RoHS
    Optional Parts List
      Part Number Qty Description
    TPM security module

    (optional, not included)    		 AOM-TPM-9670V
    AOM-TPM-9671V    		 1 TPM module (Vertical) TPM 2.0
    TPM module (Vertical) TPM 1.2.
    SATA DOM MEM-IDSAHM3A-016G

    MEM-IDSAHM3A-032G

    MEM-IDSAHM3A-064G

    MEM-IDSAHM3A-128G    		 1 SATA3 DOM SH 3ME3 V2 16GB MLC w/ Pin8 VCC Horizontal

    SATA3 DOM SH 3ME3 V2 32GB MLC w/ Pin8 VCC Horizontal

    SATA3 DOM SH 3ME3 V2 64GB MLC w/ Pin8 VCC Horizontal

    SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
