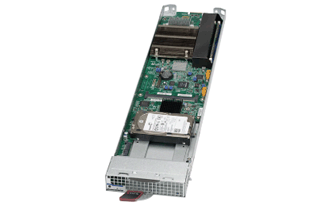

    MBI-6119G-C2

    Print
    Views Angled ViewsTop ViewsRear Views

    Key Features

    • - 196 UP nodes per 42U Rack
      - 28/14 UP nodes in 6U/3U
    • 1. Socket H4 (LGA 1151) supports Intel® Xeon® E3-1200 v6/v5 processor family
    • 2. Up to 64GB ECC VLP UDIMM DDR4-2400MHz in 4 DIMM slots
    • 3. Up to 2x 2.5" SAS3 (12Gbps) HDDs
    • 4. Dual 1GbE LAN ports via Intel i350 Dedicated LAN supports IPMI 2.0
    Specifications
    Product SKUs
    MicroBlade
    • MBI-6119G-C2

    Motherboard

    • B2SS1-CPU

    Processor/Cache
    CPU
    • Single Socket H4 (LGA 1151) supports:
    • Intel® Xeon® processor E3-1200 v6/v5,

    • CPU TDP up to 80W
    Note BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series Processors

    System Memory
    Memory Capacity
    • 4x DDR4 DIMM sockets
    • Supports up to 64GB DDR4 ECC VLP UDIMM
    Memory Type
    • 2400MHz ECC DDR4 UDIMM
    DIMM Sizes
    • 16GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors

        (using ECC memory)

    On-Board Devices
    Chipset
    • Intel® C236 chipset
    SAS
    • SAS3 (12Gbps) via Avago 3008
    Network Controllers
    • Redundant 1GbE SDN switches with 40Gbps/10Gbps uplinks
    • Dual 1GbE LAN ports
    IPMI
    • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)

    System BIOS
    BIOS Type
    • 128Mb SPI Flash EEPROM with AMI® BIOS
    BIOS Features
    • Plug and Play (PnP)
    • APM 1.2
    • SMBIOS 2.7.1
    Dimensions
    Height
    • 1.2" (30.48mm)
    Width
    • 4.94" (125.48mm)
    Depth
    • 23.2" (589.28mm)
    Available Colors
    • Silver Grey

    Front Panel
    LEDs
    • Power LED
    • Fault LED
    • Network Activity LED
    • UID / KVM LED

    Drive Bays
    Internal
    • 2x 2.5" SAS3 (12Gbps) HDD

    Operating Environment / Compliance
    Environmental Spec.
    • Operating Temperature:

         10°C to 38°C (50°F to 100.4°F)
    • Non-operating Temperature:

         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:

         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:

         5% to 95% (non-condensing)

    Electromagnetic Compatibility (EMC)
    United States / Canada
    • FCC- Emissions (US) Verification
    Europe
    • EN55022 - Emissions
    • EN55024 - Immunity
    • EN61000-3-2 - Harmonics
    • EN61000-3-3 - Voltage Flicker
    • CE - EMC Directive 89/336/EEC
    Parts List
    Parts List - (Items Included)
      Part Number Qty Description
    Motherboard MBD-B2SS1-CPU-P 1 MicroBlade Board
    MicroBlade Sled MCP-680-31408-0N 1 M628 MicroBlade Modularized Skylake UP
    Micro Blade Module Chassis MCP-620-31409-0N

    MCP-620-31411-0N

    MCP-620-31412-0N

    MCP-640-31409-0N    		 1

    1

    1

    1    		 M628 Sled Node Cover with asset tag

    M628 Modularized Skylake UP 2x 2.5" HDD bracket

    M628 Sled Front Window with asset tag opening - Vertical

    M628 MicroBlade Modularized Skylake UP w/ 3008 Sled Base
    Air Shroud MCP-310-31405-0N 1 M628 MicroBlade Modularized Skylake UP Air Shroud
    Add-on Card AOM-BPNIO-MSC-P 1 I/O module for uBlade, RoHS
    Optional Parts List
      Part Number Qty Description
    Heatsink / Retention SNK-P0047PSRK - Passive CPU Heat Sink for MicroBlade UP
    SATA DOM MEM-IDSAHM3A-016G

    MEM-IDSAHM3A-032G

    MEM-IDSAHM3A-064G

    MEM-IDSAHM3A-128G    		 1 SATA3 DOM SH 3ME3 V2 16GB MLC w/ Pin8 VCC Horizontal

    SATA3 DOM SH 3ME3 V2 32GB MLC w/ Pin8 VCC Horizontal

    SATA3 DOM SH 3ME3 V2 64GB MLC w/ Pin8 VCC Horizontal

    SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
