    SBI-6119P-C3N

    Print
    Intergrated Board

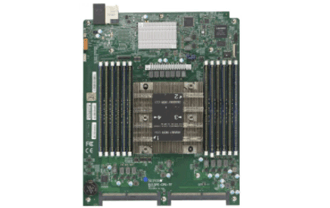

    B11SPE-CPU-TF
    Views Angled ViewsTop ViewsRear Views

    Key Features

    • 1. 70 CPUs per 42U Rack
    • 2. Single socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
    • 3. Intel® C622 chipset
    • 4. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
      Supports Intel® Optane™ DCPMM††
    • 5. 2 Hot-plug 2.5" NVMe + 1 Hot-plug SAS3/SATA3 drives or 3 SAS3/SATA3
    • 6. Broadcom 3108 HW RAID
    • 7. Dual 10G onboard
    • 8. IPMI 2.0, KVM over IP, Virtual Media over LAN
    • 9. Graphics: Aspeed AST2500 BMC
    Specifications
    Product SKUs
    SBI-6119P-C3N
    • Single-Socket Blade SBI-6119P-C3N

    Motherboard


    Super B11SPE-CPU-TF

    Processor/Cache
    CPU
    • Single Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡
    • Support CPU TDP 70-205W
    Cores
    • Up to 28 Cores
    Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors

    System Memory
    Memory Capacity
    • 12 DIMM slots
    • Up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933†/2666/2400MHz ECC DDR4 RDIMM/LRDIMM
    Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

    †† Cascade Lake only. Contact your Supermicro sales rep for more info.

    On-Board Devices
    Chipset
    • Intel® C622 chipset
    SAS
    • Broadcom 3108 SAS3 (12Gbps) controller;

         HW RAID 0, 1, 5 support; 2GB Cache
    Network Controllers
    • Dual 10G onboard
    IPMI
    • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
    Graphics
    • Aspeed AST2500 BMC

    System BIOS
    BIOS Type
    • 128Mb SPI Flash EEPROM with AMI® BIOS
    BIOS Features
    • Plug and Play (PnP)
    • PCI 2.2
    • ACPI up to 3.0
    • USB Keyboard support
    Dimensions
    Height
    • 9.75"
    Width
    • 1.75"
    Depth
    • 23.5"
    Weight
    • 10.5 lbs (4.76 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED
    • UID / KVM LED
    • Network Activity LED
    • Fault LED

    Drive Bays
    Hot-swap
    • 2 Hot-plug 2.5" NVMe + 1 Hot-plug SAS3/SATA3 or 3 SAS3/SATA3

    Input / Output
    TPM
    • 1 TPM Header

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:

         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:

         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:

         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:

         5% to 95% (non-condensing)


    Parts List
    Parts List - (Items Included)
      Part Number Qty Description
    Motherboard / Chassis MBD-B11SPE-CPU-TF

    MCP-680-61002-0N    		 1

    1    		 Super B11SPE-CPU-TF Motherboard

    6U 10 SuperBlade UP Blade chassis
    Add-on Card / Module AOM-BPNIO-SCE-P 1 AOM-BPNIO-SC, I/O module for uBlade,RoHS
    Add-on Card / Module AOM-BPNIO-BRGE-P 1 Bridge Board
    Add-on Card / Module AOM-BPNIO-SCE-P 1 I/O module for 6U Super Blade,RoHS , support up to 2 NVMe or 3 SAS
    Hard Drive Tray MCP-220-00145-0B 2 Black 2.5" NVMe Hard Drive Tray, orange button
    Hard Drive Tray MCP-220-00079-0B 1 Black gen 4 hot swap 2.5" HDD tray for Twin Blade
    Air Shroud MCP-310-61002-0B 1 6U 10 SuperBlade B11SPE Processor Tray Air Shroud, Wide
    Air Shroud MCP-310-61003-0B 1 6U 10 SuperBlade B11SPE Processor Tray Air Shroud, Narrow
    Optional Parts List
      Part Number Qty Description
    TPM security module

    (optional, not included)    		 AOM-TPM-9670V
    AOM-TPM-9671V    		 1 TPM module (Vertical) TPM 2.0
    TPM module (Vertical) TPM 1.2.
    SuperDOM - - Supermicro SATA DOM Solutions [Details]
    Heatsink / Retention SNK-P0067PSW 1 1U Proprietary 105-mm Wide Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    AOC AOC-VROCPREMOD

    AOC-VROCSTNMOD

    AOC-VROCINTMOD    		 -

    -

    -    		 Intel VROC Premium, RAID 0, 1, 5, 10

    Intel VROC HW key (RSTe) standard upgrade module

    Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    Battery Backup Kit BTR-TFM8G-LSICVM02

    MCP-240-00127-0N    		 1

    1    		 Broadcom Supercap w/ 8GB CV + 24'' cable (whole kit)

    Broadcom Supercap bracket include screw, same size as 2.5" HDD
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
