SYS-F629P3-RTBN

Intergrated Board

Views Angled Views Top Views Front Views Rear Views

Key Features

4 Hot-plug System Nodes in 4U
Each node supports:
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
2. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM††
3. Expansion slots: 1 PCI-E 3.0 x16 (LP)
1 PCI-E 3.0 x16 (for SIOM )
4. SIOM Network card,
1 dedicated IPMI LAN port
5. 1 VGA, 2 USB 3.0 ports
6. 8 Hot-swap 3.5" SATA3 or 6 Hot-swap 3.5" SATA3 + 2 NVMe U.2
M.2 Interface: PCI-E 3.0 x4
M.2 Form Factor: 2260, 2280, 22110
M.2 Key: M-Key
7. 2x 8cm 14k RPM middle fans
8. 1200W Redundant Power Supplies Titanium Level (96% Efficiency)

Specifications

Product SKUs
SYS-F629P3-RTBN
SuperServer F629P3-RTBN (Black)

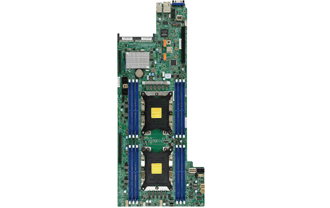

Motherboard

Super X11DPFR-SN

Processor/Cache (per Node)

CPU
Dual Socket P (LGA 3647)

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors^‡,
Dual UPI up to 10.4GT/s

Support CPU TDP 70-165W with IVR

Cores
Up to 28 Cores

Note ^‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.

System Memory (per Node)

Memory Capacity
12 DIMM slots

Up to 3TB 3DS ECC DDR4-2933MHz^† RDIMM/LRDIMM

Supports Intel® Optane™ DCPMM^††

Memory Type
2933^†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note ^† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
^†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices

Chipset
Intel® C621 chipset

SATA
SATA3 (6Gbps)

Network Controllers
Flexible networking via SIOM

IPMI
Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics
ASPEED AST2500 BMC

Input / Output (per node)

SATA
14 SATA3 (6Gbps) ports

NVMe
2 NVMe U.2 option

LAN
SIOM flexible Network card

1 RJ45 Dedicated IPMI LAN port

USB
2 USB 3.0 ports (rear)

VGA
1 VGA port

System BIOS

BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS

Management

Software
Intel® Node Manager

IPMI 2.0

KVM with dedicated LAN

SuperDoctor® 5

Watch Dog

Power Configurations
ACPI Power Management

PC Health Monitoring

CPU
Monitors for CPU Cores, Chipset Voltages, Memory.

4+1 Phase-switching voltage regulator

FAN
Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature
Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis
Form Factor
4U Rackmount

Model
CSE-F424AS2-R1K23BP

Dimensions and Weight
Width
17.63" (448mm)

Height
6.96" (177mm)

Depth
29" (737mm)

Package
28.3" (W) x 15.0" (H) x 42.4" (D)

Weight
Net Weight: 150 lbs (68.04 kg)

Gross Weight: 200 lbs (90.71 kg)

Available Colors
Black

Front Panel
Buttons
Power On/Off button

UID button

LEDs
Power status LED

Hard drive activity LED

Network activity LEDs

Information LED (UID, Fan failure, Overheat)

Expansion Slots (per node)

PCI-Express
1 PCI-E 3.0 x16 (Low-profile)

1 PCI-E 3.0 x16 (SIOM)

Drive Bays (per node)
Hot-swap
8 Hot-swap 3.5" SATA3 or 6 Hot-swap 3.5" SATA3 + 2 NVMe U.2

M.2
M.2 Interface: PCI-E 3.0 x4

M.2 Form Factor: 2260, 2280, 22110

M.2 Key: M-Key

Backplane
1 SAS/SATA backplane

System Cooling (per node)
Fans
2x 8cm 14 RPM middle fans

Power Supply (76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power
1000W/1200W

Dimension
(W x H x L)
76 x 40 x 336 mm

Input
100-127Vac / 15-12A / 50-60Hz

200-240Vac / 8.5-7A / 50-60Hz

200-240Vdc / 8.5-7A (for CCC only)

+12V
Max: 83A / Min: 0A (100-127Vac)

Max: 100A / Min: 0A (200-240Vac)

Max: 100A / Min: 0A (200-240Vdc)

+5Vsb
Max: 4A / Min: 0A

Output Type
19 Pairs Gold Finger Connector

Certification Titanium Level
[ Test Report ]

Operating Environment
RoHS
RoHS Compliant

Environmental Spec.
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity:
   8% to 90% (non-condensing)

Non-operating Relative Humidity:
   5% to 95% (non-condensing)

Parts List

Parts List - (Items Included)

Part Number
Qty
Description

Motherboard / Chassis MBD-X11DPFR-SN
CSE-F424AS2-R1K23BP 4
1 Super X11DPFR-SN Motherboard
4U Chassis
Backplane BPN-ADP-X11DPFR 4 Power distribution board for X11DPFR-S(N)
Backplane BPN-SAS-F424-A6 4 6-port Fat Twin 6Gbps hot swappable HDD backplane, support up to 6x 3.5-inch SAS/SATA HDD
Backplane BPN-SAS3-F424-A2N2A 4 2-Port Hybrid Backplane support 2 x SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-0486L 12 2x2 to 2x2 15cm power cable HF. 18AWG
Cable 2 CBL-OTHR-0022L 4 20 to 20 pin cable for BPN-ADP-F418LS,7.5cm, 28AWG,RoHS/REACH,PBF
Cable 3 CBL-PWCD-0900 4 PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG
Cable 4 CBL-SAST-0616 4 MINI SAS HD-4 SATA,6G,INT,50CM,50CM SB,30AWG
Cable 5 CBL-SAST-0974-1 8 OcuLink v 1.0,INT,PCIe NVMe SSD, 37CM,34AWG
Cable 6 CBL-SAST-1005-1 4 2X MINI SAS HD to 2X SATA,SB,INT,55 CM
Heatsink / Retention SNK-P0068PSC 4 2U Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Heatsink / Retention SNK-P0069PSC 4 1.5U Proprietary 50-mm Tall Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform 2U Node Twin Series Servers
Power Supply PWS-1K23A-1R 4 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
Optional Parts List
Part Number Qty Description
Backplane BPN-ADP-2UPWR-X11 - 1 per node for configurations with CPU at 145W or higher
Cable CBL-0480L - 1 per node for configurations with CPU at 145W or higher
NVMe - - Contact Supermicro for configurations with more NVMe SSDs.
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List


Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-X11DPFR-SN CSE-F424AS2-R1K23BP	4 1	Super X11DPFR-SN Motherboard 4U Chassis
Backplane	BPN-ADP-X11DPFR	4	Power distribution board for X11DPFR-S(N)
Backplane	BPN-SAS-F424-A6	4	6-port Fat Twin 6Gbps hot swappable HDD backplane, support up to 6x 3.5-inch SAS/SATA HDD
Backplane	BPN-SAS3-F424-A2N2A	4	2-Port Hybrid Backplane support 2 x SAS3/SATA3/NVMe Storage Devices
Cable 1	CBL-0486L	12	2x2 to 2x2 15cm power cable HF. 18AWG
Cable 2	CBL-OTHR-0022L	4	20 to 20 pin cable for BPN-ADP-F418LS,7.5cm, 28AWG,RoHS/REACH,PBF
Cable 3	CBL-PWCD-0900	4	PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG
Cable 4	CBL-SAST-0616	4	MINI SAS HD-4 SATA,6G,INT,50CM,50CM SB,30AWG
Cable 5	CBL-SAST-0974-1	8	OcuLink v 1.0,INT,PCIe NVMe SSD, 37CM,34AWG
Cable 6	CBL-SAST-1005-1	4	2X MINI SAS HD to 2X SATA,SB,INT,55 CM
Heatsink / Retention	SNK-P0068PSC	4	2U Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Heatsink / Retention	SNK-P0069PSC	4	1.5U Proprietary 50-mm Tall Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform 2U Node Twin Series Servers
Power Supply	PWS-1K23A-1R	4	AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH


Optional Parts List

	Part Number	Qty	Description
Backplane	BPN-ADP-2UPWR-X11	-	1 per node for configurations with CPU at 145W or higher
Cable	CBL-0480L	-	1 per node for configurations with CPU at 145W or higher
NVMe	-	-	Contact Supermicro for configurations with more NVMe SSDs.
Software	SFT-OOB-LIC	1	OOB Management Package (per node license)
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
