    SYS-F619P2-FT+

    Print
    Intergrated Board

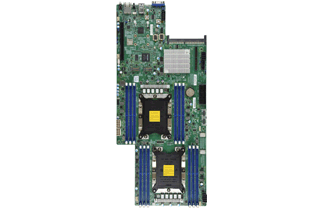

    X11DPFF-SNR
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • - Compute Intensive Applications
      - Data Center, HPC and Enterprise Applications
      - Hyperscale, Hyperconverged
      - RoT (Root of Trust) support to protect firmware security
      - 4U 8 node system, each node:
    • 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
    • 2. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
      Supports Intel® Optane™ DCPMM††
    • 3. 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 (for SIOM )
    • 4. 2 or 4 Fixed 2.5" SATA3/NVMe drive bays, M.2 Interface: 2 SATA/PCI-E 3.0 x4, RAID 0 and 1
      M.2 Form Factor: 2260, 2280, 22110
      M.2 Key: M-Key
    • 5. Dual GbE ports via SIOM Network card, 1 dedicated IPMI LAN port(front)
    • 6. 1 VGA, 2 USB 3.0 ports (front)
    • 7. 8x 8cm 13.5k RPM rear fans per enclosure
    • 8. 2200W Redundant Power Supplies Titanium Level (96% Efficiency)
    Specifications
    Product SKUs
    SYS-F619P2-FT+
    • SuperServer F619P2-FT+ (Black)

    Motherboard

    Super X11DPFF-SN

    Processor/Cache (per Node)
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
      Dual UPI up to 10.4GT/s
    • Support CPU TDP 70-165W with IVR
    Cores
    • Up to 28 Cores
    Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

    System Memory (per Node)
    Memory Capacity
    • 12 DIMM slots
    • Up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.

    On-Board Devices
    Chipset
    • Intel® C621 chipset
    SATA
    • SATA3 (6Gbps); RAID 0, 1, 5, 10
    Network Controllers
    • Flexible networking via SIOM
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC

    Input / Output (per node)
    SATA
    • 14 SATA3 (6Gbps) ports
    LAN
    • SIOM flexible Network card
    • 1 RJ45 Dedicated IPMI LAN port (front)
    USB
    • 2 USB 3.0 ports (front)
    VGA
    • 1 VGA port (front)

    System BIOS
    BIOS Type
    • 128Mb SPI Flash EEPROM with AMI BIOS

    Management
    Software
    Power Configurations
    • ACPI Power Management

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSE-F418IF3-R2K20BP

    Dimensions and Weight
    Width
    • 17.63" (448mm)
    Height
    • 6.96" (177mm)
    Depth
    • 29" (737mm)
    Package
    • 28.3" (W) x 15.0" (H) x 42.4" (D)
    Weight
    • Net Weight: 150 lbs (68.04 kg)
    • Gross Weight: 200 lbs (90.71 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • Network activity LEDs
    • Information LED (Fan failure, Overheat)

    Expansion Slots (per node)
    PCI-Express
    • 1 PCI-E 3.0 x16 (Low-profile)
    • 1 PCI-E 3.0 x8 (Low-profile)
    • 1 PCI-E 3.0 x16 (SIOM)

    Drive Bays (per node)
    Fixed
    • 2 or 4 Fixed 2.5" SATA3/NVMe drive bays
    M.2
    • M.2 Interface: 2 SATA/PCI-E 3.0 x4, RAID 0 & 1
    • M.2 Form Factor: 2260, 2280, 22110
    • M.2 Key: M-Key

    System Cooling
    Fans
    • 8x 8cm 13.5k RPM rear fans per enclosure

    Power Supply
    2200W Redundant Power Supplies with PMBus
    Total Output Power and Input
    • 1200W with Input 100-127Vac
    • 1800W with Input 200-220Vac
    • 1980W with Input 220-230Vac
    • 2090W with Input 230-240Vac
    • 2200W with Input 220-240Vac (for UL/cUL use only)
    • 2090W with Input 230-240Vdc (for CCC only)
    AC Input Frequency
    • 50-60Hz
    Dimension
    (W x H x L)
    • 76 x 40 x 336 mm
    +12V
    • Max: 100A / Min: 0A (100-127Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 174.17A / Min: 0A (230-240Vac)
    • Max: 183.3A / Min: 0A (220-240Vac)
    5VSB
    • Max: 1A / Min: 0A
    Output Type
    • Backplanes (gold finger)
    Certification Titanium Level96%  Titanium Level
      [ Test Report ]

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11DPFF-SNR
    CSE-F418IF3-R2K20BP     		8
    1    		 Super X11DPFF-SNR Motherboard
    4U Chassis
    Backplane BPN-ADP-X11DPFF 8 Power adapter card for X11DPFF,RoHS
    Cable 1 CBL-CDAT-0910 8 CBL,SGPIO,2X5F TO 2X5F,P2.54, 14CM, 24AWG,RoHS
    Cable 2 CBL-PWCD-0578 4 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
    Cable 3 CBL-PWEX-1020 16 PWEX,2X4F/P4.2 TO 2X4F/P4.2,10.5CM,16AWG,RoHS
    Cable 4 CBL-PWEX-1020-11 16 PWEX,2X4F/P4.2 TO 2X4F/P4.2,10.5CM,16AWG,RoHS
    Cable 5 CBL-SAST-0757 8 INT MINI SAS HD to SAS 29px2 + 8p 2x4(5,12V) GPU PWR BLK,50cm,22/30AWG,RoHS/REACH
    Riser Card RSC-P-6 8 RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS
    Riser Card RSC-R1UF-E16R 8 RSC-R1UF-E16R
    Heatsink / Retention SNK-P0067PS 8 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Heatsink / Retention SNK-P0067PSC 8 1U Passive CPU Heat Sink with a 17-mm Wide Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    * Power Supply PWS-2K04A-1R 4 AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH
    * Power Supply PWS-2K20A-1R 4 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
    * Backplane BPN-PDB-X11DPFF 2 Power Middleplane for X11 FIO Fattwin,RoHS
    * Rail Set MCP-290-41803-0N 1 Fat twin F418 / F424 Static Rail set support 28-33.5 inch depth rail,RoHS/REACH,PBF
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List
      Part Number Qty Description
    Connect 2x 2.5" NVMe Drive CBL-SAST-0950 1/node 2x OcuLink v 1.0 to 2x PCIe SFF-8639 w/ Power, 35/57CM, 32/24/20 AWG
    Connect 4x 2.5" NVMe Drives
    *Consult with Technical Support    		 CBL-SAST-0950
    MCP-120-00107-0N    		 2/node
    1/node    		 2x OcuLink v 1.0 to 2x PCIe SFF-8639 w/ Power, 35/57CM, 32/24/20 AWG
    Fixed tool-less 2x 2.5" internal HDD bracket (2nd HDD required screws)
    Connect 4x 2.5" SATA Drives
    Working Conditions:
    • CPU Watts: 165W or lower
    • Ambient Temp: 30°C or lower     		CBL-SAST-0673
    MCP-120-00107-0N    		 1/node
    1/node    		 MINI SAS HD-SAS 29Px4+2x4P x2,INT,47/47/57/57CM,22/30AWG
    Fixed tool-less 2x 2.5" internal HDD bracket (2nd HDD required screws)
    Connect 2x 2.5" SAS Drives *Any Qualified LSI Card (Please refer to X11DPFF-SN Tested AOC List) 1/node
    Connect 4x 2.5" SAS Drives
    Working Conditions:
    • CPU Watts: 125W or lower
    • Ambient Temp: 25°C or lower     		CBL-SAST-0673
    MCP-120-00107-0N
    Any Qualified LSI Card (Please refer to X11DPFF-SN Tested AOC List)    		 1/node
    1/node
    1/node    		 MINI SAS HD-SAS 29Px4+2x4P x2,INT,47/47/57/57CM,22/30AWG
    Fixed tool-less 2x 2.5" internal HDD bracket (2nd HDD required screws)
    -
    SuperCap Kit BTR-CV3108-TP2 1/node LSI 3108 CacheVault kit for SIOM based TwinPro, RoHS/REACH
    RAID Card AOC-S3108L-H8IR-16DD - LSI 3108 8 int 12Gb/s ports, 8xGen3, ROC - LP,16 HDD
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
