    SYS-F629P3-RTB

    Print

    Key Features

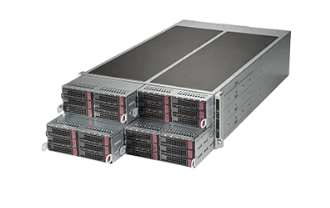

    • 4 Hot-plug System Nodes in 4U Each node supports:
    • 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
    • 2. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
      Supports Intel® Optane™ DCPMM††
    • 3. Expansion slots: 1 PCI-E 3.0 x16 (LP)
      1 PCI-E 3.0 x16 (for SIOM )
    • 4. SIOM Network card,
      1 dedicated IPMI LAN port
    • 5. 1 VGA, 2 USB 3.0 ports
    • 6. 8 Hot-swap 3.5" SATA3 drive bays
      M.2 Interface: PCI-E 3.0 x4
      M.2 Form Factor: 2260, 2280, 22110
      M.2 Key: M-Key
    • 7. 2x 8cm 14k RPM middle fans
    • 8. 1200W Redundant Power Supplies Titanium Level (96% Efficiency)
    Specifications
    Product SKUs
    SYS-F629P3-RTB
    • SuperServer F629P3-RTB (Black)

    Motherboard

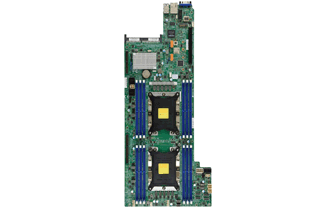

    Super X11DPFR-S

    Processor/Cache (per Node)
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
      Dual UPI up to 10.4GT/s
    • Support CPU TDP 70-165W with IVR
    Cores
    • Up to 28 Cores
    Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

    Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.

    System Memory (per Node)
    Memory Capacity
    • 12 DIMM slots
    • Up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.

    On-Board Devices
    Chipset
    • Intel® C621 chipset
    SATA
    • SATA3 (6Gbps)
    Network Controllers
    • Flexible networking via SIOM
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC

    Input / Output (per node)
    SATA
    • 14 SATA3 (6Gbps) ports
    LAN
    • SIOM flexible Network card
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    VGA
    • 1 VGA port

    System BIOS
    BIOS Type
    • 128Mb SPI Flash EEPROM with AMI BIOS

    Management
    Software
    Power Configurations
    • ACPI Power Management

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSE-F424AS2-R1K23BP

    Dimensions and Weight
    Width
    • 17.63" (448mm)
    Height
    • 6.96" (177mm)
    Depth
    • 29" (737mm)
    Package
    • 28.3" (W) x 15.0" (H) x 42.4" (D)
    Weight
    • Net Weight: 150 lbs (68.04 kg)
    • Gross Weight: 200 lbs (90.71 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • Hard drive activity LED
    • Network activity LEDs
    • Information LED (UID, Fan failure, Overheat)

    Expansion Slots (per node)
    PCI-Express
    • 1 PCI-E 3.0 x16 (Low-profile)
    • 1 PCI-E 3.0 x16 (SIOM)

    Drive Bays (per node)
    Hot-swap
    • 8 Hot-swap 3.5" SATA3 drive bays
    M.2
    • M.2 Interface: PCI-E 3.0 x4
    • M.2 Form Factor: 2260, 2280, 22110
    • M.2 Key: M-Key

    Backplane
    1 SAS/SATA backplane

    System Cooling (per node)
    Fans
    • 2x 8cm 14k RPM middle fans

    Power Supply (76mm Width)
    1200W Redundant Power Supplies with PMBus
    Total Output Power
    • 1000W/1200W
    Dimension
    (W x H x L)
    • 76 x 40 x 336 mm
    Input
    • 100-127Vac / 15-12A / 50-60Hz
    • 200-240Vac / 8.5-7A / 50-60Hz
    • 200-240Vdc / 8.5-7A (for CCC only)
    +12V
    • Max: 83A / Min: 0A (100-127Vac)
    • Max: 100A / Min: 0A (200-240Vac)
    • Max: 100A / Min: 0A (200-240Vdc)
    +5Vsb
    • Max: 4A / Min: 0A
    Output Type
    • 19 Pairs Gold Finger Connector
    Certification Platinum Level Certified95%+ Titanium Level
      [ Test Report ]

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    Part Number
    Qty
    Description
    Motherboard / Chassis MBD-X11DPFR-S
    CSE-F424AS2-R1K23BP
    4
    1
    Super X11DPFR-S Motherboard
    4U Chassis
    Backplane BPN-ADP-X11DPFR 4 Power distribution board for X11DPFR-S(N)
    Backplane BPN-SAS-F424-A2 4 2-port Fat Twin 6Gbps hot swappable HDD backplane, support up to 2x 3.5-inch SAS/SATA HDD
    Backplane BPN-SAS-F424-A6 4 6-port Fat Twin 6Gbps hot swappable HDD backplane, support up to 6x 3.5-inch SAS/SATA HDD
    Cable 1 CBL-0486L 12 2x2 to 2x2 15cm power cable HF. 18AWG
    Cable 2 CBL-OTHR-0022L 4 20 to 20 pin cable for BPN-ADP-F418LS,7.5cm, 28AWG,RoHS/REACH,PBF
    Cable 3 CBL-PWCD-0900 4 PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG
    Cable 4 CBL-SAST-0616 4 MINI SAS HD-4 SATA,6G,INT,50CM,50CM SB,30AWG
    Cable 5 CBL-SAST-1004-1 4 MINI SAS HD to 4X SATA,SB,INT,55 CM
    Heatsink / Retention SNK-P0068PSC 4 2U Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Heatsink / Retention SNK-P0069PSC 4 1.5U Proprietary 50-mm Tall Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform 2U Node Twin Series Servers
    Power Supply PWS-1K23A-1R 4 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
    Optional Parts List
      Part Number Qty Description
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
    Hide Parts List
