    SYS-2049P-TN8R

    Print

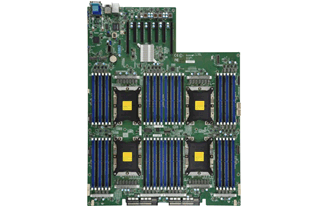

    Intergrated Board
    X11QPL
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • - 4-Way High Core Count VM Optimized
      - Cloud and Virtualization
      - Data Center
      - Scale-Out Density, VOD Delivery
    • 1. Quad Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
    • 2. 48 DIMMs; up to 12TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
      Supports Intel® Optane™ DCPMM††
    • 3. 5 PCI-E 3.0 x8 slots,
      2 PCI-E 3.0 x16 slots
    • 4. 1 GbE LAN ports via Intel i210
      1 dedicated IPMI LAN port
    • 5. 2 Hot-swap 2.5" SATA3 drive bays
      8 Hot-swap 2.5" U.2 NVMe SSD bays
    • 6. 2 M.2 M key (22110/2280)
    • 7. 4 heavy duty fans with optimal fan speed control
    • 8. 2200W Redundant Power Supplies Titanium Level (96%)
    Specifications
    Product SKUs
    SYS-2049P-TN8R
    • SuperServer 2049P-TN8R (Black)
    Motherboard

    Super X11QPL
    Processor/Cache
    CPU
    • Quad Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
      3 UPI up to 10.4GT/s
    • Support CPU TDP up to 205W
    Cores
    • Up to 28 Cores
    Note ‡ BIOS version 3.0 or above is required to support 2nd Gen Intel® Xeon® Scalable processors
    System Memory
    Memory Capacity
    • 48 DIMM slots
    • Up to 12TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933†/2666MHz ECC DDR4 RDIMM/LRDIMM
    Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.
    On-Board Devices
    Chipset
    • Intel® C621 chipset
    SATA
    • SATA3 via Intel C621; RAID 0, 1, 5, 10
    Network Connectivity
    • 1 Gigabit Ethernet port via Intel® i210
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC
    Input / Output
    SATA
    • 2 SATA3 (6Gbps) ports
    NVMe
    • 8 U.2 NVMe
    LAN
    • 1 RJ45 GbE LAN port
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (front)
    Video
    • 1 VGA Connector
    Serial Port / Header
    • 1 COM port (rear)
    System BIOS
    BIOS Type
    • 128Mb SPI Flash EEPROM with AMI BIOS
    Management
    Software
    Power Configurations
    • ACPI Power Management
    • Power-on mode for AC power recovery
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-218UTS-R1K62P
    Dimensions and Weight
    Width
    • 17.2" (437mm)
    Height
    • 3.5" (89mm)
    Depth
    • 30.2" (767mm)
    Weight
    • Net Weight: 47.5 lbs (21.55 kg)
    • Gross Weight: 73.5 lbs (33.34 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power status LED
    • HDD activity LED
    • Network activity LEDs
    • System information (overheat/UID) LED
    Expansion Slots
    PCI-Express
    • 5 PCI-E 3.0 x8 slots
    • 2 PCI-E 3.0 x16 slots

      (4 CPUs need to be installed for full access to PCI-E slots and onboard controllers.
    Drive Bays
    Hot-swap
    • 2 Hot-swap 2.5" SATA3 drive bays
    • 8 Hot-swap 2.5" U.2 NVMe SSD bays
    M.2
    • 2 M.2 M key for NVMe/SATA3 (22110/2280)
    System Cooling
    Fans
    • 4 heavy duty fans with optimal fan speed control
    Power Supply
    2200W Redundant Titanium Level Power Supplies with PMBus
    Total Output Power
    • 1200W/1800W/1980W/2090W/2200W
      (UL/cUL only)
    Dimension
    (W x H x L)
    • 106.5 x 82.4 x 203.5 mm
    Input
    • 1200W: 100-127 Vac / 14-11 A / 50-60 Hz
    • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
    • 1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz
    • 2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz
    • 2200W: 220-240 Vac / 12-11 A / 50-60 Hz (UL/cUL only)
    • 2090W: 180-220 Vac / 14-11 A / 50-60 Hz (UL/cUL only)
    • 2090W: 230-240 Vdc / 10-9.8 A (CCC only)
    +12V
    • Max: 100A / Min: 0A (1200W)
    • Max: 150A / Min: 0A (1800W)
    • Max: 165A / Min: 0A (1980W)
    • Max: 174.17A / Min: 0A (2090W)
    • Max: 183.3A / Min: 0A (2200W)
    • Max: 174.17A / Min: 0A (2090W)
    12Vsb
    • Max: 2A / Min: 0A
    Output Type
    • Gold Finger (connector on M/P)
    Certification Titanium Level96% Titanium Level
    [ Test Report ]
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
      -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    		Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11QPL
    CSE-218LTS-R2K21P     		1
    1     		Super X11QPL Motherboard
    2U Chassis
    Backplane BPN-NVME3-218L-S2 1 2U Backplane Supports 8 x 2.5" NVMe and 2 x 2.5" SAS3/SATA3 Storage Media,HF,RoHS
    Cable 1 CBL-0097L-03 1 MINI SAS-4 SATA,INT,51CM,51CM SB,30AWG
    Cable 2 CBL-PWEX-1076 1 PWEX,2X4F/P4.2 TO 2X2F/P4.2 x2,BLK*4,YEL*4,30CM,18AWG
    Cable 3 CBL-SAST-1044 1 SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 57CM,32AWG,85
    Cable 4 CBL-SAST-1045 1 SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 62CM,32AWG,85
    Cable 5 CBL-SAST-1046 1 SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 39CM,32AWG,85
    Cable 6 CBL-SAST-1048 1 SLIMLINE SAS x8 to SLIMLINE SAS x8, INT, 10CM,32AWG,85
    Heatsink / Retention SNK-P0068PS 4 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Power Supply PWS-2K21A-2R1 2 2U 2200W power supply with PMBus and 200-240Vdc input,RoHS
    FAN FAN-0198L4 2 80x80x38 mm, 14.9K RPM for SC218L Low Cost 4-way Server
