    SYS-5019S-W4TR

    Print

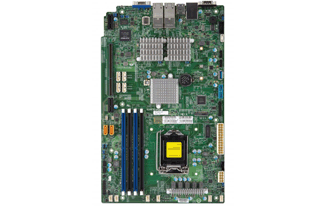

    Intergrated Board
    X11SSW-4TF
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • - Mainstream, WIO
    • 1. Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
    • 2. Intel® C236 chipset
    • 3. 4 Hot-swap 3.5" SATA3 drive bays
    • 4. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
    • 5. 1 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8
    • 6. 4x 10GBase-T ports with Intel® X540, 1 dedicated IPMI port
    • 7. 1 VGA, 1 COM, 2 USB 3.0, 2 USB 2.0
    • 8. 500W Redundant Platinum Level power supplies
    Specifications
    Product SKUs
    SYS-5019S-W4TR
    • SuperServer 5019S-W4TR (Black)

    Motherboard

    Super X11SSW-4TF

    Processor/Cache
    CPU
    • Single Socket H4 (LGA 1151) supports:
    • Intel® Xeon® processor E3-1200 v6/v5,
    • CPU TDP up to 80W
    Note BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors

    System Memory
    Memory Capacity
    • 4x 288-pin DDR4 DIMM slots
    • Up to 64GB DDR4 ECC UDIMM
    Memory Type
    • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
    DIMM Sizes
    • 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)

    On-Board Devices
    Chipset
    • Intel® C236 chipset
    SATA
    • SATA3 (6Gbps) via C236 controller
    • RAID 0, 1, 5, 10 support
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • ASPEED AST2400 BMC
    Network Controllers
    • Quad LAN with Intel® X540 10GBase-T Ethernet Controller
    • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    Video
    • ASPEED AST2400 BMC

    Input / Output
    SATA
    • 6 SATA3 (6Gbps) ports
    LAN
    • 4 RJ45 10GBase-T LAN ports
    • 1 RJ45 dedicated IPMI LAN port
    USB
    • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
    • 6 USB 2.0 ports (2 rear + 4 headers)
    Video
    • 1 VGA port
    Serial Port / Header
    • 2 COM ports (1 rear, 1 header)
    SuperDOM
    • 2 SuperDOM (Disk on Module) ports with built-in power

    PC Health Monitoring
    Voltage
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
    FAN
    • Total of 6 fan headers supporting up to 6 fans
    • 3 fans with tachometer status monitoring
    • Status monitor for speed control
    • Status monitor for on/off control
    • Low noise fan speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • I2C temperature sensing logic
    • Thermal Monitor 2 (TM2) support
    • PECI
    LED
    • System Information LED
    • Suspend static indicator LED
    • UID/Remote UID
    Other Features
    • Chassis intrusion detection
    • Chassis intrusion header
    • RoHS, Halogen Free
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-815TQC-R504WB3

    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 25.6" (650mm)
    Package
    • 23.5" (W) x 8.5" (H) x 33.7" (L)
    Weight
    • Net Weight: 24 lbs (10.9 kg)
    • Gross Weight: 35 lbs (15.9 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    • Information LED (temp., status)

    Expansion Slots
    PCI-Express
    • 1 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8
    M.2
    • 1x M.2 Interface: PCI-E 3.0 x4
    • Form Factor: 2260, 2280, 22110
    • Key: M-Key
    • Double Height Connector

    Drive Bays
    Hot-swap
    • 4 Hot-swap 3.5" SATA3 drive bays

    Peripheral Drives
    DVD-ROM
    • 1 Slim DVD-ROM drive bay

    Backplane
    SAS/SATA HDD Backplane
    (SAS support requires optional SAS controller)

    System Cooling
    Fans
    • 4x 40x56mm counter-rotation PWM fan
    • Optional 2x 40x56mm counter-rotation fans

    Power Supply with Power Distributor
    500W high-efficiency (94+%) power supply w/ PMBus
    With Power Distributor
    • +5V: 25 Amp
    • +3.3V: 12 Amp
    • -12V: 0.6 Amp
    Certification Platinum Level Certified94%+    Platinum Certified
      [ Test Report ]

    System BIOS
    BIOS Type
    • 8MB SPI Flash EEPROM with AMI BIOS

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11SSW-4TF
    CSE-815TQC-R504WB3     		1
    1    		 Super X11SSW-4TF Motherboard
    1U Chassis
    Backplane BPN-SAS3-815TQ-N4 1 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices
    Cable 1 CBL-0180L-01 1 SATA,INT,ROUND,SET OF 4,ST-RA 70/59/48/38CM,26AWG
    Cable 2 CBL-CDAT-0660 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,27CM,28AWG
    FAN 1 FAN-0156L4 4 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
    Air Shroud MCP-310-19002-0N 1 SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB
    Manual MNL-1990-QRG 1 5019S-W4TR Quick Reference Guide
    Riser Card RSC-W-68 1 1U LHS WIO w/ 2 PCI-E x8 slots or PCI-E x16 slot
    Heatsink / Retention SNK-P0046P 1 1U PASSIVE CPU HS FOR INTEL LGA1156
    Power Supply PWS-504P-1R 2 500W 1U Redundant PWS W/ 54.5MM Wide
    Optional Parts List

    		 Part Number
    		 Qty
    		 Description
    3.5" to 2.5" Converter Tray MCP-220-00043-0N - Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
    DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT4
    DVM-TEAC-DVD-SBT4    		 1
    1    		 TEAC slim DVD-ROM SATA drive
    PHILPS slim DVD-RW SATA drive
    DVD-ROM Accessory MCP-220-81502-0N 1 Slim SATA DVD mounting kit
    Internal 2.5" HDD Tray (FDD slot) MCP-220-83601-0B 1 Black FDD dummy tray support 1x 2.5" slim HDD
    Internal 2.5" HDD Tray (DVD slot) MCP-290-00036-0B 1 Black DVD dummy tray support 1x 2.5" slim HDD
    Cable for internal HDD CBL-0484L
    CBl-0289L    		 2
    1    		 55cm 30AWG SATA straight to straigh cable
    Y split, big 4 pin to two RA SATA power estenstion 30cm
    Hot-swap 2.5" kit (FDD slot) MCP-220-81504-0N 1 Single slim 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
    Hot-swap 2.5" kit (DVD slot) MCP-220-81506-0N 1 Single slim 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
    Cooling Fan FAN-0156L4 - 40x40x56mm 13K-11K RPM Counter-rotating Fan
    Storage Controller card & cable AOC-S3108L-H8iR
    & 1x CBL-SAST-0699
    AOC-S3108L-H8iR-16DD
    & 1x CBL-SAST-0699
    AOC-S3008L-L8i
    & 1x CBL-SAST-0699
    AOC-S3008L-L8e
    & 1x CBL-SAST-0699     		- Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
    RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
    Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
    16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
    Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,
    63HDD, RAID 0, 1, 10
    Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,
    122HDD HBA
    CacheVault BTR-CV3108-1U1
    BTR-TFM8G-LSICVM02 &
    BKT-BBU-BRACKET-05    		 -
    -    		 CacheVault for Broadcom 3108 with SuperCap mounting in 1Y 40x56 fan tray
    CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCI-E location
    Network Card(s) AOC-SGP-i2
    AOC-SGP-i4
    AOC-STGN-i2S
    AOC-STGF-i2S
    AOC-STG-B4S
    AOC-STGS-i2T
    AOC-S25G-b2S
    AOC-S25G-m2S    		 -
    -
    -
    -
    -
    -
    -
    -    		 Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
    Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
    Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
    Front Bezels CSE-PTFB-813LB
    CSE-PTFB-813-02B    		 -
    -    		 Black front bezels
    Black Front Bezel w/ Round Venting Holes
    TPM security module AOM-TPM-9665V
    AOM-TPM-9655V    		 1
    1    		 TPM 2.0, vertical form factor
    TPM 1.2, vertical form factor
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1    		 -
    -    		 3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
