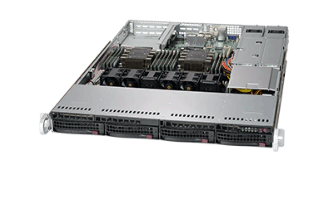

    SYS-6019P-WTR

    Print

    Key Features

    • - Web Server, Firewall Apps.
      - Corporate-Wins, DNS, Print, Login
      - Gateway, provisioning servers
      - Compact Network Appliance
      - Cloud Computing

    • 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
    • 2. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
      Supports Intel® Optane™ DCPMM††
    • 3. 2 PCI-E 3.0 x16 (FHHL) slots,
      1 PCI-E 3.0 x8 (LP) slot,
      1 PCI-E 3.0 x16 for Add-on-Module (Support SAS3 Storage controller),
      1 PCI-E 3.0 x4 NVMe M.2 slot
    • 4. 4 Hot-swap 3.5" SAS3/SATA3 drive bays
    • 5. 2 1GbE LAN ports via Intel C621
    • 6. 1 VGA, 4 USB 3.0 (rear)
    • 7. 750W Redundant Power Supplies Platinum Level High-efficiency
    Specifications
    Product SKUs
    SYS-6019P-WTR
    • SuperServer 6019P-WTR (Black)

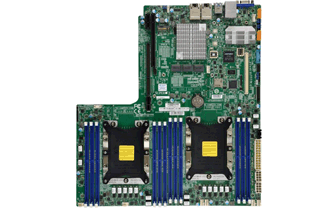

    Motherboard

    Super X11DDW-L

    Processor/Cache
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
      Dual UPI up to 10.4GT/s
    • Support CPU TDP 70-165W*
    Cores
    • Up to 28 Cores
    Note * Certain high frequency optimized CPUs within 165W TDP are not supported, such as Intel Gold 6144, 6146, 6244 and 6246.
    Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

    Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.

    System Memory
    Memory Capacity
    • 12 DIMM slots
    • Up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.

    On-Board Devices
    Chipset
    • Intel® C621 chipset
    SATA
    • SATA3 (6Gbps); RAID 0, 1, 5, 10
    Network Controllers
    • Dual LAN with Gigabit Ethernet from C621
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2500 BMC

    Input / Output
    SATA
    • 4 SATA3 (6 Gbps) ports
    LAN
    • 2 RJ45 Gigabit Ethernet ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 4 USB 3.0 ports (rear)
    Video
    • 1 VGA port
    DOM
    • 2 SuperDOM (Disk on Module) ports

    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM

    Management
    Software
    Power Configurations
    • ACPI / APM Power Management

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model

    Dimensions and Weight
    Width
    • 17.2" (437mm)
    Height
    • 1.7" (43mm)
    Depth
    • 25.6" (650mm)
    Gross Weight
    • 46 lbs (20.9kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • HDD activity LED
    • Network activity LEDs
    • Universal Information (UID) LED

    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 (FHHL) slots
    • 1 PCI-E 3.0 x8 (LP) slot
    • 1 PCI-E 3.0 x16 for Add-on-Module (AOM)
    • 1 PCI-E 3.0 x4 NVMe M.2 slot


    • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

    Drive Bays
    Hot-swap
    • 4 Hot-swap 3.5" SATA3 drive bays

    Backplane
    SAS/SATA HDD Backplane

    System Cooling
    Fans
    • 4 Counter-rotating 4cm PWM fans

    AC/DC240V Input Redundant Power Supply
    700W/750W Redundant Power Supplies with PMBus
    Total Output Power
    • 700W/750W
    Dimension
    (W x H x L)
    • 54.5 x 40.25 x 320 mm
    Input
    • 100 - 140Vac / 8 - 6A / 50-60Hz
    • 200 - 240Vac / 4.5 - 3.8A / 50-60Hz
    • 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
    +12V
    • Max: 58A / Min: 0.5A (100 - 140Vac)
    • Max: 62A / Min: 0.5A (200 - 240Vac)
    • Max: 62A / Min: 0.5A (200 - 240Vdc)
      (CB/CCC Only)
    +5V sb
    • Max: 3A / Min: 0A
    Output Type
    • Gold Finger Connector Mating with Molex 45984-4343
    Certification Platinum Level Certified
      Platinum Certified
      [ Test Report ]

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    Part Number
    Qty
    Description
    Motherboard / Chassis MBD-X11DDW-L
    CSE-815TQC-R706WB2
    1
    1
    Super X11DDW-L Motherboard
    1U Chassis
    Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5
    Storage Cable CBL-SAST-0388L-02 1 MINI SAS-4 SATA,INT,75/75/90/90CM,90CM SB,30AWG
    Rubber Pad MCP-150-00015-0B 2 Rubber pad, 3.0mm H, 10x10mm
    Air Shroud MCP-310-19019-0B 2 SC113/SC116/SC815/SC515, DP X11DDW Mylar air shroud
    Air Block MCP-320-00061-0B 1 CR foam for air block in SC113/SC116/SC815
    Manual MNL-1943-QRG 1 SYS-6019P-WT /WTR Quick Reference Guide,HF,RoHS
    Riser Card (left) RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
    Riser Card (right) RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
    Heatsink w/ Retention SNK-P0067PSMB 2 1U Passive High Performance Front CPU Heat Sink w/ an 18-mm Wide Middle Air Channel for X11 Purley Platform Equipped w/ a Narrow Retention Mechanism/Bolster
    * Power Supply PWS-706P-1R 2 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF
    * Power Cord CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
    * FAN FAN-0156L4 4 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
    * Rail Set MCP-290-00054-0N 1 Rail set, quick/quick, optional for 1U 17.2"W SC815
    Notes:
    1. Parts with * come with the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List
      Part Number Qty Description
    3.5" to 2.5" Converter Tray MCP-220-00043-0N - Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
    DVD-ROM / RW & Mounting Kit DVM-TEAC-DVD-SBT5
    & MCP-220-81502-0N
    DVM-TEAC-DVDRW-SBT5
    & MCP-220-81502-0N
    DVM-PLDS-DVDRW-SBT5
    & MCP-220-81502-0N
    1 BLACK TEAC SLIM DVD SATA DRIVE, HF, RoHS
    Slim SATA DVD mounting kit
    BLACK TEAC SLIM DVD-RW SATA DRIVE, HF, RoHS
    Slim SATA DVD mounting kit
    PHILIPS SLIM BLACK DVD-RW SATA DRIVE, HF, RoHS/REACH
    Slim SATA DVD mounting kit
    Internal 2.5" HDD Tray
    (FDD Slot)
    MCP-220-83601-0B 1 Black FDD dummy tray support 1x 2.5" slim HDD
    Internal 2.5" HDD Tray
    (DVD Slot)
    MCP-290-00036-0B 1 Black DVD dummy tray support 1x 2.5" slim HDD
    Cable for internal HDD CBL-SAST-0624
    CBL-0289L
    2
    1
    SATA,INT,ROUND,ST-ST,70CM,30AWG
    Y split, big 4 pin to two RA SATA power extension 30cm, 20AWG
    Add-on card for internal M.2 NVMe AOC-SLG3-2M2 - Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
    Intel VROC RAID Key AOC-VROCINTMOD
    AOC-VROCSTNMOD
    AOC-VROCPREMOD
    1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    Intel VROC Standard, RAID 0, 1, 10
    Intel VROC Premium, RAID 0, 1, 5, 10
    Additional Fan FAN-0156L4 - 40x40x56 mm 13K-11K RPM Counter-rotating Fan
    Storage Controller
    Card(s) & Cables(s)
    AOM-S3108M-H8 &
    1x CBL-SAST-0699 &
    1x FAN-0156L4
    AOC-S3108L-H8IR-16DD
    & 1x CBL-SAST-0699
    AOC-S3008L-L8i &
    1x CBL-SAST-0699
    AOC-S3008L-L8e &
    1x CBL-SAST-0699
    - Supermicro LP, 8 internal ports (12Gb/s) SAS Mezzanine;
    RAID 0, 1, 5, 6, 10, 50, 60;
    40x40x56 mm 13K-11K RPM Counter-rotating Fan
    Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD;
    RAID 0, 1, 5, 6, 10, 50, 60
    Standard LP, 8 internal ports (12Gb/s) Gen-3, 63HDD;
    RAID 0, 1, 10
    Standard LP, 8 internal ports (12Gb/s) Gen-3, 122HDD;
    HBA
    CacheVault (for 3108) BTR-CV3108-1U1

    BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
    BTR-TFM8G-LSICVM02 & MCP-240-00127-0N
    1 CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray
    CacheVault for Broadcom 3108; SuperCap mounting bracket for PCI-E location
    CacheVault for Broadcom 3108; SuperCap mounting bracket for 2.5" HDD location
    Network Card(s) AOC-SGP-i2
    AOC-SGP-i4
    AOC-STGS-i1T
    AOC-STGS-i2T
    AOC-STG-i4T
    AOC-STGN-i1S
    AOC-STGN-i2S
    AOC-STG-i4S
    AOC-S25G-i2S
    AOC-MCX555A-ECAT

    AOC-MCX556A-ECAT
    - Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2
    Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350AM4
    Standard LP, 1x 10GbE RJ45, PCI-E x4, Intel® X550-AT
    Standard LP, 2x 10GbE RJ45, PCI-E x4, Intel® X550-AT2
    Standard LP, 4x 10GBE RJ45, PCI-E x8, Intel® XL710-BM1
    Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel® 82599EN
    Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES
    Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel® XL710-BM1
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Intel® XXV710 + Marvell Unionville
    Standard LP, 1x 100GbE (and EDR IB) QSFP28, PCI-E x16, Mellanox® ConnectX-5
    Standard LP, 2x 100GbE (and EDR IB) QSFP28, PCI-E x16, Mellanox® ConnectX-5
    Front Bezel CSE-PTFB-813-02
    CSE-PTFB-813-02B
    1 Front Bezel w/ Round Venting Holes
    Black Front Bezel w/ Round Venting Holes
    Cable Management Arm MCP-290-00085-0N 1 Supermicro Cable Management Arm for 1U Chassis
    TPM security module (optional, not included) AOM-TPM-9670V
    AOM-TPM-9671V
    1 SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
    SPI capable TPM 1.2 with Infineon 9670 controller; vertical form factor
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1
    - 3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
    Hide Parts List
