    SYS-1019P-WTR

    Print

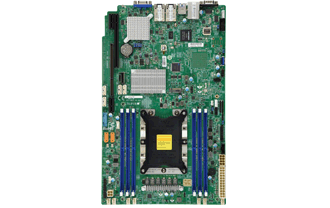

    Intergrated Board
    X11SPW-TF

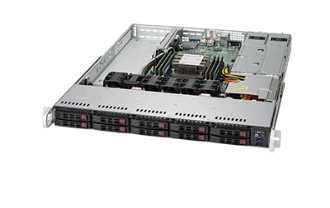

    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • - DB Processing & Storage
      - Data Center Applications
    • 1. Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake)‡
    • 2. 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
    • 3. 2 PCI-E 3.0 x16 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
    • 4. 10 Hot-swap 2.5" SATA3 drive bays (2 hybrid NVMe w/ AOC option)
    • 5. 2x 10GBase-T ports with Intel X722 + X557
    • 6. 1 VGA, 1 COM, 4 USB 3.0, 2 USB 2.0
    • 7. 500W Redundant Platinum Level power supplies
    Specifications
    Product SKUs
    SYS-1019P-WTR
    • SuperServer 1019P-WTR (Black)

    Motherboard

    Super X11SPW-TF

    Processor/Cache
    CPU
    • Single Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡
    • Support CPU TDP 70-205W*
    Cores
    • Up to 28 Cores
    Note * Certain high frequency optimized CPU are not supported, such as Intel Gold 6250 and 6256. Please contact Supermicro Technical Support for additional information.
    Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

    System Memory
    Memory Capacity
    • 6 DIMM slots
    • Up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.

    On-Board Devices
    Chipset
    • Intel® C622 chipset
    SATA
    • SATA3 (6Gbps); RAID 0, 1, 5, 10
    Network Controllers
    • Dual 10GBase-T LAN with Intel® X722 + X557
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2500 BMC

    Input / Output
    SATA
    • 10 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 10GBase-T LAN ports
    • 1 RJ45 dedicated IPMI LAN port
    USB
    • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
    • 7 USB 2.0 ports (2 rear + 5 headers)
    Video
    • 1 VGA port
    Serial Port / Header
    • 2 COM ports (1 rear, 1 header)
    SuperDOM
    • Ports default connect to hard drive bays

    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM

    Management
    Software
    Power Configurations
    • ACPI / APM Power Management

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-116AC2-R504WB

    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 23.5" (597mm)
    Package
    • 24" (W) x 8" (H) x 32" (L)
    Weight
    • Gross Weight: 27 lbs (12.25 kg)
    • Net Weight: 15.5 lbs (7.03 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    • Information LED (temp., status)

    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 (FHFL) slots
    • 1 PCI-E 3.0 x8 (LP) slot
    M.2
    • 1x M.2 Interface: PCI-E 3.0 x4 and SATA
    • Form Factor: 2280, 22110
    • Key: M-Key
    • Double Height Connector

    Drive Bays
    Hot-swap
    • 10 Hot-swap 2.5" SATA3 drive bays
    • 2 NVMe with AOC (option)

    System Cooling
    Fans
    • 5 counter-rotation 40x56mm PWM fans
    • 1 fan for AOC cooling (option)

    Power Supply
    500W Redundant Power Supplies with PMBus
    Total Output Power
    • 500W: 100 – 240Vac
    Dimension
    (W x H x L)
    • 54.5 x 40.25 x 320 mm
    Input
    • 100-240Vac, 50-60Hz, 6.1-2.6A
    +12V
    • Max: 42A / Min: 0.5A
    +5Vsb
    • Max: 3A / Min: 0A
    Output Type
    • Gold Finger Connector Mating with Molex 45984-4343
    With Power Distributor
    • +5V: 25A
    • +3.3V: 12A
    • -12V: 0.6A
    Certification Platinum Level Certified   Platinum Certified
      [ Test Report ]

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11SPW-TF
    CSE-116AC2-R504WB     		1
    1    		 Super X11SPW-TF Motherboard
    1U Chassis
    Backplane BPN-SAS3-116A-N2 1 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
    Cable 1 CBL-0207L 2 SATA,INT,ROUND,ST-ST,59CM,26AWG
    Cable 2 CBL-CDAT-0662 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
    Cable 3 CBL-SAST-0591 1 MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,75CM,75CM SB,30AWG
    Cable 4 CBL-SAST-0657 1 MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG
    FAN 1 FAN-0101L4 5 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
    Manual MNL-1923-QRG 1 1019P-WTR, QRG,HF,RoHS/REACH
    Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
    Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
    Heatsink / Retention SNK-P0067PS 1 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Power Supply PWS-504P-1R 2 500W 1U Redundant PWS W/ 54.5MM Wide
    Optional Parts List

    		 Part Number
    		 Qty
    		 Description
    GPU Optional Parts FAN-0141L4
    MCP-310-81504-0B    		 2
    1    		 40x40x56mm 20.5K RPM, Counter-rotation fan
    Air shroud for Tesla T4 GPU
    Cooling Fan FAN-0101L4 - 40x40x56mm 14.4K-10.7K RPM Counter-rotating Fan
    Storage Controller card & cable AOC-S3108L-H8iR
    & 2x CBL-SAST-0593
    AOC-S3108L-H8iR-16DD
    & 2x CBL-SAST-0593
    AOC-S3008L-L8i
    & 2x CBL-SAST-0593
    AOC-S3008L-L8e
    & 2x CBL-SAST-0593     		- Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
    RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
    Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
    16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
    Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,
    63HDD, RAID 0, 1, 10
    Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,
    122HDD HBA
    CacheVault BTR-CV3108-1U1
    BTR-TFM8G-LSICVM02 &
    BKT-BBU-BRACKET-05    		 -
    -    		 CacheVault for Broadcom 3108 with SuperCap mounting in 1Y 40x56 fan tray
    CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCI-E location
    Network Card(s) AOC-SGP-i2
    AOC-SGP-i4
    AOC-STGN-i2S
    AOC-STGF-i2S
    AOC-STG-B4S
    AOC-STGS-i2T
    AOC-S25G-b2S
    AOC-S25G-m2S    		 -
    -
    -
    -
    -
    -
    -
    -    		 Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
    Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
    Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
    NVMe Optional Parts
    (Complete System with NVMe Drives)    		 AOC-SLG3-2E4
    CBL-SAST-0590
    MCP-220-00127-0B    		 1
    2
    2    		 Standard LP, Dual-Port NVMe Internal Host Bus Adapter
    Internal Mini-SAS HD cable for PCIe SSD NVMe, 12Gb/s 70cm 30AWG
    Black Gen-3 2.5" NVMe drive tray, Orange tab with lock
    Front Bezels MCP-210-11601-0B 1 Black front bezels
    TPM security module AOM-TPM-9670V
    AOM-TPM-9671V    		 1
    1    		 TPM 2.0, vertical form factor
    TPM 1.2, vertical form factor
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1    		 -
    -    		 3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
