    SYS-1019S-MC0T

    Print
    Intergrated Board

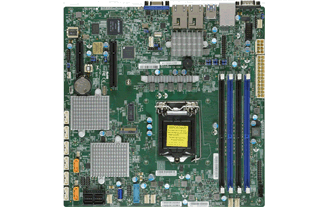

    X11SSH-CTF
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • - Storage HN, VM, Hosting
      - Mainstream, Compact File Server
    • 1. Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
    • 2. Intel® C236 chipset
    • 3. 8 Hot-swap 2.5" SAS/SATA3 Drive Bays
    • 4. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
    • 5. 1 PCI-E 3.0 x8 AOC slot
    • 6. 2x 10GBase-T ports with Intel® X550
    • 7. Integrated IPMI 2.0 and KVM with Dedicated LAN
    • 8. 1 VGA, 1 COM, 2 USB 3.0, 2 USB 2.0
    • 9. 340W High-efficiency Power Supply
    Specifications
    Product SKUs
    SYS-1019S-MC0T
    • SuperServer 1019S-MC0T (Black)

    Motherboard

    Super X11SSH-CTF

    Processor/Cache
    CPU
    • Single Socket H4 (LGA 1151) supports:
    • Intel® Xeon® processor E3-1200 v6/v5,
      Intel® 7th/6th Gen Core™ i3,
      Intel® Pentium®,
      Intel® Celeron® processors
    • CPU TDP up to 80W
    Note BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors

    System Memory
    Memory Capacity
    • 4x 288-pin DDR4 DIMM slots
    • Up to 64GB DDR4 ECC UDIMM
    Memory Type
    • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
    DIMM Sizes
    • 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)

    On-Board Devices
    Chipset
    • Intel® C236 chipset
    SATA
    • SATA3 (6 Gbps) via C236 controller
    • RAID 0, 1, 5, 10
    SAS
    • Broadcom 3008 SAS3 (12Gbps) controller;
      SW RAID 0, 1, 10
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • ASPEED AST2400 BMC
    Network Controllers
    • Dual Intel® X550 10GBase-T LAN ports
    • Virtual Machine Device Queues reduce I/O overhead
    • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    Video
    • ASPEED AST2400 BMC

    Input / Output
    SATA
    • 8 SATA3 (6Gbps) ports
    SAS
    • 8 SAS3 (12Gbps) ports
    LAN
    • 2 RJ45 10GBase-T LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
    • 6 USB 2.0 ports (2 rear + 4 headers)
    Video
    • 1 VGA port
    Serial Port / Header
    • 2 COM ports (1 rear, 1 header)
    SuperDOM
    • 2 SuperDOM (Disk on Module) ports with built-in power

    PC Health Monitoring
    Voltage
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
    FAN
    • Total of 6 fan headers supporting up to 6 fans
    • 4 fans with tachometer status monitoring
    • Status monitor for speed control
    • Status monitor for on/off control
    • Low noise fan speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • I2C temperature sensing logic
    • Thermal Monitor 2 (TM2) support
    • PECI
    LED
    • System Information LED
    • Suspend static indicator LED
    • UID/Remote UID
    Other Features
    • Chassis intrusion detection
    • Chassis intrusion header
    • RoHS, Halogen Free
    Chassis
    Form Factor
    • 1U Rackmount
    Model

    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 19.98" (507mm)
    Package
    • 8.5" (H) x 24" (W) x 29.5" (D)
    Weight
    • Gross Weight: 31 lbs (14.1 kg)
    • Net Weight: 18.5 lbs (8.4 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • 2 Network activity LEDs
    • System Information LED

    Expansion Slots
    PCI-E
    • 1 PCI-E 3.0 x8
    M.2
    • 1x M.2 Interface: SATA and PCI-E 3.0 x4
    • Form Factor: 2260
    • Key: M-Key
    • Double Height Connector

    Drive Bays
    Hot-swap
    • 8 Hot-swap 2.5" SAS/SATA3 drive bays

    Backplane
    SAS3/SATA HDD Backplane
    (SAS support requires optional SAS controller)

    System Cooling
    Fans
    • 4x 4cm chassis internal fan
    • Optional 2x 40x28mm PWM fan

    Power Supply
    340W AC power supply w/ PFC
    AC Voltage
    • 100-240 V, 50-60 Hz, 4.2-1.8 Amp
    +5V
    • Max: 16 Amp / Min: 0.5A
    +12V
    • Max: 28 Amp / Min: 0.5A
    +3.3V
    • Max: 15 Amp
    +5V standby
    • Max: 3 Amp
    -12V
    • Max: 0.5 Amp
    Certification Platinum Level Certified     Platinum Level


    System BIOS
    BIOS Type
    • 8MB SPI Flash EEPROM with AMI BIOS

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11SSH-CTF
    CSE-113MFAC2-341CB     		1
    1    		 Super X11SSH-CTF Motherboard
    1U Chassis
    Air Shroud MCP-310-19007-0N 1 SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
    Backplane BPN-SAS3-113A-N2 1 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
    Cable 1 CBL-SAST-0568 2 MINI SAS HD,12G,INT,35CM,30AWG
    Manual MNL-1844-QRG 1 1019S-MC0T,QRG,HF,RoHS/REACH
    Riser Card RSC-RR1U-E8 1 RSC-RR1U-E8
    Heatsink / Retention SNK-P0046P 1 1U PASSIVE CPU HS FOR INTEL LGA1156
    Cooling Fan FAN-0154L4 4 40x40x28mm 22.5K RPM Cooling Fan
    Power Supply PWS-341P-1H 1 1U 340W Multi Output with PMBus Power Supply 24Pin
    Optional Parts List

    		 Part Number
    		 Qty
    		 Description
    DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT5
    DVM-PLDS-DVDRW-SBT5    		 1
    1    		 TEAC slim DVD-ROM SATA drive
    PHILPS slim DVD-RW SATA drive
    DVD-ROM Accessory MCP-220-81502-0N 1 Slim SATA DVD mounting kit
    Cooling Fan FAN-0154L4 2 40x40x28mm 22.5K RPM, Middle Cooling Fan
    Storage Controller card & cable AOC-S3108L-H8iR
    & 2x CBL-SAST-0532
    AOC-S3108L-H8iR-16DD
    & 2x CBL-SAST-0532     		- Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
    RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
    Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
    16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
    Network Card(s) AOC-SGP-i2
    AOC-SGP-i4
    AOC-STGN-i2S
    AOC-STGF-i2S
    AOC-STG-B4S
    AOC-STGS-i2T
    AOC-S25G-b2S
    AOC-S25G-m2S    		 -
    -
    -
    -
    -
    -
    -
    -    		 Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
    Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
    Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
    Front Bezels MCP-210-11601-0B 1 Black front bezels
    TPM security module AOM-TPM-9665V
    AOM-TPM-9655V    		 1
    1    		 TPM 2.0, vertical form factor
    TPM 1.2, vertical form factor
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1    		 -
    -    		 3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
