SYS-5019P-M

Intergrated Board

Views Angled Views Top Views Front Views Rear Views

Key Features

- Web Hosting, VM
- Compact Network Appliance
1. Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake)‡
2. 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
3. 1 PCI-E 3.0 x16 slot (FH, HL)
4. 4 Hot-swap 3.5" SATA3 bays w/ RAID
5. 2x 1GbE with Marvell® 88E1512
6. Integrated IPMI 2.0 and KVM with Dedicated LAN
7. 1 VGA, 1 COM, 2 USB 3.0, 2 USB 2.0
8. 350W High-efficiency Power Supply Platinum Level Certified

Specifications

Product SKUs
SYS-5019P-M
SuperServer 5019P-M (Black)

Motherboard

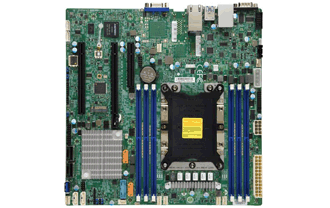

Super X11SPM-F

Processor/Cache

CPU
Single Socket P (LGA 3647)

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors^‡

Support CPU TDP 70-165W

Cores
Up to 28 Cores

Note ^‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.

System Memory

Memory Capacity
6 DIMM slots

Up to 1.5TB 3DS ECC DDR4-2933MHz^† RDIMM/LRDIMM

Memory Type
2933^†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note ^† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

On-Board Devices

Chipset
Intel® C621 chipset

SATA
SATA3 (6Gbps) via C621 controller

RAID 0, 1, 5, 10 support

Network Controllers
Dual Gigabit Ethernet LAN with Marvell® 88E1512

IPMI
Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Video
ASPEED AST2500 BMC

Input / Output

SATA
12 SATA3 (6Gbps) ports

LAN
2 RJ45 1GbE LAN ports

1 RJ45 Dedicated IPMI LAN port

USB
5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)

6 USB 2.0 ports (2 rear + 4 headers)

Video
1 VGA port

Serial Port / Header
2 COM ports (1 rear, 1 header)

SuperDOM
2 SuperDOM (Disk on Module) ports with built-in power

System BIOS

BIOS Type
AMI UEFI

Management

Software
Intel® Node Manager

IPMI 2.0

KVM with dedicated LAN

NMI

SPM, SUM

SuperDoctor® 5

Watch Dog

Power Configurations
ACPI Power Management

PC Health Monitoring

CPU
Monitors for CPU Cores, Chipset Voltages, Memory.

4+1 Phase-switching voltage regulator

FAN
Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature
Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis
Form Factor
1U Rackmount

Model
CSE-813MFTQC-350CB2

Dimensions and Weight
Height
1.7" (43mm)

Width
17.2" (437mm)

Depth
19.85" (503mm)

Package
8.5" (H) x 24" (W) x 29.5" (D)

Weight
Gross Weight: 30.4 lbs (13.8 kg)

Net Weight: 17.6 lbs (8 kg)

Available Colors
Black

Front Panel
Buttons
Power On/Off button

System Reset button

LEDs
Power LED

Hard drive activity LED

Network activity LEDs

System Information LED

Expansion Slots

PCI-Express
1 PCI-E 3.0 x16 slot (FH, HL)

M.2
1x M.2 Interface: PCI-E 3.0 x4

Form Factor: 2242, 2280

Key: M-Key

Double Height Connector

Drive Bays / Storage
Hot-swap
4 Hot-swap 3.5" SATA3 drive bays

Peripheral Drives
Optional
Optional slim optical device bay, optional FDD/USB bay

System Cooling
Fans
4x 40x28mm PWM fans

Optional 2 fans for AOC cooling

Power Supply
350W AC power supply w/ PFC
AC Voltage
100-240 V, 50-60 Hz, 5.0-2.5 Amp

+5V
Max.: 15 Amp

Min.: 0.2 Amp

+5V standby
Max.: 3 Amp

Min.: 0 Amp

+12V
Max.: 29 Amp

Min.: 0.5 Amp

-12V
Max.: 0.2 Amp

Min.: 0 Amp

+3.3V
Max.: 12 Amp

Min.: 0.2 Amp

Certification Platinum Level Certified
[ Test Report ]

Operating Environment
RoHS
RoHS Compliant

Environmental Spec.
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity:
   8% to 90% (non-condensing)

Non-operating Relative Humidity:
   5% to 95% (non-condensing)

Parts List

Parts List - (Items Included)

Part Number
Qty
Description

Motherboard / Chassis MBD-X11SPM-F
CSE-813MFTQC-350CB2 1
1 Super X11SPM-F Motherboard
1U Chassis
Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5
Cable 1 CBL-SAST-0644 1 MINI SAS(RA)-4 SATA(RA),INT,75/75/90/90CM,90CM SB,30AWG
Parts MCP-120-00031-0N 1 Riser card bracket for SC812,813,813M,815,111,113,113M
Manual MNL-2008-QRG 1 5019P-M/MR Quick Reference Guide
Riser Card RSC-RR1U-E16 1 RSC-RR1U-E16 with PIC-E x16 output
Heatsink / Retention SNK-P0067PS 1 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply PWS-350-1H 1 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
FAN 1 FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
Optional Parts List

Part Number
Qty
Description

3.5" to 2.5" Converter Tray MCP-220-00043-0N - Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT5
DVM-PLDS-DVDRW-SBT5 1
1 TEAC slim DVD-ROM SATA drive
PHILPS slim DVD-RW SATA drive
DVD-ROM Accessory MCP-220-81502-0N 1 Slim SATA DVD mounting kit
Internal 2.5" HDD Tray (FDD slot) MCP-220-83601-0B 1 Black FDD dummy tray support 1x 2.5" slim HDD
Internal 2.5" HDD Tray (DVD slot) MCP-290-00036-0B 1 Black DVD dummy tray support 1x 2.5" slim HDD
Cable for internal HDD CBL-0484L
CBl-0289L 2
1 55cm 30AWG SATA straight to straigh cable
Y split, big 4 pin to two RA SATA power estenstion 30cm
Hot-swap 2.5" kit (FDD slot) MCP-220-81504-0N 1 Single slim 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
Hot-swap 2.5" kit (DVD slot) MCP-220-81506-0N 1 Single slim 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
USB/COM port tray (FDD slot) MCP-220-00129-0B 1 Black 2x USB3.0/COM port tray in slim FDD form factor
Cooling Fan FAN-0154L4 - 40x40x28mm 22.5K RPM, SC813MF Middle Cooling Fan
Storage Controller card & cable AOC-S3108L-H8iR
& 1x CBL-SAST-0811
AOC-S3108L-H8iR-16DD
& 1x CBL-SAST-0811
AOC-S3008L-L8i
& 1x CBL-SAST-0811
AOC-S3008L-L8e
& 1x CBL-SAST-0811 - Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,
63HDD, RAID 0, 1, 10
Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,
122HDD HBA
Network Card(s) AOC-SGP-i2
AOC-SGP-i4
AOC-STGN-i2S
AOC-STGF-i2S
AOC-STG-B4S
AOC-STGS-i2T
AOC-S25G-b2S
AOC-S25G-m2S -
-
-
-
-
-
-
- Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414
Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
Front Bezels CSE-PTFB-813LB
CSE-PTFB-813-02B -
- Black front bezels
Black Front Bezel w/ Round Venting Holes
TPM security module AOM-TPM-9670V
AOM-TPM-9671V 1
1 TPM 2.0, vertical form factor
TPM 1.2, vertical form factor
Global Services & Support OS4HR3/2/1
OSNBD3/2/1 -
- 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List


Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-X11SPM-F CSE-813MFTQC-350CB2	1 1	Super X11SPM-F Motherboard 1U Chassis
Backplane	BPN-SAS3-815TQ	1	1U 4-Port 12Gbps Backplane Support 4x3.5
Cable 1	CBL-SAST-0644	1	MINI SAS(RA)-4 SATA(RA),INT,75/75/90/90CM,90CM SB,30AWG
Parts	MCP-120-00031-0N	1	Riser card bracket for SC812,813,813M,815,111,113,113M
Manual	MNL-2008-QRG	1	5019P-M/MR Quick Reference Guide
Riser Card	RSC-RR1U-E16	1	RSC-RR1U-E16 with PIC-E x16 output
Heatsink / Retention	SNK-P0067PS	1	1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply	PWS-350-1H	1	1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
FAN 1	FAN-0154L4	4	40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH


Optional Parts List

	Part Number	Qty	Description
3.5" to 2.5" Converter Tray	MCP-220-00043-0N	-	Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
DVD-ROM / DVD-RW	DVM-TEAC-DVD-SBT5 DVM-PLDS-DVDRW-SBT5	1 1	TEAC slim DVD-ROM SATA drive PHILPS slim DVD-RW SATA drive
DVD-ROM Accessory	MCP-220-81502-0N	1	Slim SATA DVD mounting kit
Internal 2.5" HDD Tray (FDD slot)	MCP-220-83601-0B	1	Black FDD dummy tray support 1x 2.5" slim HDD
Internal 2.5" HDD Tray (DVD slot)	MCP-290-00036-0B	1	Black DVD dummy tray support 1x 2.5" slim HDD
Cable for internal HDD	CBL-0484L CBl-0289L	2 1	55cm 30AWG SATA straight to straigh cable Y split, big 4 pin to two RA SATA power estenstion 30cm
Hot-swap 2.5" kit (FDD slot)	MCP-220-81504-0N	1	Single slim 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
Hot-swap 2.5" kit (DVD slot)	MCP-220-81506-0N	1	Single slim 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
USB/COM port tray (FDD slot)	MCP-220-00129-0B	1	Black 2x USB3.0/COM port tray in slim FDD form factor
Cooling Fan	FAN-0154L4	-	40x40x28mm 22.5K RPM, SC813MF Middle Cooling Fan
Storage Controller card & cable	AOC-S3108L-H8iR & 1x CBL-SAST-0811 AOC-S3108L-H8iR-16DD & 1x CBL-SAST-0811 AOC-S3008L-L8i & 1x CBL-SAST-0811 AOC-S3008L-L8e & 1x CBL-SAST-0811	-	Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, RAID controller, RAID 0, 1, 5, 6, 10, 50, 60 Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, 16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60 Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 63HDD, RAID 0, 1, 10 Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 122HDD HBA
Network Card(s)	AOC-SGP-i2 AOC-SGP-i4 AOC-STGN-i2S AOC-STGF-i2S AOC-STG-B4S AOC-STGS-i2T AOC-S25G-b2S AOC-S25G-m2S	- - - - - - - -	Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414 Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
Front Bezels	CSE-PTFB-813LB CSE-PTFB-813-02B	- -	Black front bezels Black Front Bezel w/ Round Venting Holes
TPM security module	AOM-TPM-9670V AOM-TPM-9671V	1 1	TPM 2.0, vertical form factor TPM 1.2, vertical form factor
Global Services & Support	OS4HR3/2/1 OSNBD3/2/1	- -	3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service
Software	SFT-OOB-LIC	1	OOB Management Package (per node license)
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
Hide Parts List
