SYS-9029GP-TNVRT
Print

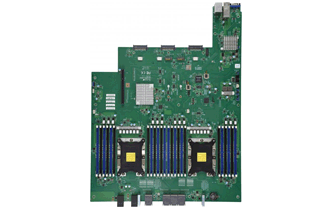

Intergrated Board
Key Features
- - AI / Deep Learning
- High-performance Computing
- Autonomous Vehicle Technology
- Supports 16 V100 SXM3 GPUs
- 1. Dual Socket P (LGA 3647) support Intel® Xeon® Scalable processors 3 UPI up to 10.4GT/s
- 2. Up to 3TB 3DS ECC LRDIMM, up to DDR4-2933MHz; 24 DIMM slots
- 3. 16 PCI-E 3.0 x16 for RDMA via IB EDR; 2 PCI-E 3.0 x16 on board
- 4. Supports 16 V100 SXM3 350W GPUs with NVSwitch and NVLink
- 5. Dual 10GBase-T LAN with Intel® X540
- 6. 16 Hot-swap 2.5" NVMe drives, 6 Hot-swap 2.5" SATA3 drive bays
- 7. 6x 80mm Hot-swap PWM Fans, 8x 92mm Hot-swap Fans
- 8. 6x (5+1) 3000W Redundant Power Supplies; Titanium Level (96%+)
Specifications
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Titanium LevelParts List
 | |||
| Parts List - (Items Included) | |||
| |
Part Number |
Qty |
Description |
| Motherboard / Chassis | MBD-X11DPG-HGX2 MBD-X11DPG-HGX2-SW CSE-1018G-R12KP |
1 2 1 |
Super X11DPG-HGX2 Motherboard HGX2 PCIe switch board CSE-1018G-R12KP Chassis |
| Software | SFT-OOB-LIC •  |
1 | OOB Management Package (per node license) |
| Add-on Card / Module | AOM-HGX2-NVL-P | 12 | HGX2 NVLINK board,HF,RoHS |
| Add-on Card / Module | AOM-SBL-SAS3 | 1 | AOM-SBL-SAS3 |
| Backplane | BPN-GPU-1018G | 1 | Midplane for 10U CSE-1018G HGX-2 project,RoHS |
| Riser Card | RSC-G-66-HGX2 | 8 | 1U LHS Passive GPU RSC w/ 2 PCI-Ex16 slots HGX-2 sys,HF,Rohs |
| Riser Card | RSC-G-A66 | 1 | 1U LHS Active GPU Riser card with two PCI-E x16 Slots,HF,RoH |
| Heatsink / Retention | SNK-P0067PS | 2 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
| Heatsink / Retention | SNK-P0071VS | 2 | 1U Proprietary Passive CPU Heat Sink (124 mm Long) for SYS-2029BZ-HNR Series Servers (X11 2U4N 3UPI Big Twin) |
| * Power Supply | PWS-3K01G-1R | 6 | AC-DC 3000W, Titanium efficiency output: 54Vdc/55.6A, 12Vsb/ |
| * Backplane | BPN-PDB-1018G | 1 | 54V PDB for 10U CSE-1018G HGX-2 project, support 6x Delta 54Vdc/3KW PSU, RoHS |
| * Cable 1 | CBL-0223L | 6 | BLADE PWS POWER CORD C19 to C20, PBF. 1.8m. 12AWG, 20A, 250V |
| * FAN 1 | FAN-0196L4 | 8 | 92x92x76 mm, 13.3K-12.2K RPM Counter-rotating Fan for HGX2 P |
| * FAN 2 | FAN-0197L4 | 6 | 80x80x80 mm, 12K-11.3K RPM Counter-rotating Fan for HGX2 Pro |
| * Front Panel | FPB-FP1018G | 1 | Front control board 4.59x2.59 inches for SC1018G,RoHS |
| * Drive Tray(s) | MCP-220-00169-0B | 6 | Black hot swap tool-less 2.5 |
| * Drive Tray(s) | MCP-220-00170-0B | 16 | Black hot swap tool-less NVMe 2.5 |
| * Rail Set | MCP-290-41803-0N | 1 | Fat twin F418 / F424 Static Rail set support 28-33.5 inch depth rail,RoHS/REACH,PBF |
| * Parts | MCP-620-00022-0N | 6 | Blade Server Front Blade Light Pipe for MB |
Notes:
|
|||
| |||
| Optional Parts List | |||
| Part Number | Qty | Description | |
| NVMe RAID 1 (Require Intel VROC Key) | AOC-SLG3-2M2 Tested M.2 List |
1 2 |
Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules NVMe M.2 Module |
| Network Card(s) | AOC-MCX455A-ECAT-MLN | - | Mellanox ConnectX-4 VPI adapter card, EDR IB (100Gb/s) and 100GbE, single-port QSFP28, PCIe3.0 x16, tall bracket, ROHS R6 |
| AOC-MCX456A-ECAT-MLN | - | Mellanox ConnectX-4 VPI adapter card, EDR IB (100Gb/s) and 100GbE, dual-port QSFP28, PCIe3.0 x16, tall bracket, ROHS R6 | |
| AOC-MCX515A-CCAT | - | Mellanox ConnectX-5 EN network interface card, 100GbE single-port QSFP28, PCIe3.0 x16, HF, RoHSket, HF, RoHS | |
| AOC-MCX516A-CCAT | - | Mellanox ConnectX-5 EN network interface card, 100GbE dual-port QSFP28, PCIe3.0 x16, tall bracket, HF, RoHS | |
| AOC-MCX555A-ECAT | - | Mellanox ConnectX-5 VPI adapter card, EDR IB (100Gb/s) and 100GbE, single-port QSFP28, PCIe3.0 x16, tall bracket, HF, RoHS | |
| AOC-MCX556A-ECAT | - | Mellanox ConnectX-5 VPI adapter card, EDR IB (100Gb/s) and 100GbE, dual-port QSFP28, PCIe3.0 x16, tall bracket, HF, RoHS | |
| TPM Security Module | AOM-TPM-9670V | 1 | SPI capable vertical TPM 2.0 provisioned for client,RoHS |
| Global Services & Support | OS4HR3/2/1 OSNBD3/2/1 |
- - |
3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
|
|||
