    SYS-1029GQ-TXRT

    Print
    Intergrated Board

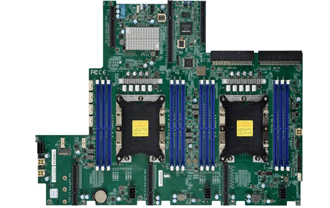

    X11DGQ
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • - Up to 4 NVIDIA® Tesla® P100 SXM2 GPUs
      - Up to 80 GB/s GPU-to-GPU NVIDIA® NVLINK™
      - Optimized for NVIDIA® GPUDirect™ RDMA
    • 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
    • 2. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
      Supports Intel® Optane™ DCPMM††
    • 3. 4 PCI-E 3.0 x16 slots
    • 4. 2 Hot-swap 2.5" SAS/SATA drive bays, 2 Internal 2.5" drive bays
    • 5. 2x 10GBase-T LAN ports via Intel X540
    • 6. Support 1x M.2 2242/2260/2280, Support M.2 SATA and NVMe
    • 7. 7 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control
    • 8. 2000W Redundant Power Supplies Titanium Level (96%)
    Specifications
    Product SKUs
    SYS-1029GQ-TXRT
    • SuperServer 1029GQ-TXRT (Black)

    Motherboard

    Super X11DGQ

    Processor/Cache
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
      3 UPI up to 10.4GT/s
    • Support CPU TDP up to 165W
    Cores
    • Up to 28 Cores
    Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

    Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.
    GPU
    • 4 Nvidia® Tesla® P100 SXM2 GPUs
    • NVIDIA® NVLINK™ up to 80GB/s

    System Memory
    Memory Capacity
    • 12 DIMM slots
    • Up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.

    On-Board Devices
    Chipset
    • Intel® C621 chipset
    SATA
    • SATA3 (6Gbps) with RAID 0, 1, 5, 10
    Network Connectivity
    • Intel® X540 Dual Port 10GBase-T
    • Virtual Machine Device Queues reduce I/O overhead
    • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC

    Input / Output
    SATA
    • 4 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 10GBase-T ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    Video
    • 1 VGA port
    Serial Header
    • 1 Fast UART 16550 header

    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM

    Management
    Software
    Power Configurations
    • ACPI / APM Power Management

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-118GQPTS-R2K05P2

    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 35.2" (894mm)
    • 39.3" (997mm) with rails
    Package
    • 24" (H) x 8" (W) x 46" (D)
    Weight
    • Net Weight: 45 lbs (20.41 kg)
    • Gross Weight: 58 lbs (26.31 kg)
    Available Color
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Overheat LED / Fan fail LED /
      UID LED

    Expansion Slots
    PCI-Express
    • 4 PCI-E 3.0 x16 slots

    Drive Bays
    Hot-swap
    • 2 Hot-swap 2.5" SAS/SATA drive bays

      Note: Can be upgraded to 2 U.2 NVMe drives by addition of optional NVMe kit (please see details in optional parts list below).
    Fixed
    • 2 Internal 2.5" drive bays
    M.2
    • Support 1x M.2 2242/2260/2280
    • Support M.2 SATA and NVMe

    System Cooling
    Fans
    • 7 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control

    Power Supply
    2000W Redundant Power Supplies with PMBus
    Total Output Power
    • 1000W: 100 – 120Vac
    • 1800W: 200 – 220Vac
    • 1980W: 220 – 230Vac
    • 2000W: 230 – 240Vac
    • 2000W: 200 – 240Vac (UL/CUL only)
    Dimension
    (W x H x L)
    • 73.5 x 40 x 265 mm
    Input
    • 100-120Vac / 12.5-9.5A / 50-60Hz
    • 200-220Vac / 10-9.5A / 50-60Hz
    • 220-230Vac / 10-9.8A / 50-60Hz
    • 230-240Vac / 10-9.8A / 50-60Hz
    • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
    +12V
    • Max: 83.3A / Min: 0A (100-120Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 166.7A / Min: 0A (230-240Vac)
    • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
    12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification Titanium Level96%  Titanium Level
      [ Test Report ]

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11DGQ
    CSE-118GQPTS-R2K05P2    		 1
    1    		 Super X11DGQ Motherboard
    CSE-118GQPTS-R2K05P2 Chassis
    Add-on Card / Module AOM-PIO-I2XT-P 1 AOM-PIO-I2XT
    Backplane BPN-SAS3-118GQE 1 2-port 1U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
    Cable 1 CBL-0484L 4 SATA,INT,ROUND,ST-ST,55CM,30AWG
    Cable 2 CBL-PWEX-1025 3 GPU,2x4F/RA/CPU to 2x4F/RA/CPU,P4.2, 6CM,17AWG, 8A/pin, -25~85C, RoHS
    Cable 3 CBL-PWEX-1028 1 GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
    Cable 4 CBL-SAST-0934-12 4 Oculink-Oculink X8 Cable 50cm 34AWG,RoHS
    Riser Card RSC-G-A66-X1 1 1U LHS Active Rear Riser card with two PCI-E x16 Slot,HF,RoH
    Riser Card RSC-GN2-66 1 1U Passive LHS GPU Riser Card with two NVMe ports and two PC
    Heatsink / Retention SNK-P0067PS 2 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Heatsink / Retention SNK-P4004V 4 1U Passive GPU Heat Sink for NVIDIA SXM2 Module Equipped with Pascal or Volta GPU
    Power Supply PWS-2K05A-1R 2 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
    FAN 1 FAN-0163L4 7 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
    Rear Window MCP-240-11807-0N 1 SC118GQE Rear Window for 2x PCI-FL or 4th GPU
    Rail Set MCP-290-11809-0N 1 Rail set, Quick/Quick, Auto Latch, travel 535mm Short Version, Post to Post 685mm
    Optional Parts List
      Part Number Qty Description
    AOC-S3008L-L8i (SAS3) CBL-SAST-0699 1 Mini SAS HD to 4 SATA 12G
    AOC-S3108L-H8IR-16DD (SAS3) CBL-SAST-0699 1 Mini SAS HD to 4 SATA 12G
    AOC-S3108L-H8IR (SAS3) CBL-SAST-0699 1 Mini SAS HD to 4 SATA 12G
    Super Cap for LSI 3108 BKT-BBU-BRACKET-05
    BTR-TFM8G-LSICVM02    		 1
    1    		 Mounting Bracket for LSI BBUs
    LSI Super Cap
    SXM2 GPU Dummy MCP-120-11812-0N 1 Optional SXM2 GPU dummy
    U.2 NVMe Kit BPN-NVMe3-118GQE
    CBL-SAST-0935-12
    MCP-220-00121-0B    		 1
    1
    2    		 NVMe Backplane
    Oculink cable x8
    NVMe HS tray
    TPM AOM-TPM-9670V - SPI capable vertical TPM 2.0 provisioned for client,RoHS
    Intel VROC RAID Key AOC-VROCINTMOD
    AOC-VROCSTNMOD
    AOC-VROCPREMOD    		 1
    1
    1    		 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    Intel VROC Standard, RAID 0, 1, 10
    Intel VROC Premium, RAID 0, 1, 5, 10
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1    		 -
    -    		 3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
