    SYS-1019GP-TT

    Print

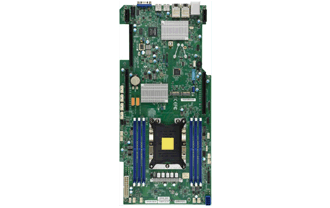

    Intergrated Board
    X11SPG-TF
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • 1. Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake)‡
    • 2. 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
      Supports Intel® Optane™ DCPMM††
    • 3. 2 PCI-E 3.0 x16 slots (support double-width GPU), 1 PCI-E 3.0 x16 low-profile slot (center right)
    • 4. 6 Hot-swap 2.5" SAS/SATA drive bays
    • 5. 2x 10GBase-T LAN ports via Intel X550
    • 6. 2 M.2 form factor 2280, supports both M.2 NVMe and SATA SSD
    • 7. 8 Heavy duty 4cm counter-rotating 4cm fans with air shroud & optimal fan speed control
    • 8. 1400W High-efficiency Power Supply Platinum Level (94%+)
    Specifications
    Product SKUs
    SYS-1019GP-TT
    • SuperServer 1019GP-TT (Black)

    Motherboard

    Super X11SPG-TF

    Processor/Cache
    CPU
    • Single Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡
    • Support CPU TDP 70-205W
    Cores
    • Up to 28 Cores
    Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
    GPU Support
    • NVIDIA® Tesla® P100/P40/P4/M60

    System Memory
    Memory Capacity
    • 6 DIMM slots
    • Up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.

    On-Board Devices
    Chipset
    • Intel® C621 chipset
    SATA
    • SATA3 (6Gbps) with RAID 0, 1, 5, 10
    Network Connectivity
    • Intel® X550 Dual Port 10GBase-T
    • Virtual Machine Device Queues reduce I/O overhead
    • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500

    Input / Output
    SATA
    • 6 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 10GBase-T ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    • 2 USB 2.0 ports (rear)
    Video
    • 1 VGA port
    Serial Port
    • 1 COM Port header
    DOM
    • 2 DOM (Disk on Module) power connectors

    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM

    Management
    Software
    Power Configurations
    • ACPI / APM Power Management

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-118GTS-1K43BP2

    Dimensions
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 28.5" (724mm)
    Weight
    • Net Weight: 28 lbs (12.70 kg)
    • Gross Weight: 36 lbs (16.33 kg)
    Available Color
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Overheat LED / Fan fail LED

    Expansion Slots
    PCI-Express
    • 1 PCI-E 3.0 x16 slot (center right)
    • 1 PCI-E 3.0 x16 slot (right riser)
    • 1 PCI-E 3.0 x16 slot (left riser)

    Drive Bays / Storage
    Hot-swap
    • 6 Hot-swap 2.5" SAS/SATA drive bays
    M.2
    • Supports 2 M.2 form factor 2280
    • Supports both M.2 NVMe and SATA SSD

    System Cooling
    Fans
    • 8 heavy duty counter-rotating 4cm fans with air shroud and optimal fan speed control

    Power Supply
    1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
    AC Voltage
    • 1200W: 100-140 V, 14.7-10.5A, 50-60 Hz
    • 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz
    +5V standby
    • 6 Amp
    +12V
    • 100 Amp/115 Vac
    • 117 Amp/230 Vac
    With Power Distributor
    • +5V: 14 Amp
    Certification Platinum Certified
      Platinum Certified

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11SPG-TF
    CSE-118GTS-1K43BP2    		 1
    1    		 Super X11SPG-TF Motherboard
    1U SC118G Chassis
    Backplane BPN-SAS-118TQ 1 6-port 1U TQ (W/ AMI 9072) backplane, support up to 6x 2.5-inch SAS/SATA HDD/SSD
    Cable 1 CBL-0484L 4 SATA,INT,ROUND,ST-ST,55CM,30AWG
    Cable 2 CBL-CDAT-0662 2 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
    Cable 3 CBL-PWEX-0663 1 PCIe 8 pin male(black) to CPU 8 pin female(white) power adapter, 5cm, 18AWG, 9A/pin, 0~80C, RoHS/REACH
    Cable 4 CBL-PWEX-1028 1 Tesla family GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
    Cable 5 CBL-SAST-0624 2 SATA,INT,ROUND,ST-ST,70CM,30AWG
    Riser Card RSC-R1U-E16R 1 RSC-R1U-E16R
    Riser Card RSC-R1UG-E16-UP 1 1U LHS Riser Card with one PCI-E x16 for UP GPU MBs
    Riser Card RSC-R1UG-E16R-UP 1 1U RHS Riser Card with 1 PCI-E x16 for UP GPU MB
    Heatsink / Retention SNK-P0067PS 1 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Power Supply PWS-1K43F-1R 1 1400W redundant digital power supply
    Optional Parts List
      Part Number Qty Description
    Other GPUs Cables CBL-PWEX-1059 1 Quadro family GPU, 2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG,8A/pin(17AWG), 6A/pin(20AWG), -25~80C, RoHS
    AOC-S3008L-L8i (SAS3) CBL-SAST-0699 2 Mini SAS HD-4 SATA, 12G
    AOC-S3108L-H8IR-16DD (SAS3) CBL-SAST-0699 2 Mini SAS HD-4 SATA, 12G
    AOC-S3108L-H8IR (SAS3) CBL-SAST-0699 2 Mini SAS HD-4 SATA, 12G
    Super Cap for LSI 3108 BKT-BBU-BRACKET-05
    BTR-TFM8G-LSICVM02    		 1
    1    		 Mounting Bracket for LSI BBUs
    LSI Super Cap
    Network Cards AOC-S100G-m2C - Standard low-profile 2-port QSFP28 100GbE PCI-E 3.0 x16, based on Mellanox ConnectX-4 EN chipset
    AOC-MCX516A-CCAT - Mellanox MCX516A-CCAT PCIe 2-port 100GbE QSFP28 Gen3x16 CX-5 EN. RoHS
    AOC-S40G-i2Q - Standard Low-Profile Dual-port 40GbE controller with 2x QSFP ports
    AOC-MCX512A-ACAT - Mellanox MCX512A-ACAT PCIe 2-port 25GbE SFP28 Gen3x8 CX-5 EN. RoHS
    AOC-MCX4121A-ACAT - Mellanox MCX4121A-ACAT 25GbE dual-port SFP28, PCIe3.0 x8, tall bracket Lx EN, HF, RoHS
    AOC-S25G-b2S - Standard Low-Profile Dual-port 25GbE controller with 2 SFP28 ports, based on Broadcom BCM57414
    AOC-S25G-m2S - Standard low-profile 2-port 25GbE with SFP+, based on Mellanox ConnectX-4 LX EN chipset
    AOC-STG-b4S - Standard Low-profile Quad-port 10GbE controller with 4x SFP+ ports
    AOC-STG-i4S - Standard Low-Profile Quad-port 10GbE controller with 4x SFP+ ports
    AOC-STGN-i2S - Standard Low-Profile Dual-port 10GbE controller with 2x SFP+ ports
    AOC-STGN-i1S - Standard Low-Profile Single-port 10GbE controller with 1x SFP+ port
    AOC-STG-i2T - Standard Low-Profile Dual-port 10GbE controller with 2x RJ45 (10GBase-T) ports
    AOC-SGP-i4 - Standard Low-Profile Quad-port GbE controller with 4x RJ45 ports
    AOC-SGP-i2 - Standard Low-Profile Dual-port GbE controller with 2x RJ45 ports
    GPUs Air Shroud Kit MCP-310-81806-0B - Nvidia Fermi GPU Air shroud for 818G/118G
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1    		 -
    -    		 3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
    Hide Parts List
