SYS-1029GQ-TRT
Print

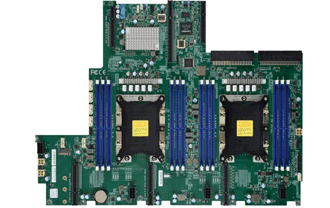

Intergrated Board
Key Features
- - Supports up to 4 NVIDIA® GPUs in 1U
- Support Active/Passive GPUs
- GPU health monitoring with Fan speed control
- 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
- 2. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM††
- 3. 4 PCI-E 3.0 x16 (FHFL) slots,
2 PCI-E 3.0 x16 (LP) slots
- 4. 2 Hot-swap 2.5" SAS/SATA drive bays, 2 Internal 2.5" SATA drive bays
- 5. Support 1x M.2 2242/2260/2280, Support M.2 SATA and NVMe
- 6. 2x 10GBase-T LAN ports via Intel X540
- 7. 9 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control
- 8. 2000W Redundant Power Supplies Titanium Level (96%)
Specifications
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Titanium LevelParts List
 | |||
| Parts List - (Items Included) | |||
| |
Part Number |
Qty |
Description |
| Motherboard / Chassis | MBD-X11DGQ CSE-118GQETS-R2K05P2 |
1 1 |
Super X11DGQ Motherboard CSE-118GQETS-R2K05P2 Chassis |
| Add-on Card / Module | AOM-PIO-I2XT-P | 1 | AOM-PIO-I2XT |
| Backplane | BPN-SAS3-118GQE | 1 | 2-port 1U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD |
| Cable 1 | CBL-0484L | 4 | SATA,INT,ROUND,ST-ST,55CM,30AWG |
| Cable 2 | CBL-PWEX-1026 | 3 | GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 35CM, 17AWG, 8A/pin, -25~85C, RoHS |
| Cable 3 | CBL-PWEX-1027 | 1 | GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 14CM, 17AWG, 8A/pin, -25~85C, RoHS |
| Riser Card | RSC-G-A6 | 1 | U RHS Active Rear Riser card with 1 PCI-E x16,HF,RoHS |
| Riser Card | RSC-G-A66 | 1 | 1U LHS Active GPU Riser card with two PCI-E x16 Slots,HF,RoH |
| Riser Card | RSC-GR-6-X | 3 | 1U LHS GPU riser card with one PCI-E x16 slot,HF,RoHS |
| Heatsink / Retention | SNK-P0067PS | 2 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
| Power Supply | PWS-2K05A-1R | 2 | 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH |
| Fans | FAN-0163L4 | 9 | 40x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan |
| Rail Set | MCP-290-11809-0N | 1 | Rail set, Quick/Quick, Auto Latch, travel 535mm Short Version, Post to Post 685mm |
| |||
| Optional Parts List | |||
| Part Number | Qty | Description | |
| Additional brackets for T4 | MCP-120-11816-0N | 1 | GPU bracket Set for NVIDIA P4/T4 GPUs |
| Add-on card for internal M.2 NVMe | AOC-SLG3-2M2 | - | Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules |
| Intel/AMD/Quadro/M10 GPU Power Cables | 3x CBL-PWEX-1059 and 1x CBL-PWEX-1060 | - | GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe, P4.2, 17/20AWG, 8A/pin(17AWG), 6A/pin(20AWG |
| 6+8 Pin PCIe Right Angle GPU Power Cables | 3x CBL-PWEX-1061 and 1x CBL-PWEX-1062 | - | GPU, 2x4F/RA/CPU to two (2x3F+2x1F)/PCIe, P4.2, 17/20AWG |
| Storage Control Card and Cable(s) | AOC-S3008L-L8i & 1x CBL-SAST-0699 AOC-S3108L-H8iR & 1x CBL-SAST-0699 AOC-S3108L-H8iR-16DD & 1x CBL-SAST-0699 |
- - - |
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG |
| Super Cap for LSI 3108 | 1x BTR-TFM8G-LSICVM02 & 1x BKT-BBU-BRACKET-05 | - | Supercap mounting bracket for PCI-E location |
| Intel VROC RAID Key | AOC-VROCINTMOD AOC-VROCSTNMOD AOC-VROCPREMOD |
1 1 1 |
Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) Intel VROC Standard, RAID 0, 1, 10 Intel VROC Premium, RAID 0, 1, 5, 10 |
| Network Card(s) | AOC-SGP-i2/4 AOC-STGN-i1S/i2S More |
- - - |
Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350 Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN AOC Compatibility Matrix |
| TPM Security Module | AOM-TPM-9670V | 1 | SPI capable vertical TPM 2.0 provisioned for client,RoHS |
| Global Services & Support | OS4HR3/2/1 OSNBD3/2/1 |
- - |
3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service |
| Software | SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Note: For Coprocessors, GPUs, VCA, FPGA cards not listed in table above please contact sales to discuss compatibility. | |||
|
|||
