    SYS-1029UX-LL3-C16

    Print
    Intergrated Board

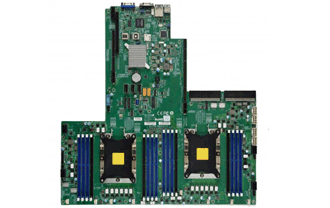

    X11DPU-XLL
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • - Qualified low latency NICs here
      - Financial Analysis
      - Business Critical Applications
      - Enterprise Server
    • 1. Dual Socket P (LGA 3647) support (Intel® Xeon® Gold 6254 included)
    • 2. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
      (12x 16GB DDR4-2933MHz included)
    • 3. 2 PCI-E 3.0 x16 slots (FH, 10.5"/10" L),
      1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x8
      (internal SAS3 integrated 3108)
    • 4. 4 Gigabit Ethernet ports
    • 5. 8 Hot-swap 2.5" SAS3 drive Bays;
      2 Hot-swap NVMe bays
    • 6. 8 heavy duty fans w/ optimal fan speed control
    • 7. 750W Redundant Power Supplies Platinum Level (94%+)
    Specifications
    Product SKUs
    SYS-1029UX-LL3-C16
    • SuperServer 1029UX-LL3-C16 (Black)

    Motherboard


    Super X11DPU-XLL

    Processor/Cache
    CPU
    • Dual Socket P (LGA 3647)
    • Intel® Xeon® Gold 6254 included
    Cores
    • Up to 28 Cores

    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
    • 12x 16GB DDR4-2933MHz included
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

    †† Cascade Lake only. Contact your Supermicro sales rep for more info.

    On-Board Devices
    Chipset
    • Intel® C621 chipset
    SATA
    • SATA3 (disabled)
    SAS
    • Broadcom 3108 controller for 8 SAS3 ports
    Network Connectivity
    • 4 Gigabit Ethernet ports via AOC-UR-i4G (Intel® i350AM4)
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC

    Input / Output
    SAS
    • 8 SAS3 ports support via integrated 3108 Add-on Card
    LAN
    • 4 RJ45 Gigabit Ethernet ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 5 USB 3.0 ports

      (2 rear, 2 via header, 1 Type A)
    Video
    • 1 VGA port
    Serial Port
    • 1 COM Port (1 rear)

    System BIOS
    BIOS Type
    • AMI UEFI

    Management
    Software

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-119UTS-R751P-T

    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 28.5" (724mm)
    Weight
    • Gross Weight: 48 lbs (21.77 kg)
    Available Color
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Overheat LED / Fan fail LED /

      UID LED

    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 (1 Full-height, 10.5" L; 1 Full-height, 10")
    • 1 PCI-E 3.0 x8 (Low Profile)
    • 1 PCI-E 3.0 x8 (Internal SAS3 integrated 3108)




      • (See manual block diagram and AOC Support for details.)

    Drive Bays
    Hot-swap
    • 8 Hot-swap 2.5" SAS3 drive bays
    • 2 Hot-swap 2.5" NVMe

    System Cooling
    Fans
    • 8 heavy duty fans with optimal fan speed control

    Power Supply
    750W Redundant AC-DC Power Supplies, +12V/+12Vsb output
    AC Input
    • 100-127Vac, 50-60Hz
    • 200-240Vac, 50-60Hz
    +12V
    • Max: 62.5A & Min: 0A (100Vac-127Vac)
    • Max: 62.5A & Min: 0A (200Vac-240Vac)
    12V SB
    • Max: 2.1A
    • Min: 0A
    Certification Platinum Level Certified94%+  Platinum Level



      [ Test Report ]

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:

         10°C ~ 30°C (50°F ~ 86°F)
    • Non-operating Temperature:

         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:

         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:

         5% to 95% (non-condensing)


    Parts List
    Parts List - (Items Included)


    		 Part Number

    		 Qty

    		 Description
    Motherboard / Chassis MBD-X11DPU-XLL

    CSE-119UTS-R751P-T     		1

    1    		 Super X11DPU-XLL Motherboard

    CSE-119UTS-R751P-T Chassis
    FAN FAN-0101L4 8 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
    CPU P4X-LL36254 2 Intel® Xeon® Gold 6254
    Memory MEM-DR416L-SL02-ER29 12 16GB DDR4-2933 1Rx4 LP ECC RDIMM,HF,RoHS
    Storage Control Card AOC-S3108L-H8iR 1 Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
    Power Supply PWS-751P-1R 2 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Optional Parts List
      Part Number Qty Description
    CacheVault(s) BTR-CV3108-1U1

    BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05

    BTR-TFM8G-LSICVM02 & MCP-240-00127-0N    		 -

    -

    -

         		 CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray

    CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location

    CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location
    1U Cable Management Arm MCP-290-00152-0N 1 1U Supermicro Cable Management Arm 2nd Gen
    Global Services & Support OS4HR3/2/1

    OSNBD3/2/1    		 -

    -    		 3/2/1-year onsite 24x7x4 service

    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
    Hide Parts List
