• 4U chassis support for SMCI Proprietary WIO motherboards;
max. motherboard size - 12" x 13", 13" x 13.68" * Support up to 12"x13" MB with rear 2.5" HDD option installed

• 36 x 3.5" hot-swap SAS/SATA drive bay with SES3, optional 2 x 2.5" hot-swap drive bay

• 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm

• WIO Slots (4x Full-height, Full-length + 3x Low-profile)

• 7 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)

• 4U chassis - supports for maximum motherboard sizes: 13.68" x 13", E-ATX, ATX motherboards

• 36 x 3.5" hot-swap HDD bays for server chassis

• 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm

• 7 low-profile expansion slot(s)

• 7 x 8cm hot-swap redundant PWM cooling fan(s)

• 100% cooling redundancy, 24x 3.5" Hot-swap SAS3 Drive Bays

• Redundant 1200W Titanium Level high efficiency power supply & 5 hot-plug redundant cooling fans w/adjustable air shroud

• Dual SAS3 (12Gbps) expander backplane

• Mini SAS HD (SFF 8643) connectivity;

• Support two 1000W BBP

• Support up to 13 FH FL expansion slots

• High Availability PS, Storage Capacity, and numerous I/O slots

• 100% cooling redundancy, 24x 3.5" Hot-swap SAS2/SATA3 Drive Bays

• Redundant 1200W Titanium Level high efficiency power supply & 5 hot-plug redundant cooling fans w/adjustable air shroud

• Single SAS3 (12Gbps) expander backplane

• Mini SAS HD (SFF8643) connectivity;

• Support two 1000W BBP

• Support up to 13 FH FL expansion slots

• High Availability PS, Storage Capacity, and numerous I/O slots

• 100% cooling redundancy, 24x 3.5" Hot-swap SAS2/SATA3 Drive Bays w/ Direct Attached HDD backplane

• Redundant 1200W Titanium Level high efficiency power supply & 5 hot-plug redundant cooling fans w/adjustable air shroud

• Mini-i-Pass (SFF 8087) connectivity;

• Support two 1000W BBP

• Support up to 13 FH FL expansion slots

• High Availability PS, Storage Capacity, and numerous I/O slots

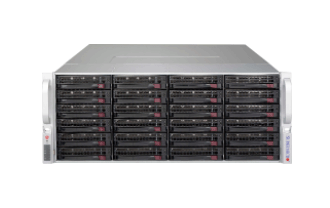

• 4U Storage JBOD Chassis with capacity 24 x 3.5" hot-swappable HDDs bays

• Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput

• 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements

• 1x IPMI port for Remote System Power on/off and system monitoring

• Support NTP for time synchronization & RTC battery backup

• 600W (1+1) 94% efficient Platinum level power supplies

• 5 hot-plug redundant cooling fans

• Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications:

• Qualified SAS HBA / controller:
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

• Optimized chassis cooling with redundant cooling fans and adjustable air shroud

• 24x 3.5" hot-swap SAS/SATA drive bays supporting SAS3/2 or SATA3 HDDs with 12Gbps throughput

• Redundant 1200W Titanium Level power supply

• E2C: Dual SAS3 (12Gbps) expander backplane

• Mini SAS HD (SFF 8643) connectivity on backplane
