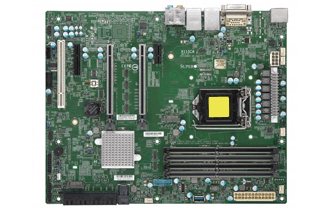

• 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

• Intel® C246

• Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x4,
1 PCI-E 3.0 x1,
2 PCI-Ex16 slots are running at NA/16, or 8/8
1 - 5V PCI 32bit
M.2 Interface: 2 PCI-E 3.0 x4
M.2 Form Factor: 2242/2260/2280/22110
M.2 Key: M-Key
M.2#1 are shared with PCI-Ex4 slot, M.2#2 is shared with U.2
U.2 Interface: 1 PCI-E 3.0 x4

• 1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port,
Intel UHD P630 graphic(For CPU Xeon E-21XXG/E-22XXG series only)

• Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller
Support vPro

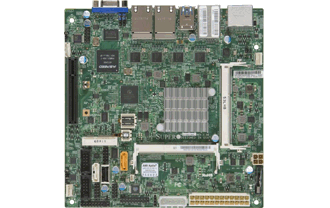

• Intel® Pentium™ Processor N3710., Single Socket FCBGA1170 supported, CPU TDP support 6W

• System-on-Chip

• Up to 8GB 1600MHz DDR3 Non-ECC SO-DIMM in 2 sockets

• 1 PCI-E 2.0 x1 (in x8),
1 Mini-PCIe (mSATA support)

• Quad GbE LAN with Intel® i210-AT

• 1 HDMI, 1 DP, Intel HD Graphics,
VGA port for BMC

• 2 USB 3.0 ports (2 rear), 7 USB 2.0 (2 rear, 4 via header(s), 1 Type A)

• I/O: 1 SATA DOM, 2 COM, TPM 1.2 header, ALC 888S HD Audio

• IPMI 2.0 with dedicated Port and KVM

• Supports 12V DC power input

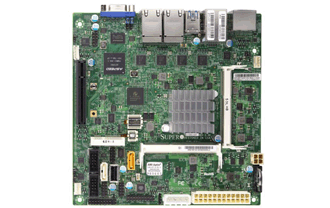

• Intel® Pentium™ Processor N3710., Single Socket FCBGA1170 supported, CPU TDP support 6W

• System-on-Chip

• Up to 8GB 1600MHz DDR3 Non-ECC SO-DIMM in 2 sockets

• 1 PCI-E 2.0 x1 (in x8),
1 Mini-PCIe (mSATA support)

• Dual GbE LAN with Intel® i210-AT

• 1 HDMI, 1 DP, Intel HD Graphics,
VGA port for BMC

• 2 USB 3.0 ports (2 rear), 7 USB 2.0 (2 rear, 4 via header(s), 1 Type A)

• I/O: 1 SATA DOM, 2 COM, TPM 1.2 header, ALC 888S HD Audio

• IPMI 2.0 with dedicated Port and KVM

• Supports 12V DC power input

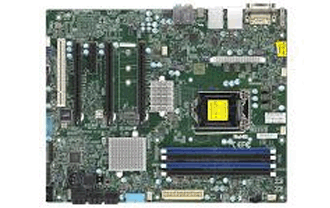

• Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v5/v6,
Intel® 6th/7th Gen. Core™ i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®
Intel® C236 chipset

• Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots

• 3 PCI-E 3.0 x16 (run at 16/NA/16 or 16/8/8), 1 PCI-E 3.0 x1 (in x4), and 1 5V PCI 32-bit slots

• Single GbE LAN with Intel® i210-AT,
Single GbE LAN with Intel® i219LM

• 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10

• I/O: 1 VGA, 1 COM, TPM header

• 6 USB 3.0 (2 rear + 4 via header(s)) ,
4 USB 2.0 (2 rear + 2 via header(s)),
1 USB 3.1 (10Gbps) Type C ports (rear, share with Thunderbolt and display port)

• M.2 NGFF connector

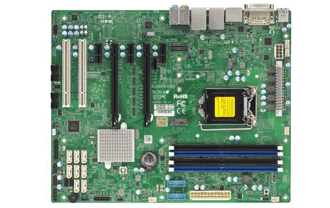

• Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v5/v6,
Intel® 6th/7th Gen. Core™ i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®

• Intel® C236 chipset

• Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots

• 3 PCI-E 3.0 x16 (run at 16/NA/16 or 16/8/8), 1 PCI-E 3.0 x1 (in x4), and 1 5V PCI 32-bit slots

• Single GbE LAN with Intel® i210-AT,
Single GbE LAN with Intel® i219LM

• 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10

• I/O: 1 COM, TPM header

• 6 USB 3.0 (2 rear + 4 via header(s)) ,
4 USB 2.0 (2 rear + 2 via header(s)),
1 USB 3.1 (10Gbps) Type C ports (rear, share with Thunderbolt and display port)

• M.2 NGFF connector

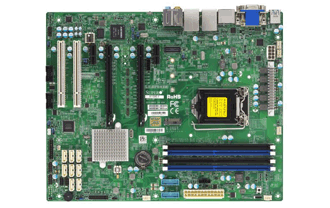

• Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v5/v6,
Intel® 6th/7th Gen. Core™ i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®

• Intel® C236 chipset

• Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots

• 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4, and 1x 5V PCI 32-bit slots

• Single GbE LAN with Intel® i210-AT,
Single GbE LAN with Intel® i219LM

• 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCI-E M.2 (support PCI-E x4 only, 2242/2260/2280/22110)

• 6 USB 3.0 (2 rear + 4 via header(s))
6 USB 2.0 (2 rear + 4 via header(s))
2 USB 3.1 (10Gbps, rear)

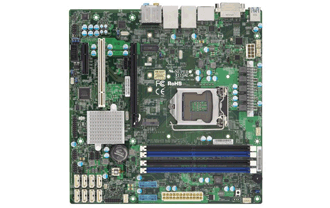

• Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v5/v6,
Intel® 6th/7th Gen. Core™ i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®

• Intel® C236 chipset

• Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots

• 2 PCI-E 3.0 x16 (run at 16/NA or 8/8), 2 PCI-E 3.0 x1, and 2 5V PCI 32-bit slots

• Single GbE LAN with Intel® i210-AT (Share with IPMI); single GbE LAN with Intel® i219LM

• 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCI-E M.2 (support PCI-E x4 only, 2242/2260/2280)

• I/O: 1 VGA, 2 COM, TPM header

• 6 USB 3.0 (2 rear + 4 via header(s))
6 USB 2.0 (2 rear + 4 via header(s))
2 USB 3.1 (10Gbps, rear)

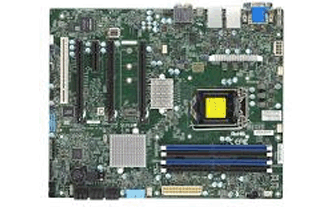

• Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v5/v6,
Intel® 6th/7th Gen. Core™ i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®

• Intel® C236 chipset

• Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots

• 2 PCI-E 3.0 x16 (run at 16/NA or 8/8), 3 PCI-E 3.0 x1 (in x4), and 2 5V PCI 32-bit slots

• Single GbE LAN with Intel® i210-AT,
Single GbE LAN with Intel® i219LM

• 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCI-E M.2 (support PCI-E x4 only, 2242/2260/2280)

• I/O: 2 COM, TPM header

• 6 USB 3.0 (2 rear + 4 via header(s))
8 USB 2.0 (2 rear + 6 via header(s))
2 USB 3.1 (10Gbps, rear)

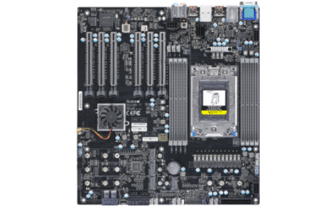

· AMD Ryzen™ Threadripper™ PRO 3000 Series Processors
· AMD WRX80
· 2 TB ECC Registered, DDR4-3200MHz or 256 GB ECC/non-ECC Un-Buffered, DDR4-3200MHz SDRAM in 8 DIMMs
· 6 PCI-E 4.0 x16Interface: 2 U.2 Sockets Software RAID 0,1 support
M.2 Interface: 4 PCI-E 4.0 x4
M.2 Form Factor: 22110, 2260
M.2 Key: M-Key
· 1 1GbE with IntelⓇ I210-AT,
· 1 Marvell AQC113C
