Mother board

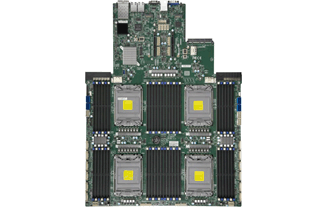

X12QCH+

• 3rd Generation Intel® Xeon® Scalable processors
Quad Socket LGA-4189 (Socket P+) supported, CPU TDP support Up to 250W TDP, 6 UPI up to 10.4 GT/s

• Intel® C621A

• Up to 12TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 12TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 6TB Intel© PMem 200 Series, DDR4-2666MHz, in 48 DIMM slots

• 3 PCI-E 3.0 x32 Left Riser Slot,
3 PCI-E 3.0 x32 Right Riser Slot
M.2 Interface: 2 SATA/PCI-E 3.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
U.2 Interface: 8 PCI-E 3.0 x4 and 8 PCI-E 3.0 x4 and 8 PCI-E 3.0 x4 and 8 PCI-E 3.0 x4
1 PCI-E 3.0 x32 Left Riser Slot, Riser card PN: RSC-D2-668G4
1 PCI-E 3.0 x32 Right Riser Slot, Riser card PN: RSC-D2R-668G4

• 1 VGA port

• Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Quad LAN with
2x 10G BaseT with Intel® X710-TM4; 2x 10G SFP+ with Intel® X710-TM4, (Optional) AIOM up to 100G QSFP 28

Learn more →
X11DPX-T

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C621

• Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only).

• 2 PCI-E 3.0 x16,
8 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8 slot) Or 4 PCI-E 3.0 x16 and 4 PCI-E 3.0 x8 and 1 PCI-E 3.0 x4 (in x8 slot)
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key

• 1 VGA D-Sub Connector port

• Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with Intel® X550 10GBase-T Ethernet Controller

Learn more →
Global Sku

X11DPL-i

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C621

• Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only).

• 2 PCI-E 3.0 x16,
8 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8 slot) Or 4 PCI-E 3.0 x16 and 4 PCI-E 3.0 x8 and 1 PCI-E 3.0 x4 (in x8 slot)
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key

• 1 VGA D-Sub Connector port

• Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with Intel® X550 10GBase-T Ethernet Controller

Learn more →
Global Sku

X11DPi-NT

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s

• Intel® C622

• Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);

• 4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8
M.2 Interface: PCI-E 3.0 x4
M.2 Form Factor: 2260, 2280, 22110
M.2 Key: M-Key,
2 PCI-E 3.0 NVMe x4 Internal Port(s)

• 1 VGA port

• Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with 10GBase-T with Intel® X722 + X557

Learn more →
Global Sku

X11DPi-N

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s

• Intel® C621

• Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);

• 4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8
M.2 Interface: PCI-E 3.0 x4
M.2 Form Factor: 2260, 2280, 22110
M.2 Key: M-Key,
2 PCI-E 3.0 NVMe x4 Internal Port(s)

• 1 VGA port

• Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with 1GbE LAN with Intel® X722

Learn more →
X11DPH-Tq

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C627

• Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);

• 3 PCI-E 3.0 x16,
3 PCI-E 3.0 x8
M.2 Interface: 2 PCI-E 3.0 x4
M.2 Form Factor: 2242/2260/2280/22110
M.2 Key: M-Key (RAID 0,1 support)

• 1 VGA port

• Intel® C627 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with 10GBase-T with Intel® X722 + X557

Learn more →
Global Sku

X11DPH-T

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C622

• Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only);

• 3 PCI-E 3.0 x16,4 PCI-E 3.0 x8M.2 Interface: 2 PCI-E 3.0 x4M.2 Form Factor: 2242/2260/2280/22110M.2 Key: M-Key (RAID 0,1 support)

• 1 VGA port

• Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with 10GBase-T with Intel® X722 + X557

Learn more →
X11DPH-i

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C621

• Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only);

• 3 PCI-E 3.0 x16,4 PCI-E 3.0 x8M.2 Interface: 2 PCI-E 3.0 x4M.2 Form Factor: 2242/2260/2280/22110M.2 Key: M-Key (RAID 0,1 support)

• 1 VGA port

• Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512

Learn more →
X11DGQ

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C621

• Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, in 12 DIMM slots;Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only)

• 4 PCI-E 3.0 x16,1 PCI-E 3.0 x32 Riser SlotM.2 Interface: 1 PCI-E 3.0 x4M.2 Form Factor: 2242, 2260, 2280M.2 Key: M-KeyM.2 type: SATA and NVMe

• Intel® C621 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with 10GBase-T with Intel® X540 10GbE Controller

Learn more →
X11DDW-NT

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s

• Intel® C622

• Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, in 12 DIMM slots;Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only).

• 1 PCI-E 3.0 x32 Left Riser Slot,1 PCI-E 3.0 x16 Right Riser Slot,1 PCI-E 3.0 x16 for Add-On-Module (AOM)M.2 Interface: PCI-E 3.0 x4M.2 Form Factor: 2242, 2260, 2280, 22110M.2 Key: M-KeyU.2 Interface: PCI-E 3.0 x4,4 PCI-E 3.0 NVMe x4 Internal Port(s)

• 1 VGA port

• Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with 10Gbase-Tfrom C622

Learn more →
X11DDW-L

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s

• Intel® C621

• Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, in 12 DIMM slots;Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only)

• 1 PCI-E 3.0 x32 Left Riser Slot,1 PCI-E 3.0 x16 Right Riser Slot,1 PCI-E 3.0 x16 for Add-On-Module (AOM)M.2 Interface: PCI-E 3.0 x4M.2 Form Factor: 2242, 2260, 2280, 22110M.2 Key: M-Key

• 1 VGA port

• Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with GbEfrom C621

Learn more →
X11SSW-TF

• Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,Intel® Celeron® and Intel® Pentium®

• Intel® C236 chipset

• Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots

• Intel® X540 Dual port 10GBase-T

• Support Intel® VHD with selected CPU

• 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10

• I/O: 1 VGA, 2 COM, TPM header

• 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))

• 2 SuperDOM with built-in power

• M.2 NGFF connectorM.2 Interface: PCI-E 3.0 x4Form Factor: 2260, 2280, 22110Key: M-Key Double Height Connector

Learn more →
