    AS -2124GQ-NART-LCC

    Print

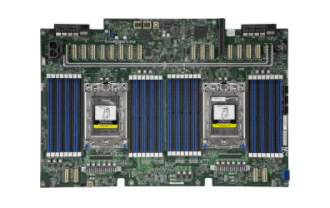

    Intergrated Board
    H12DSG-Q-CPU6
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • - AI Compute / Model Training / Deep Learning
      - High-performance Computing (HPC)

    • 1.High Density 2U System with NVIDIA® HGX™ A100 4-GPU and Liquid Cooling
    • 2.Supports HGX A100 4-GPU 40GB (HBM2) or 80GB (HBM2e)
    • 3.Direct connect PCI-E Gen4 Platform
      with NVIDIA® NVLink™
    • 4.On board BMC supports integrated
      IPMI 2.0 + KVM with dedicated 10G LAN
    • 5.Dual AMD EPYC™ 7002 Series Processors
    • 6.8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
    • 7.4 PCI-E Gen 4 x16 (LP), 1 PCI-E Gen 4 x8 (LP)
    • 8.4 Hot-swap 2.5" drive bays (SAS/SATA/NVMe Hybrid)
    • 9.2x 2200W Titanium Level power supplies with Smart Power Redundancy
      2x 3000W Titanium Level Redundant Power Supply option coming soon
    Specifications
    Product SKUs
    AS -2124GQ-NART-LCC
    • A+ Server 2124GQ-NART-LCC (Black)
    Motherboard
    Super H12DSG-Q-CPU6
    Processor/Cache
    CPU
    • Dual AMD EPYC™ 7002 Series Processors
    • Socket SP3
    • Supports CPU TDP up to 280W*
    Cores
    • Up to 128 Cores (64 per CPU)
    Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
    GPU Support
    • Supports HGX A100 4-GPU 40GB (HBM2) or 80GB(HBM2e) with NVLink GPU interconnect and PCI-E Gen4 host CPUs
    System Memory
    Memory Capacity
    • 32 DIMM slots
    • Up to 8TB 3DS ECC DDR4-3200MH SDRAM
    Memory Type
    • 3200MHz ECC DDR4 SDRAM
    On-Board Devices
    Chipset
    • System on Chip (SoC)
    Network
    • Dual RJ45 10GbE-aggregate host LAN, RJ45 1GbE IPMI
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics & System Management
    • ASPEED AST2600 BMC
    Input / Output
    SATA
    • 4 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 10GbE-aggregate host LAN ports
    • 1 RJ45 1GbE Dedicated IPMI management port
    USB
    • 2 USB 3.0 ports (rear)
    Video
    • 1 VGA Connector (rear)
    Others
    • 1 COM port (header)
    • 1 TPM 2.0 (header)
    System BIOS
    BIOS Type
    • AMI 256Mb SPI Flash ROM
    Management
    Software
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmountable
    Model
    • CSE-228GTS-R2K21P
    Dimensions
    Height
    • 3.5" (89mm)
    Width
    • 17.2" (437mm)
    Depth
    • 32.4" (823mm)
    Available Colors
    • Black
    Drive Bays / Storage
    Hot-swap
    • 4 Hot-swap 2.5" drive bays (SATA/NVMe Hybrid or SAS with optional HBA)
    Expansion Slots
    PCI-Express
    • 4 PCI-E Gen 4 x16 (LP) slots
    • 1 PCI-E Gen 4 x8 (LP) slot
    System Cooling
    Liquid Cooling
    • Power-efficient liquid cooling for CPUs and GPUs
    Fans
    • 4 Hot-swap heavy duty fans
    Power Supply
    2200W Redundant Power Supplies with PMBus
    Total Output Power
    • 1000W: 100 – 127Vac
    • 2200W: 220 – 240Vac
    • Higher power version coming soon
    Dimension
    (W x H x L)
    • 107 x 82 x 204 mm
    Input
    • 100-127Vac / 12-9.5A / 50-60Hz
    • 220-240Vac / 11-10A / 50-60Hz
    Output Type
    • Gold Finger Connector
    Certification Titanium Level 96% Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
      -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    		Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-H12DSG-Q-CPU6
    CSE-228GTS-R2K21P     		1
    1     		Super H12DSG-Q-CPU6 Motherboard
    2U 228G Chassis w/o BPN, PWS
    Add-on Card / Module AOM-228G-FAN 1 Fan board for SC228G
    Add-on Card / Module AOM-PCIE4-SXM4-Q 1 PCIe Transition board for nVidia Quad GPU module
    Add-on Card / Module AOM-PIO-I2XT-P 1 AOM-PIO-I2XT
    Backplane BPN-NVMe4-228N-S4 1 2U 4-Slot SFF BPN Supports 4xSAS3/SATA3/NVMe4 Storage Device
    Drive Trays MCP-220-00178-0B 4 Black Gen3 hot-swap 2.5" HDD tray with lock, orange tab
    Cable 1 CBL-OTHR-0794 1 VGA cable to internal 2x8 header for IO card
    Cable 2 CBL-PWEX-1028 4 GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
    Cable 3 CBL-PWEX-1080 2 Mini-Fit 2x2 F, to Mini-Fit 2x2 F, 10A/pin,7cm,16AWG,RoH
    Cable 4 CBL-PWEX-1092-23 1 2x2, P3.0 to 2x2, P3.0,23CM,10A/pin,16AWG
    Cable 5 CBL-PWEX-1093-26 1 2x2, P3.0 to 2x2, P3.0,26CM,10A/pin,16AWG
    Cable 6 CBL-PWEX-1094-43 4 2x4, P3.0 to 2x4, P3.0,43CM,9A/pin,16AWG
    Cable 7 CBL-SAST-1224LP-85 3 SlimlineLP x8 (STR) to SlimlineLP x8 (STR),24CM,85 OHM
    Cable 8 CBL-SAST-1228LP-85 1 SlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM
    Cable 9 CBL-SAST-1237LP-85 4 SlimlineLP x8 (STR) to SlimlineLP x8 (STR),37CM,85 OHM
    Cable 10 CBL-SAST-1264LP-85 1 SlimlineLP x8 (STR) to Slimline x8 (STR),64CM,85 OHM
    Cable 11 CBL-SAST-1266LP-85 10 SlimlineLP x8 (STR) to SlimlineLP x8 (STR),66CM,85 OHM
    Cable 12 CBL-SAST-1272-100 1 Slimline x4 (STR) to Slimline x4 (STR),72CM,100 OHM
    Riser Card SC-G-66G4 3 1U LHS GPU Riser card with two PCI-E 4.0 x16 slots,RoHS
    Liquid Cooling (CPU) SNK-P3019A 1 Liquid Cooling Module of 2x AMD EPYC Rome/Milan CPU for RedStone GPU System
    Liquid Cooling (GPU) SNK-P3020A 2 Liquid Cooling Module for 2x NVIDIA SXM4 RedStone GPU
    Liquid Cooling Thermal Kit MCP-320-22801-0N 1 Liquid Cooling Thermal Kit for CSE-228g
    Fan Module FAN-0197L4-1 4 80x80x80 mm, 12K-11.3K RPM Counter-rotating Fan for CSE-228G
    Power Supply PWS-2K21G-2R 2 AC-DC 2200W at high and 1200W at low line multi-output
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Optional Parts List
    Part Number Qty Description
    GPU Baseboard * GPU-NVTHGX-A100-SXM4-4 - NVIDIA Redstone GPU Baseboard, qty 4 onboard HGX A100 40GB SXM4 GPU with NVLink 200GB/s bi-directional peer-to-peer GPU mesh
    * Note: Required as Complete System
    Network Card(s) MCX653106A-HDAT - Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card dual ports, QSFP56 PCIe 3.0/4.0 x16. HF, RoHS
    AOC-S25G-m2S - Standard low-profile 2-port 25GbE SFP28, based on Mellanox ConnectX-4 LX EN chipset.,RoHS
    AOC-STG-i4S - Intel XL710-BM1 4-port SFP+ (10Gb/port) Gen3 x8, Standard Low Profile
    TPM security module AOM-TPM-9655V - TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
    AOM-TPM-9655V-S - TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF; Provisioned for TXT
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1     		-
    -     		3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
