    AS -2124US-TNRP

    Print
    Intergrated Board

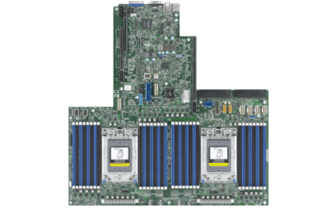

    H12DSU-iN
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • - Virtualization
      •- Cloud Computing
      •- High-End Enterprise Server
      •- Hyperconverged Storage

    • ·Dual AMD EPYC™ 7002 Series Processors
    • ·8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
    • ·Expansion slots:
      1 PCI-E 4.0 x16 slot (FH, 9.5" L)
    • ·Integrated IPMI 2.0 + KVM with dedicated LAN
      • Software Out of Band License
       key (SFT-OOB-LIC) included
       for OOB BIOS management
    • ·Dual-port 10GBase-T and Dual-port 10G SFP+
      via Intel® X710-TM4
    • ·Drive Bays:
       24 hot-swap 2.5" U.2 NVMe drive bays
       Up to 24 SATA/SAS drive support via
       optional SAS kit
    • ·1600W Redundant Power Supplies
      Titanium Level (96%)
      (Full redundancy based on configuration and application load)
    Specifications
    Product SKUs
    AS -2124US-TNRP
    • A+ Server 2124US-TNRP
    Motherboard
    H12DSU-iN
    Processor/Chipset
    CPU
    • Dual AMD EPYC™ 7002 series Processors
    • Socket SP3
    • Supports CPU TDP up to 280W*
    Cores
    • Up to 64 Cores
    Chipset
    • System on Chip (SoC)
    System Memory
    Memory Capacity
    • 32 DIMM slots
    • Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM
    • 8-channel memory bus
    Memory Type
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • ASPEED AST2500 BMC
    Network Connectivity
    • Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel® X710-TM4
    VGA
    • ASPEED AST2500 BMC
    Input / Output
    NVMe
    • 24 U.2 NVMe support
    LAN
    • Dual 10GBase-T LAN ports
    • Dual 10G SFP+ LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 3 USB 3.0 ports (2 rear + 1 Type A)
    VGA
    • 2 VGA ports (1 rear, 1 onboard)
    Others
    • 1 COM port
    • 2 SATA DOM power connectors
    • TPM 2.0 header
    System BIOS
    BIOS Type
    • AMI 128Mb SPI Flash EEPROM
    BIOS Features
    • Plug and Play (PnP)
    • DMI 2.3
    • PCI 2.2
    • ACPI 5.1
    • USB Keyboard Support
    • SMBIOS 3.1.1
    PC Health Monitoring
    CPU
    • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
    • CPU switching voltage regulator
    FAN
    • Up to 4-fan status tachometer monitoring
    • Up to four 4-pin fan headers
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU Thermal Trip Support
    • Thermal control for 4x Fan connectors
    • I²C Temperature Sensing Logic
    LED
    • CPU / System Overheat LED
    Other Features
    • Chassis Intrusion Detection
    • Chassis Intrusion Header
    Chassis
    Form Factor
    • 2U
    Model
    • CSE-219U2TS-R1K62P3-TN24
    Dimensions
    Height
    • 3.5" (89mm)
    Width
    • 17.2" (437mm)
    Depth
    • 28.46" (723mm)
    Weight
    • Net Weight: 39 lbs (17.7 kg)
    • Gross Weight: 63 lbs (28.6 kg)
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • 2x Network activity LEDs
    • System Overheat LED / Fan fail LED /
      UID LED
    Expansion Slots
    PCI-Express
    • 1 PCI-E 4.0 x16 slot (FH, 9.5" L)


    (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
    Drive Bays
    Hot-swap
    • 24 hot-swap 2.5" U.2 NVMe drive bays
    • Up to 24 SAS/SATA drives supported via optional SAS kit
    System Cooling
    Fans
    • 4 heavy-duty PWM fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud
    Power Supply
    1600W Redundant Power Supplies with PMBus
    Total Output Power
    • 1600W/1000W
    Dimension
    (W x H x L)
    • 73.5 x 40 x 203 mm
    Input
    • 100-127Vac / 13 - 9A / 50-60Hz
    • 200-240Vac / 10 - 8A / 50-60Hz
    +12V
    • Max: 83.3A / Min: 0A (100-127Vac)
    • Max: 133A / Min: 0A (200-240Vac)
    12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification Titanium Level 96% Titanium Level
    [Test Report]
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:
      -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)
    Part Number Qty Description
    Motherboard MBD-H12DSU-iN 1 Super H12DSU-iN Motherboard
    Chassis CSE-219U2TS-R1K62P3-TN24 1 2U Chassis
    Add-on Card / Module AOC-2UR68G4-I4XTS-O 1 2U Ultra Riser with 2-port 10G RJ45 & 2-port 10G SFP+, Intel Carlsville X710-TM4, with 1 PCIe 4.0 x8 (in x16), 1 PCIe 4.0 x16 and 1 PCIe 4.0x8 (internal, in x16),RoHS
    Add-on Card / Module AOC-SLG4-2E4T-P 2 2-Port Retimer, x8 PCIe Gen 4, Low Profile AOC, RoHS
    Add-on Card / Module AOC-SLG4-4E4T-P 3 4-Port Retimer, x16 PCIe Gen 4,RoHS
    Backplane BPN-NVME4-216N-S24 1 2U 24-slot all-hybrid direct-attached backplane, support 24x 2.5" NVME Gen4 / SAS / SATA storage devices.,RoHS
    Cable CBL-SAST-1248-85 1 Slimline x8 (LE) to Slimline x8 (STR),46CM,85 OHM
    Cable CBL-SAST-1256A-85 1 Slimline x8 (LE) to Slimline x8 (STR),56CM,85 OHM
    Cable CBL-SAST-1262F-85 1 Slimline x8 (STR) to 2x Slimline x4 (RA),FFC,60/62CM,85
    Cable CBL-SAST-1265A-85 4 Slimline x8 (STR) to Slimline x8 (STR),65CM,85 OHM
    Cable CBL-SAST-1268-85 1 Slimline x8 (LE) to Slimline x8 (STR),68CM,85 OHM
    Cable CBL-SAST-1282-85 4 Slimline x8 (STR) to Slimline x8 (STR),82CM,85 OHM
    Riser Card RSC-W2-66G4 1 2U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS
    Riser Card RSC-WR-6 1 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
    Heatsink / Retention SNK-P0063P 2 2U Passive CPU Heat Sink for AMD Socket SP3 Processors
    Optional Parts List
    Part Number Qty Description
    Storage Control Card and Cable(s) AOC-S3008L-L8e &
    2x CBL-SAST-1285-100
    (support up to 8 SAS3 HDD)
    AOC-S3008L-L8i &
    2x CBL-SAST-1285-100
    (support up to 8 SAS3 HDD)
    AOC-S3108L-H8iR/16DD &
    2x CBL-SAST-1285-100
    (support up to 8 SAS3 HDD)
    AOC-SAS3-9361-16I &
    3x CBL-SAST-1285-100
    (support up to 16 SAS3 HDD)
    AOC-S3616L-L16IT &
    3x CBL-SAST-1285-100
    (support up to 16 SAS3 HDD)
    AOC-SAS3-9361-24I &
    6x CBL-SAST-1285-100
    (support up to 24 SAS3 HDD)     		-


    -


    -


    -


    -


    -

          		Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA
    Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s

    Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E
    Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s

    Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
    Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s

    MegaRAID SAS 9361-16i
    Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s

    16 int 12Gb/s ports, 16xGen3, IOC/IT mode - LP
    Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s

    MegaRAID SAS 9361-16i
    Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s

    M.2 by AOC AOC-SLG3-2M2 - LP, PCIe3 x8, Dual port NVMe M.2 carrier
    AOC-SLG3-2H8M2 - 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS
    Note: 2x M.2 per add-on card
    SATADOM SSD-DM128-SMCMVN1 - SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH
    SSD-DM480-SMCMVN1 - SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS
    SSD-DM064-SMCMVN1 - SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
    SSD-DM032-SMCMVN1 - SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
    MEM-IDSAVS4-032G - SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725)
    MEM-IDSAVM8A-128G - SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411)
    MEM-IDSAVM8A-256G - SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411)
    MEM-IDSAVE1-064G - SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i)
    MEM-IDSAVS3-032G - SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710)
    MEM-IDSAVT1-256G - IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP
    HDD Tray for SAS/SATA MCP-220-00117-0B 1~24 Tool-less black hot-swap 2.5" drive tray (red tab)
    TPM AOM-TPM-9655V - Vertical TPM with Infineon 9655 TCG 1.2
    AOM-TPM-9655V-S - Based on AOM-TPM-9655V with Server TXT package
    AOM-TPM-9665V - AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
    AOM-TPM-9665V-S - Vertical TPM TCG 2.0 Provisioned for a server,RoHS/REACH
    Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1 - 3/2/1-year onsite NBD service
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
