SYS-1019P-FHN2T
Print
Intergrated Board
Key Features
- -Multi-Access Edge Computing (MEC)
-Centralized/Cloud Radio Access
Network (C-RAN)
-Universal Customer Premise
Equipment (uCPE)
-Advanced Network Security
-Network Function Virtualization(NFV)
-Artificial Intelligence (AI) on Edge,
Machine Learning (ML)
-Retail, Smart Medical Expert Systems
- · Single Socket P (LGA 3647) supports
2nd Gen Intel® Xeon® Scalable
processor
- · 6 DIMMs; up to 1.5TB 3DS ECC
DDR4-2933MHz RDIMM/LRDIMM
- · 2 PCI-E 3.0 x16 (FHFL) slots
- · 2 Hot-swap 2.5" SATA3 drive bays;
2 Internal 2.5" SATA3 drive bays (opt.)
- · 2x 10GBase-T ports with Intel
X722 + X557
- · 1 VGA, 1 COM, 2 USB 3.0, 2 USB 2.0
- · M.2: 1 M-Key 2280/22110
PCI-E 3.0 x4 and SATA
- · 500W Platinum Level
power supplies
Specifications
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Parts List
 | |||
| Parts List - (Items Included) | |||
| |
Part Number |
Qty |
Description |

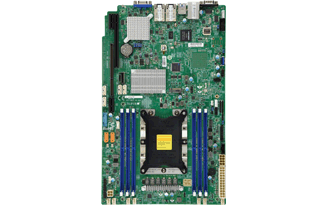

| Motherboard / Chassis | MBD-X11SPW-TF CSE-513BTS-505WBP |
1 1 |
Super MBD-X11SPW-TF Motherboard 1U Chassis |
| Backplane | BPN-SAS3-826TQ-B2B | 1 | 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD |
| Cable 1 | CBL-0483L | 2 | SATA,INT,ROUND,ST-ST,29CM,30AWG |
| Cable 2 | CBL-CDAT-0662 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG |
| FAN 1 | FAN-0154L4 | 2 | 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH |
| Air Shroud | MCP-310-51304-0B | 1 | Mylar Air Shroud for SC513B + X11SPW |
| Riser Card | RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots |
| Heatsink / Retention | SNK-P0071VS | 1 | 1U Proprietary Passive CPU Heat Sink (124 mm Long) for SYS-2029BZ-HNR Series Servers (X11 2U4N 3UPI Big Twin) |
| * Power Supply | PWS-505P-1H | 1 | 1U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH |
| * Cable 3 | CBL-0160L | 1 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) |
| * Cable 4 | CBL-0335L | 1 | CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG |
| * FAN 2 | FAN-0154L4 | 4 | 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH |
| * Drive Tray(s) | MCP-220-00180-0B | 2 | 2.5" New ID gen 3 hot-swap HDD tray with lock feature (with plastic bracket) |
| * Parts | MCP-260-00078-0B | 1 | 1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black |
| * Front Panel | MCP-280-80901-0N | 1 | SC809 FRONT CONTROL PANEL ASSY |
| * Rail Set | MCP-290-00102-0N | 1 set | Outer rail, quick-release type, 25.6" to 33.05" |
| * Rail Set | MCP-290-00108-0B | 1 set | Inner rail, front, short (quick) for 1U 17.2 |
| * Fan Holder | MCP-320-00060-0N | 1 | Fan tray for six 40x28 fans |
| * Bracket | MCP-240-51303-0N | 1 | Riser Card Bracket for WIO MB in SC513B |
Notes:
|
|||
| |||
| Optional Parts List | |||
| |
Part Number |
Qty |
Description |
| Cable | CBL-0082L | - | Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG |
| Cable | CBL-0473L | - | SATA,INT,ROUND,ST-ST,21CM,30AWG |
| Tray | MCP-220-00137-0N | - | Dual 2.5 HDD bracket (bracket base follow std 2.5" HDD screw holes) |
| Network Card(s) |
AOC-SGP-i2 AOC-SGP-i4 AOC-STGN-i2S AOC-STGF-i2S AOC-STG-B4S AOC-STGS-i2T AOC-S25G-b2S AOC-S25G-m2S |
- - - - - - - - |
Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414 Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX |
|
|||
