    SYS-E403-9P-FN2T

    Print
    Intergrated Board

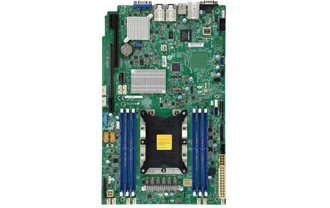

    X11SPW-TF
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • • Single Socket P (LGA 3647) supports
      2nd Gen Intel® Xeon® Scalable processor ‡
    • • 6 DIMMs; up to 1.5TB 3DS ECC
      DDR4-2933MHz RDIMM/LRDIMM
    • • 2 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8 +
      1 PCI-E 3.0 x16 (FH3/4L) slots†
    • • 4 Internal 2.5" drive bays
    • • M.2: 1 M-Key 2280/22110
      PCI-E 3.0 x4 and SATA
    • • 2x 10GBase-T ports with Intel X722 + X557
    • • 1 VGA, 1 COM, 4 USB 3.0, 2 USB 2.0
    • • 600W Multi-output
      Gold Level Power Supply
    Specifications
    Product SKUs
    SYS-E403-9P-FN2T
    • SuperServer E403-9P-FN2T (Black)

    Motherboard
    Super X11SPW-TF

    Processor
    CPU
    • Single Socket P (LGA 3647)
    • 2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake-SP)‡
    • Support CPU TDP 70-205W
    Cores
    • Up to 28 Cores
    Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

    Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) for Cascade Lake-R CPUs above 165W TDP, please contact Supermicro Technical Support for additional information.

    System Memory
    Memory Capacity
    • 6 DIMM slots
    • Up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
    Memory Type
    • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

    On-Board Devices
    Chipset
    • System on Intel® C622 chipset
    SATA
    • Intel® C622 controller; RAID 0, 1, 5, 10
    Network Controllers
    • Dual 10GBase-T LAN with Intel® X722 + X557
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2500 BMC

    Input / Output
    SATA
    • 4 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 10GBase-T LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 4 USB 3.0 ports (front)
    • 2 USB 2.0 ports (front)
    Video
    • 1 VGA port
    Serial Port
    • 1 COM port (front)
    SuperDOM
    • 2 SuperDOM (Disk on Module) ports with built-in power

    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM

    Management
    Software
    Power Configurations
    • ACPI Power Management
    • Power-on mode for AC power recovery
    Chassis
    Form Factor
    • Box PC
    Model
    • CSE-E403iF

    Dimensions and Weight
    Height
    • 4.3" (109mm)
    Width
    • 10.5" (267mm)
    Depth
    • 16" (406mm)
    Package
    • 26" (W) x 10.4" (H) x 16.4" (D)
    Weight
    • Gross Weight: 24 lbs (10.89 kg)
    • Net Weight: 18 lbs (8.16 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    • Overheat LED

    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 (FH3/4L) slots or
    • 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16 (FH3/4L) slots†
    Note † See Manuals for settings on Expansion Card and BIOS

    Drive Bays
    Internal
    • 4 Internal 2.5" drive bays
    M.2
    • M.2 Interface: PCI-E 3.0 x4 and SATA
    • Form Factor: 2280, 22110
    • Key: M-Key
    • Double Height Connector

    System Cooling
    Fans
    • 3x 80x38mm PWM hot swap fans

    Power Supply
    600W AC multi output power supply w/ PFC
    AC Voltage
    • 100-240 V, 50-60 Hz, 7.5-3.1 Amp
    +5V
    • 20 Amp
    +5V standby
    • 3 Amp
    +12V
    • 49 Amp
    +3.3V
    • 16 Amp
    Certification Gold Level Certified
      Gold Certified
      [ Test Report ]

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         0°C ~ 45°C (32°F ~ 113°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-MBD-X11SPW-TF
    CSE-E403iF    		 1
    1    		 Super MBD-X11SPW-TF Motherboard
    Black 2.5U Embedded Server Box W/O PWS
    Riser Card AOM-SDW-B16X2-P 1 AOM-SDW-B16X2, Dual PCIE x16 slot WIO Riser Card for Intel FlexRAN project,RoHS
    Cable 1 CBL-0082L 2 Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
    Cable 2 CBL-0206L 4 CBL-SAST-0641 / 4 / SATA,INT,ROUND,ST-RA,45CM,30AWG
    Cable 3 CBL-CUSB-0832 1 USB 3.0(F) Type A 2x to USB3.0 20pin,73CM,30AWG
    Cooling Fan FAN-0200L4 3 80x80x38 mm, 13.5K RPM Cooling Fan for E403IF
    Cooling Fan Accessory MCP-320-40302-0N 1 Fan bracket with extension cable for 3x 8038 hot-swap,E403
    Heat Sink SNK-P0071VS 1 1U Proprietary Passive CPU Heat Sink (124 mm Long) for SYS-2029BZ-HNR Series Servers (X11 2U4N 3UPI Big Twin)
    Air Shroud 1 MCP-310-40301-0B 1 Air shroud for CSE-E403iF+ X11SPW
    Air Shroud 2 MCP-310-41001-0N 1 Air shroud
    Power Supply PWS-601-1H 1 1U 600/680W MULTI OUTPUT PWS 80+ GOLD
    Part 1 MCP-260-00078-0B 1 1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black
    * Cable 4 CBL-0156L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,40CM,28AWG
    * Tray MCP-220-40301-0N 4 Fixed HDD tray 4x 2.5in for CSE-E403iF
    * Front Panel 1 FPB-FP826-D 1 Front control board Dual color LED(FP826-D)forSC826,213,216,219
    * Front Panel 2 TB826 1 Front panel adaptor board (TB826) forSC826,213,216,219
    * Part 2 MCP-240-40301-0B 1 Black riser card bracket 3x slot for WIO M, CSE-E403iF
    * Part 3 MCP-260-40301-0B 1 I/O Shield support 2x USB for CSE-E403iF
    Notes:
    1. Parts with * come with the Chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List

    		 Part Number
    		 Qty
    		 Description
    Network Card(s) AOC-SGP-i2
    AOC-SGP-i4
    AOC-STGN-i2S
    AOC-STGF-i2S
    AOC-STG-B4S
    AOC-STGS-i2T
    AOC-S25G-b2S
    AOC-S25G-m2S    		 -
    -
    -
    -
    -
    -
    -
    -    		 Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
    Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
    Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
    Hide Parts List
