    SYS-7089P-TR4T

    Print

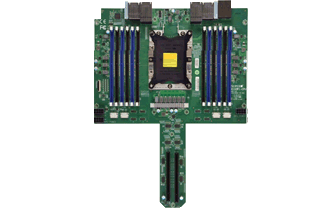

    Intergrated Board
    X11OPi-CPU
    Views Angled ViewsFront ViewsRear Views

    Key Features

    • - 8-Way MP, 224 Cores
      - Virtualization, ERP, CRM
      - In-Memory Database Application
      - Research lab/National Lab
      - Scale-up HPC
    • 1. Octa Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
    • 2. 96 DIMMs; up to 24TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
      Supports Intel® Optane™ DCPMM††
    • 3. 23 or 39 (OEM) PCI-E 3.0 slots include:
      8 FH x16 PCI-E cards or 8 GPUs or 16 U.2 NVMe + 8 FHFL x16 PCI-E cards or 16 U.2 NVMe + 2 LP x8 (in x16) PCI-E internal cards (storage module) + 5 FHHL x16 PCI-E cards (rear)(Up to 39 PCI-E 3.0 slots for OEM)
    • 4. 4 10Gb LAN (SIOM), 1 dedicated LAN for IPMI Remote Management, 1 VGA, 2 USB 2.0, 1 COM via KVM
    • 5. 16 Hot-swap 2.5" SAS3 drive bays (w/ RAID cards); 8x 2.5" or 6x 3.5" internal drive bays (w/ RAID cards)
    • 6. 8x 9cm Hot-swap counter-rotating rear fans
    • 7. 5x 1600W (N+2) Redundant Power Supplies, Titanium Level (96%)
    Specifications
    Product SKUs
    SYS-7089P-TR4T
    • SuperServer 7089P-TR4T (Black)

    Motherboard

    Super X11OPi-CPU

    Processor/Cache
    CPU
    • Octa Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
      8S-3 UPI up to 10.4GT/s
    • Support CPU TDP 70-205W
    Cores
    • Up to 28 Cores
    Note ‡ BIOS version 3.0 or above is required to support 2nd Gen Intel® Xeon® Scalable processors

    System Memory
    Memory Capacity
    • 96 DIMM slots
    • Up to 24TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.

    On-Board Devices
    Chipset
    • Intel® C621 chipset
    Storage
    • Intel C621 including 2 SATA3 (SATA DOM), 2 M.2 (SATA3/PCIe), 8 HDD (SATA3), 1 TPM header
    Network Controllers
    (via AOM)
    • 4-port 10GBase-T Ethernet SIOM (Intel® X550 controller)
    IPMI
    (via AOM)
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC

    Input / Output
    Storage
    • 2 SATA DOM (SATA3) ports
    • 2 M.2 (SATA3/PCI3) ports
    • 8 HDD (SATA3) ports
    LAN
    • 4 10GBase-T ports via SIOM
    • 1 dedicated LAN port for IPMI
    USB
    • 2 USB 2.0 ports via KVM port
    Serial Port / Header
    • 1 Fast UART 16550 ports: 1 front via KVM port

    System BIOS
    BIOS Type
    • 16MB SPI Flash EEPROM with AMI® BIOS
    BIOS Features
    • Plug and Play (PnP)
    • PCI 2.2
    • ACPI up to 3.0
    • USB Keyboard support

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 7U Rackmountable
    • Rackmount Kit: Comes with the system
    Model
    • CSE-718SAC-R4800

    Dimensions and Weight
    Height
    • 12.2" (310mm)
    Width
    • 17.63" (448mm)
    Depth
    • 28.87" (733mm)
    Package
    • 38.5" (H) x 29.9" (W) x 47.2" (D)
    Weight
    • Gross Weight: 208 lbs (94.35 kg)
    • Net Weight: 180 lbs (81.65 kg)
    Available Colors
    • Black

    Drive Bays
    Hot-swap
    • 16 Hot-swap 2.5" SAS3 drive bays (w/ RAID cards)
    • 8x 2.5" or 6x 3.5" internal drive bays (w/ RAID cards)

    Expansion Slots
    PCI-Express
    • 23 PCI-E 3.0 slots total including:
      8 FH x16 PCI-E cards or 8 GPUs or 16 U.2 NVMe + 8 FHFL x16 PCI-E cards or 16 U.2 NVMe + 2 LP x8 (in x16 slot) PCI-E internal cards (storage module) + 5 FHHL x16 PCI-E cards (rear)
    • Up to 39 PCI-E 3.0 slots for OEM

    Backplane
    2x 6-port 12G backplane supports 6x 2.5" SAS3/SATA3 HDD/SSD

    System Cooling
    Fans
    • 8x 9cm 10.5K-10.8K RPM Hot-Swap Counter-rotating Rear Fans

    Power Supply
    1600W Redundant Power Supplies with PMBus
    Total Output Power
    • 1600W/1000W
    Dimension
    (W x H x L)
    • 73.5 x 40 x 203 mm
    Input
    • 100-127Vac / 13 - 9A / 50-60Hz
    • 200-240Vac / 10 - 8A / 50-60Hz
    +12V
    • Max: 83.3A / Min: 0A (100-127Vac)
    • Max: 133A / Min: 0A (200-240Vac)
    12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification Titanium Level96%  Titanium Level
      [ Test Report ]

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    		Part Number
    		 Qty
    		 Description
    Chassis CSE-718SAC-R4800 1 CSE-718SAC-R4800 7U Chassis
    Motherboard X11OPi-CPU 8 Super X11OPi-CPU Motherboard
    Add-on Card / Module AOC-MTG-I4TM-P 1 [NR]AOC-MTG-I4TM-P
    Add-on Card / Module AOM-X11OPI-HDD-P 1 Storage add-on module for X11OPI series MB
    Add-on Card / Module AOM-X11OPI-KVM-P 1 KVM board for X11OPI Eight Way system
    Add-on Card / Module AOM-X11OPi-LBG-P 1 PCH and BMC Add on Module for X11OPi series 7u 8-way system,
    Backplane BPN-SAS3-213A 1 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
    Backplane BPN-X11OPI 1 Midplane for X11 8-way 7U server 7089P, support hot plug PCIE
    Cable 1 CBL-0218L 1 USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG
    Cable 2 CBL-0449L 1 HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWG
    Cable 3 CBL-SAST-0508-02 2 MINI SAS HD-MINI SAS,6G,INT,50CM,SB,30AWG
    Riser Card RSC-BLG-E16R 8 RSC-BLG-E16R
    Riser Card RSC-S-6-OP 8 1U LHS Riser Card with one PCI-E 3.0 x16 slot for the X11OPI
    Riser Card RSC-X11OPI-PCIE 5 PCIE riser card for X11OPI series 7U 8 way system,RoHS
    Heatsink / Retention SNK-P0067PS 8 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Power Supply PWS-1K62A-1R 5 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
    FAN 1 FAN-0171L4 8 92x92x76 mm, 10.5K-10.8K RPM, Counter-rotating Exhaust Fan for SC718 X10 8-way Server
    Optional Parts List

    		Part Number
    		 Qty
    		 Description
    Storage Options See Details - SAS3 and NVMe Options
    GPU Power Cable CBL-PWEX-0665 - PCIe 8 pin female(black) to CPU 8 pin female(white), K80/M60/M40 GPU power cable, 30cm, 18AWG,RoHS/REACH
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1    		 -
    -    		 3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
