1. Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
2. Intel® C236 chipset
3. 2 fixed 2.5" drive bays
4. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
5. 1 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8 Left Riser slot; 1 PCI-E 3.0 x4 (in x8 slot)
6. 2 GbE ports with Intel® i210-AT, 1 dedicated IPMI port
7. 1 VGA, 1 COM, 2 USB 3.0, 2 USB 2.0
8. 400W Redundant Platinum Level power supplies


Processor/Cache

CPU	Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors CPU TDP up to 80W
Note	BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors


System Memory

Memory Capacity	4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 ECC UDIMM
Memory Type	2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	16GB, 8GB, 4GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset	Intel® C236 chipset
SATA	SATA3 (6Gbps) via C236 controller RAID 0, 1, 5, 10 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Dual Intel® I210-AT Gigabit Ethernet LAN ports Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video	ASPEED AST2400 BMC


Input / Output

SATA	6 SATA3 (6Gbps) ports
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 dedicated IPMI LAN port
USB	5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) 6 USB 2.0 ports (2 rear + 4 headers)
Video	1 VGA port
Serial Port / Header	2 COM ports (1 rear, 1 header)
SuperDOM	2 SuperDOM (Disk on Module) ports with built-in power


PC Health Monitoring

Voltage	Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN	Total of 6 fan headers supporting up to 6 fans 4 fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support I²C temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	System Information LED Suspend static indicator LED UID/Remote UID
Other Features	Chassis intrusion detection Chassis intrusion header RoHS, Halogen Free


Dimensions and Weight

Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	16.9" (429mm)
Package	23.8" (W) x 8" (H) x 27" (L)
Weight	Gross Weight: 27 lbs (12.25 kg) Net Weight: 15.5 lbs (7.03 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2 Network activity LEDs System Information LED Information LED (temp., status)


Expansion Slots

PCI-Express	Left riser slot: 1 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8 1 PCI-E 3.0 x4 (in x8 slot)
M.2	1x M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2260, 2280, 22110 Key: M-Key Double Height Connector


System Cooling

Fans	4x 40x56mm PWM Cooling Fans 2x Optional fans for AOC cooling


AC/DC240V Input Redundant Power Supplies
400W 1U Redundant Power Supplies with PMbus
Total Output Power	400W
Dimension (W x H x L)	54.5 x 40 x 220 mm
Input	100 - 240Vac / 6.0 - 3.0A / 50-60Hz 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
+12V	Max: 33A / Min: 0.5A
+5V sb	Max: 3A / Min: 0A
Output Type	Gold Finger Connector Mating with Molex 45984-4343
Certification	Platinum Level Certified [ Test Report ]


System BIOS

BIOS Type	8MB SPI Flash EEPROM with AMI BIOS


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)


Parts List - (Items Included)

	Part Number	Qty	Description

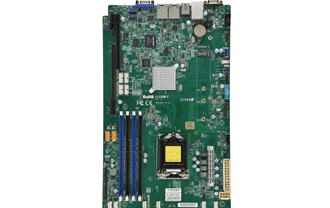

Motherboard / Chassis	MBD-X11SSW-F CSE-514-R407W	1 1	Super X11SSW-F Motherboard 1U Chassis
Air Shroud	MCP-310-19007-0N	1	SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
Cable 1	CBL-0082L	1	Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
Cable 2	CBL-0227L	1	SATA, INT, ROUND, ST-RA, 48CM, 26AWG
Label	LBL-0108	1	CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual	MNL-1880-QRG	1	X11SSW-F, CSE-514-R407W
Riser Card	RSC-R1UW-E8R	1	1U RHS WIO Riser card with one PCI-E x8 slot
Riser Card	RSC-W-68	1	1U LHS WIO w/ 2 PCI-E x8 slots or PCI-E x16 slot
Heatsink / Retention	SNK-P0046P	1	1U PASSIVE CPU HS FOR INTEL LGA1156
Power Supply	PWS-407P-1R	2	AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
Fan	FAN-0156L4 or FAN-0086L4	4	40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH 40x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825M


Optional Parts List

	Part Number	Qty	Description
SATA cable for 2nd HDD	CBL-0227L	1	48cm 30AWG SATA straight to RA cable
GPU Optional Parts	FAN-0141L4 CBL-0424L CBL-0296L	2 1 1	40x40x56mm 20.5K RPM, Counter-rotation fan 8 pin to Daul 6+2 pin GPU power extenstion, 40cm 4pin to 4pin fan extension cord for PWM fan 23cm
Network Card(s)	AOC-SGP-i2 AOC-SGP-i4 AOC-STGN-i2S AOC-STGF-i2S AOC-STG-B4S AOC-STGS-i2T	- - - - - -	Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
TPM security module	AOM-TPM-9665V AOM-TPM-9655V	1 1	TPM 2.0, vertical form factor TPM 1.2, vertical form factor
Global Services & Support	OS4HR3/2/1 OSNBD3/2/1	- -	3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service
Software	SFT-OOB-LIC	1	OOB Management Package (per node license)
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
Hide Parts List
