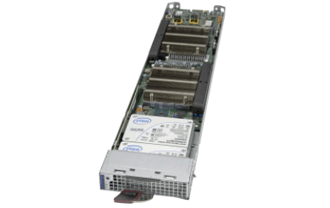

    MBI-6219M-2N

    Print

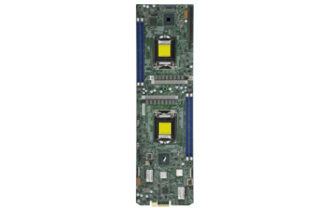

    Intergrated Board
    B2SC2-TF
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • - 392 UP nodes per 42U Rack
      •- 28 UP nodes in 3U, each node:
    • 1. Socket H4 (LGA 1151) support
      Intel® Xeon® processor E-2200 series
    • 2. Up to 64GB ECC VLP UDIMM
      DDR4-2666MHz in 2 DIMM slots
    • 3. Up to 2x 2.5" NVMe U.2 drives
    • 4. Dual 10GbE LAN ports via BCM57414
      Dedicated LAN supports IPMI 2.0
    • 5. Aspeed AST2500
    • 6. Front-loading nodes for easy access and servicing
    • 7. N+1 or N+N Redundant power supplies
      Titanium Level efficiency
    Specifications
    Product SKUs
    MicroBlade Server System
      MBS-314E-6219M
    MicroBlade Sled
    • MBI-6219M-2N
    Motherboard
      MBD-B2SC2-TF

    Processor (per node)
    CPU
    • Single Socket H4 (LGA 1151),

      CPU TDP support up to 95W
    • Support Intel® Xeon® processor E-2100 / E-2200 series
    Cores
    • Up to 8 cores

    System Memory (per node)
    Memory Capacity
    • 2 DDR4 DIMM sockets
    • Supports up to 64GB DDR4 ECC VLP UDIMM
    Memory Type
    • 2666MHz ECC DDR4 UDIMM
    DIMM Sizes
    • 32GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors

        (using ECC memory)

    On-Board Devices (per node)
    Chipset
    • Intel® C246 chipset
    Network Controllers
    • Dual 10GbE LAN ports via BCM57414
    IPMI
    • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)

    System BIOS
    BIOS Type
    • 128Mb Flash EEPROM
    BIOS Features
    • Plug and Play (PnP)
    • APM 1.2
    • SMBIOS 2.7.1
    Dimensions
    Height
    • 1.2" (30.48mm)
    Width
    • 4.94" (125.48mm)
    Depth
    • 23.2" (589.28mm)
    Weight
    • Gross Weight: 3.3 lbs (1.5 kg)
    Available Color
    • Silver Grey

    Front Panel
    LEDs
    • Power LED
    • Fault LED
    • Network Activity LED
    • UID / KVM LED

    Drive Bays (per node)
    Internal
    • 2x 2.5" U.2 NVMe (7mm) drives
    Others
    • 1x SATA DOM

    Input / Output
    TPM
    • 1 TPM Header

    Operating Environment / Compliance
    Environmental Spec.
    • Operating Temperature:

         10°C to 38°C (50°F to 100.4°F)
    • Non-operating Temperature:

         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:

         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:

         5% to 95% (non-condensing)

    Electromagnetic Compatibility (EMC)
    United States / Canada
    • FCC- Emissions (US) Verification
    Europe
    • EN55022 - Emissions
    • EN55024 - Immunity
    • EN61000-3-2 - Harmonics
    • EN61000-3-3 - Voltage Flicker
    • CE - EMC Directive 89/336/EEC
    Parts List
    Parts List - (Items Included)
      Part Number Qty Description
    Motherboard MBD-B2SC2-TF-P 1 B2SC2-TF, Dual node, Intel Xeon E-2100 CoffeeLake, LGA1151
    MicroBlade Sled MCP-680-31405-0N 1 M628 MicroBlade Skylake UP Sled (complete assembly)
    Micro Blade Module Chassis MCP-620-31401-0N

    MCP-620-31402-0N

    MCP-620-31408-0N

    MCP-620-31405-0N    		 1

    1

    1

    1    		 M628 Sled AOM-BPN Bracket

    M628 Sled Node Cover

    M628 Skylake UP top 2x slim 2.5" HDD bracket kit

    M628 MicroBlade Skylake UP Sled Base
    Add-on Card AOM-BPNIO-MSN-P 1 AOM card for B2SC2TF, 2x NVME U.2 ports, RoHS
    Optional Parts List (per node)
      Part Number Qty Description
    Heatsink / Retention SNK-P1040V - Low Profile Proprietary Passive CPU Heat Sink for 6U 14-blade Microblade Series Servers
    TPM security module

    (optional, not included)    		 AOM-TPM-9670V
    AOM-TPM-9671V    		 1 TPM module (Vertical) TPM 2.0
    TPM module (Vertical) TPM 1.2.
    SATA DOM MEM-IDSAHT1-032G

    MEM-IDSAHT1-064G

    MEM-IDSAHT1-128G

    MEM-IDSAHT1-256G

    MEM-IDSAHM3A-016G

    MEM-IDSAHM3A-032G

    MEM-IDSAHM3A-064G

    MEM-IDSAHM3A-128G    		 1 IND SATA3 DOM SH 3TE7 32GB 3D TLC w/Pin8 VCC Horizontal

    IND SATA3 DOM SH 3TE7 64GB 3D TLC w/Pin8 VCC Horizontal

    IND SATA3 DOM SH 3TE7 128GB 3D TLC w/Pin8 VCC Horizontal

    IND SATA3 DOM SH 3TE7 256GB 3D TLC w/Pin8 VCC Horizontal

    IND SATA3 DOM SH 3TE7 32GB 3D TLC w/Pin8 VCC Horizontal

    IND SATA3 DOM SH 3TE7 64GB 3D TLC w/Pin8 VCC Horizontal

    IND SATA3 DOM SH 3TE7 128GB 3D TLC w/Pin8 VCC Horizontal

    IND SATA3 DOM SH 3TE7 256GB 3D TLC w/Pin8 VCC Horizontal

    SATA3 DOM SH 3ME3 V2 16GB MLC w/ Pin8 VCC Horizontal

    SATA3 DOM SH 3ME3 V2 32GB MLC w/ Pin8 VCC Horizontal

    SATA3 DOM SH 3ME3 V2 64GB MLC w/ Pin8 VCC Horizontal

    SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
