    AS -2014TP-HTR

    Print

    Key Features

    • - Compute Intensive Applications
      - HPC, Data Center, Enterprise Server
      - Hyperscale / Hyperconverged
    • Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
    • 1. Single AMD EPYC™ 7002 Series Processor
    • 2. Up to 2TB ECC 3DS LRDIMM,
      up to DDR4-3200MHz; 8 DIMM slots
    • 3. 2 PCI-E 4.0 x16 (LP) slots
    • 4. Flexible Networking support via SIOM;
      Dedicated IPMI 2.0 LAN
      • Software Out of Band License key
      (SFT-OOB-LIC) included for
      OOB BIOS management
    • 5. 3 Hot-swap 3.5" SATA3 drive bays
      M.2 Interface: 4 SATA/PCI-E 4.0 x4
      M.2 Form Factor: 2280, 22110, 2260, 2242
      M.2 Key: M-key
    • 6. 2000W Redundant Power Supplies
      Titanium Level (96%)
      (Full redundancy based on
      configuration and application load)
    Specifications
    Product SKUs
    AS -2014TP-HTR
    • A+ Server 2014TP-HTR
    Motherboard (per Node)

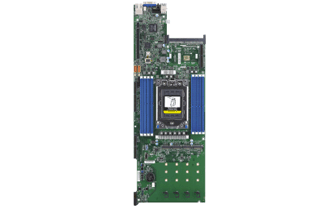

    Super H12SST-PS
    Processor/Chipset (per Node)
    CPU
    • Single AMD EPYC™ 7002 Series Processor
    • Socket SP3
    • Supports CPU TDP / cTDP up to 280W*
    Cores
    • Up to 64 Cores
    Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
    System Memory (per Node)
    Memory Capacity
    • 8 DIMM slots
    • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
    • 8-channel memory bus
    Memory Type
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    Memory Sizes
    • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices (per Node)
    Chipset
    • System on Chip
    Storage
    • SATA3 (6Gbps) via AMD EPYC
    Network Controllers
    • Barebones and Complete System must have at least one SIOM installed per node
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2500 BMC
    Input / Output (per Node)
    LAN
    • Provided via SIOM (optional)
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    • 1 USB 2.0 port (Type A)
    Video
    • 1 VGA port
    DOM
    • 1 SuperDOM (Disk on Module) port
    Others
    • 2 COM ports (header)
    • 1 TPM 2.0 header
    System BIOS (per Node)
    BIOS Type
    • AMI 128Mb SPI Flash ROM
    Management (per Node)
    Software
    Power Configurations
    • ACPI / APM Power Management
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-827HQ+-R2K04BP2
    Dimensions and Weight
    Width
    • 17.25" (438mm)
    Height
    • 3.47" (88mm)
    Depth
    • 30.5" (774mm)
    Package
    • 26.4" (W) x 11.2" (H) x 39.8" (D)
    Weight
    • Gross Weight: 85 lbs (38.6 kg)
    • Net Weight: 54.5 lbs (24.7 kg)
    Available Colors
    • Black
    Front Panel (per Node)
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • HDD activity LED
    • Network activity LEDs
    • Universal Information (UID) LED
    Expansion Slots (per Node)
    PCI-Express
    • 2 PCI-E 4.0 (x16) Low-profile slots
    • 1 SIOM card support
      (must be assembled/integrated with SIOM)
    M.2
    • Interface: 4 SATA/PCI-E 4.0 x4
    • Form Factor: 2280, 22110, 2260, 2242
    • Key: M-key
    Drive Bays (per Node)
    Hot-swap
    • 3 Hot-swap 3.5" SATA3 drive bays
    System Cooling
    Fans
    • 4 Heavy duty 8cm PWM fans

    Power Supply (76mm Width)
    2000W Redundant Power Supplies with PMBus
    Total Output Power
    • 1000W/1800W/1980W/2000W
    Dimension
    (W x H x L)
    • 76 x 40 x 336 mm
    Input
    • 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz
    • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
    • 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
    • 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
    • 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
    +12V
    • Max: 83.3A / Min: 0A (100-127 Vac)
    • Max: 150A / Min: 0A (200-220 Vac)
    • Max: 165A / Min: 0A (220-230 Vac)
    • Max: 166.7A / Min: 0A (230-240 Vac)
    • Max: 166.7A / Min: 0A (200-240 Vac)
      (UL/cUL only)
    +5Vsb
    • Max: 1A / Min: 0A
    Output Type
    • 27 Pairs Gold Finger Connector
    Certification Titanium Level 96%   Titanium Level
      [ Test Report ]
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      10°C ~ 30°C (50°F ~ 85°F)
      All CPU SKUs supported
      10°C ~ 35°C (50°F ~ 95°F)
      See Note *
    • Non-operating Temperature:
      -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    Part Number
    Qty
    Description
    Motherboard / Chassis MBD-H12SST-PS
    CSE-827HQ+-R2K04BP2
    4
    1
    Super H12SST-PS Motherboard
    2U Chassis
    Backplane BPN-ADP-6SATA3P 4 Backplane adapter card; 6SATA ports,RoHS/REACH,PBF
    Backplane BPN-SAS3-827HQ2 1 2U 12-Port 4-Node Backplane Supports 3x3.5" SAS3/SATA3 HDD per Node
    Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5" HDD tray
    Parts MCP-240-82715-0N 1 TwinPro SC827HQ+ BPN retention bracket assembly
    Riser Card RSC-P-6-X2 4 1U LHS TwinPro riser card with one PCI-E 4.0 x16 slot,HF,RoH
    Riser Card RSC-PR-6-X2 4 1U RHS TwinPro Riser card with one PCI-E 4.0 x16 slot,HF,RoH
    Software SFT-OOB-LIC 4 License key for enabling OOB BIOS management
    Heatsink / Retention SNK-P0062P 4 1U Passive CPU Heat Sink for AMD Socket SP3 Processors
    Air Shroud MCP-310-82723-0B 4 SC827HQ+ mylar air shroud for MBD-H12SST-PS-P
    Power Supply PWS-2K04A-1R 2 AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH
    FAN FAN-0162L4 4 80x80x38 mm, 13.5K RPM, HCP, LMV, and LPC Cooling Fan,RoHS/REACH
    Cable CBL-PWCD-0578-1 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
    Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
    Optional Parts List
    Part Number Qty Description
    Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00043-0N - Black Hot-swap gen 4 3.5" to 2.5" HDD tray
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1
    -
    -
    3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
    TPM security module AOM-TPM-9655V - TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
    AOM-TPM-9655V-S - TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF; Provisioned for TXT
    AOM-TPM-9665V - TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF;
    AOM-TPM-9665V-S - TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF; Provisioned for TXT
    SIOM - - Supermicro SIOM solutions [Details]
