    SYS-1019C-FHTN8

    Print
    Intergrated Board

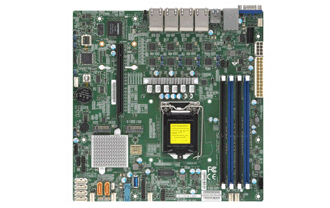

    X11SCM-LN8F
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • -uCPE Network Appliance
      •-Network Security Appliance
      •-Virtualization
    • · Single Socket H4 (LGA 1151) supports
      Intel® Xeon® processor E-2100 /
      E-2200 series, 8th Gen. Intel®
      Core™ i3 Processors, Intel®
      Celeron®, Intel® Pentium®
    • · Intel® C246 chipset
    • · Up to 128GB unbuffered ECC
      UDIMM, DDR4-2666MHz;
      4 DIMM slots
    • · 1 PCI-E 3.0 x16 (FHFL) slot
    • · 2 Hot-swap 2.5" SATA3 drive bays,
      2 Internal 2.5" SATA3 drive bays
      (SSD only)
    • · M.2 Interface:
      1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
      M.2 Form Factor: 2280/22110
      M.2 Key: M-Key
    • · 8 GbE LAN ports, 1 Dedicated IPMI LAN
    • · 2 USB 3.1, 2 USB 2.0, 1 VGA
    • · 350W AC-DC multiple output
      Platinum Level Power Supply
    Specifications
    Product SKUs
    SYS-1019C-FHTN8
    • SuperServer 1019C-FHTN8 (Black)

    Motherboard
    Super X11SCM-LN8F

    Processor
    CPU
    • Single Socket H4 (LGA 1151),
      CPU TDP support up to 80W
    • Support Intel® Xeon® processor E-2100 / E-2200 series, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®

    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 128GB Unbuffered ECC UDIMM
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 SDRAM
    DIMM Sizes
    • 32GB, 16GB, 8GB, 4GB
    Note
    • 128GB system memory capacity will be available in 2019 through a published BIOS update.

    On-Board Devices
    Chipset
    • Intel® C246 chipset
    SATA
    • Intel® C246 controller for SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • ASPEED AST2500 BMC
    Network Controllers
    • Eight LAN with Intel® I210-AT
    Video
    • VGA via Aspeed AST2500 BMC

    Input / Output
    SATA
    • 5 SATA3 (6Gbps) ports
    LAN
    • 8 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.1 ports (front)
    • 2 USB 2.0 ports (front)
    Video
    • 1 VGA port
    Serial Port / Header
    • 1 COM port (option)

    System BIOS
    BIOS Type
    • UEFI 256Mb

    Management
    Software
    • Intel® Node Manager
    • IPMI 2.0
    • NMI
    • SSM, SPM, SUM
    • Watch Dog
    • SuperDoctor® 5
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-513BTQC-350B

    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 15" (381mm)
    Package
    • 8" (H) x 24" (W) x 27" (D)
    Weight
    • Gross Weight: 14.1 lbs (6.4 kg)
    • Net Weight: 10.0 lbs (4.54 kg)
    Available Colors
    • Black front panel with silver chassis

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED

    Expansion Slots
    PCI-Express
    • 1 PCI-E 3.0 x16 (FHFL) slot
    M.2
    • M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
    • M.2 Form Factor: 2280/22110
    • M.2 Key: M-Key

    Drive Bays
    Hot-swap
    • 2 Hot-swap 2.5" SATA3 drive bays
    Internal
    • 2 Internal 2.5" SATA3 drive bays (SSD only)

    System Cooling
    Fans
    • 4x 40x28mm 4-pin PWM fans (optional: 2 additional fans)

    Power Supply
    350W AC power supply w/ PFC
    AC Voltage
    • 100-240 V, 50-60 Hz, 5.0-2.5 Amp
    +5V
    • Max.: 15 Amp
    • Min.: 0.2 Amp
    +5V standby
    • Max.: 3 Amp
    • Min.: 0 Amp
    +12V
    • Max.: 29 Amp
    • Min.: 0.5 Amp
    -12V
    • Max.: 0.2 Amp
    • Min.: 0 Amp
    +3.3V
    • Max.: 12 Amp
    • Min.: 0.2 Amp
    Certification Platinum Level Certified     Platinum Level Certified
      [ Test Report ]

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         0°C to 40°C (32°F to 104°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11SCM-LN8F
    CSE-513BTQC-350B     		1
    1    		 Super X11SCM-LN8F Motherboard
    1U Chassis
    Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
    Cable 1 CBL-0206L 2 SATA,INT,ROUND,ST-ST,48CM,26AWG
    Cable 2 CBL-0296L 1 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
    Cable 3 CBL-CDAT-0662 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
    Parts MCP-150-00015-0B 1 Rubber pad, 3.0mm H, 10x10mm
    Parts MCP-260-00131-0B 1 1U I/O Shield for SC513B & X11SCL-LN4F with EMI Gasket, black color
    Air Shroud MCP-310-51302-0B 1 Mylar Air shroud for SC513B with UP X11SCM MB
    Riser Card RSC-RR1U-E16 1 RSC-RR1U-E16 with PIC-E x16 output
    Heatsink / Retention SNK-P0049P 1 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors
    * Power Supply PWS-350-1H 1 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
    * Cable 4 CBL-0160L 1 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
    * Cable 5 CBL-0335L 1 CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG
    * FAN 1 FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
    * Drive Tray(s) MCP-220-00180-0B 2 2.5\" New ID gen 3 hot-swap HDD tray with lock feature (with plastic bracket)
    * Parts MCP-260-00078-0B 1 1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black
    * Front Panel MCP-280-80901-0N 1 SC809 FRONT CONTROL PANEL ASSY
    * Rail Set MCP-290-00102-0N 1 set Outer rail, quick-release type, 25.6\" to 33.05\"
    * Rail Set MCP-290-00108-0B 1 set Inner rail, front, short (quick) for 1U 17.2
    * Fan Holder MCP-320-00060-0N 1 Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12\"x10.15\")
    * Parts MCP-340-00001-01 2 Dummy fan 40x28mm
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
