    SYS-1019S-M2

    Print

    Key Features

    • -Embedded, 7-year life cycle
      •-Industrial Automation & Control
      •-Military Compact Server
      •-VOIP and Network Appliances
      •-Medical Applications
    • · Single Socket H4 (LGA 1151) supports
      Intel® 7th/6th Gen. Core i7/i5/i3 series,
      Intel® Celeron® and Intel® Pentium®
      processors
    • · Intel® Q170 Express chipset
    • · 2 Fixed 2.5" drive bays
    • · Up to 64GB Unbuffered Non-ECC
      UDIMM DDR4 2400MHz; 4 DIMM slots
    • · 1 PCI-E 3.0 x16 (in x16 slot)
    • · 1 GbE LAN w/ Intel® i210-AT,
      1 GbE LAN w/ Intel® PHY i219LM
    • · Integrated IPMI 2.0 and KVM with
      Dedicated LAN, vPro supported
    • · 2 DP, 1 DVI-I, Intel HD Graphics,
      with 3 independent displays,
      VGA for BMC AST2400
    • · 400W Platinum Level Power Supply
      + Optional 2nd redundant 400W
      Power supply or Battery Backup Unit
    Specifications
    Product SKUs
    SYS-1019S-M2
    • SuperServer 1019S-M2 (Black)

    Motherboard

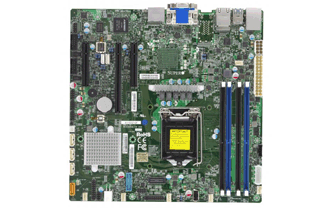

    Super X11SSZ-QF

    Processor/Cache
    CPU
    • Intel® 7th/6th Gen Core i7/i5/i3 series, Intel® Celeron®, Intel® Pentium® processors; CPU TDP support up to 80W TDP
    • Single Socket H4 (LGA 1151)
    Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors

    System Memory
    Memory Capacity
    • 4x 288-pin DDR4 DIMM slots
    • Up to 64GB DDR4 Non-ECC UDIMM
    Memory Type
    • 2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
    DIMM Sizes
    • 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2 V

    On-Board Devices
    Chipset
    • Intel® Q170 Express chipset
    SATA
    • SATA3 (6Gbps) via Intel® Q170 Express controller
    • RAID 0, 1 support
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • ASPEED AST2400 BMC
    Network Controllers
    • Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN Controllers
    • Virtual Machine Device Queues reduce I/O overhead
    • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    Audio
    • RealTek ALC 888S High Definition Audio
    Video
    • ASPEED AST2400 BMC and Intel HD Graphics 530

    Input / Output
    SATA
    • 2 SATA3 (6Gbps) ports; RAID 0, 1
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (2 rear)
    • 3 USB 2.0 ports (2 rear + 1 Type A)
    Video/Display
    • 2 DP (Display Port), 1 DVI-I from Intel® HD Graphics, 1 VGA from AST2400
    • 3 Independent Displays from Processor Graphics, VGA is from AST2400 for BMC KVM
    Serial Port / Header
    • 2 serial headers
    SuperDOM
    • 1 SuperDOM (Disk on Module) port with built-in power

    System BIOS
    BIOS Type
    • 128Mb SPI Flash EEPROM with AMI BIOS
    BIOS Features
    • Plug and Play (PnP)
    • DMI 2.3
    • PCI 3.0
    • ACPI 5.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • SMBIOS 3.0
    • UEFI 2.3.1
    • RTC (Real Time Clock) Wakeup

    Management
    Software
    • AMT
    • IPMI 2.0 with KVM support
    • NMI
    • vPro
    • Watch Dog
    • SuperDoctor® 5
    Power Configurations
    • ACPI Power Management
    • Keyboard Wakeup from Soft-Off
    • CPU Fan auto-off in sleep mode
    • Power-on mode for AC power recovery
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-514-407C-1P

    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 16.9" (429mm)
    Package
    • 8" (H) x 24" (W) x 24" (D)
    Weight
    • Gross Weight: 30.4 lbs (13.8 kg)
    • Net Weight: 17.6 lbs (8 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • 2 Network activity LEDs
    • System Information LED

    Expansion Slots
    PCI-Express
    • 1 PCI-E 3.0 x16 (in x16 slot)

    Drive Bays
    Internal
    • 2 Fixed 2.5" SATA3 drive bays

    System Cooling
    Fans
    • 4x 40x56mm PWM fan; 2x fans for AOC cooling

    Power Supply
    400W Platinum level power supply with PMBus and I2C
    AC Input
    • 400W: 100-240 V, 50-60 Hz
    DC Output
    +5V standby
    • 3 Amp
    DC Output
    +12V
    • 33 Amp
    Certification Platinum Level Certified     Platinum Level


    PC Health Monitoring
    Voltage
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
    FAN
    • Total of 6 fan headers supporting up to 6 fans
    • 6 fans with tachometer status monitoring
    • Status monitor for speed control
    • Status monitor for on/off control
    • Low noise fan speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • I2C temperature sensing logic
    • Thermal Monitor 2 (TM2) support
    • PECI
    LED
    • System Information LED
    • Suspend static indicator LED
    • UID/Remote UID
    Other Features
    • Chassis intrusion detection
    • Chassis intrusion header
    • RoHS, Halogen Free

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         0°C to 40°C (32°F to 104°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    Part Number
    Qty
    Description
    Motherboard / Chassis MBD-X11SSZ-QF
    CSE-514-407C-1P
    1
    1
    Super X11SSZ-QF Motherboard
    1U Chassis
    Cable 1 CBL-0082L 1 Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
    Cable 2 CBL-0227L 2 SATA,INT,ROUND,ST-RA,48CM,26AWG
    Cable 3 CBL-0296L 4 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
    Cable 4 CBL-0062L 1 PWEX,2X4M/P4.2 TO 2X4F/P4.2,12V,BLK*4,YEL*4,20CM,18AWG
    Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
    Parts MCP-260-00094-0N 1 1U I/O Shield for X11SSZ with EMI Gasket,RoHS/REACH
    Riser Card RSC-RR1U-E16 1 RSC-RR1U-E16 with PIC-E x16 output
    Heatsink / Retention SNK-P0046P 1 1U PASSIVE CPU HS FOR INTEL LGA1156
    Power Supply PWS-407P-1R 1 AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
    Optional Parts List

    Part Number
    Qty
    Description
    Power Supply PWS-407P-1R - AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
    Power Supply PWS-206B-1R - Battery Backup Unit
