    SYS-E403-9D-4C-FRN13+

    Print
    Intergrated Board

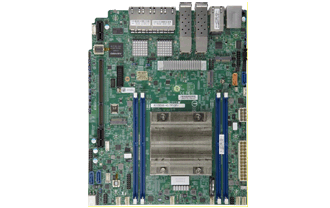

    X11SDW-4C-TP13F+

    Key Features

    • Key Applications
      - 5G Radio Access Network (RAN)
      - Multi-Access Edge Computing (MEC)
      - Edge AI Inferencing
      - Vehicle to Everything (C-V2X/V2X)
      - Virtualized Functions and Services

    • Key Features
      • IP65 enclosure for harsh outdoor environments
      • GR-3108-CORE / GR-487-CORE compliant
      • Operating Temperature -40°C ~ 50°C + Solar load (-40°F ~ 122°F + Solar load)
      • High-efficiency heat exchanger and 300W heater
      • Cabinet intrusion detection and self-diagnosis
      • Intel® Xeon® D-2183IT processor, 16 cores, 32 threads, 2.2 GHz, CPU TDP support 100W
      • Fan redundancy: 3x 80x80mm PWM fans
      • Supports dual power input
    Specifications
    Product SKUs
    SYS-E403-9D-4C-FRN13+
    • SuperServer E403-9D-4C-FRN13+ (Black)

    Motherboard
    Super X11SDW-4C-TP13F+

    Processor
    CPU
    • Intel® Xeon® processor D-2123IT,
      CPU TDP support 60W
    Cores / Cache
    • 4 Cores, 8 Threads

    System Memory
    Memory Capacity
    • Up to 512GB DDR4 ECC LRDIMM
    • Up to 256GB DDR4 ECC RDIMM
    • 4 DIMM slots
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 L/RDIMM
    • Operating speed up to 2400MHz
    DIMM Sizes
    • 128GB, 64GB, 32GB, 16GB
    Memory Voltage
    • 1.2 V

    On-Board Devices
    Chipset
    • System on Chip (SoC)
    SATA
    • SATA3 (6Gbps) ports via SoC controller
    Network Controllers
    • 4x 10G SFP+ via SoC
    • 8x 1GbE with Intel I350-AM4
    • Single 1GbE with Intel I210
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • VGA via Aspeed AST2500 BMC

    Input / Output
    SATA
    • 4 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
    LAN
    • 9 RJ45 Gigabit Ethernet LAN ports
    • 4 10G SFP+ LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (front)
    • 2 USB 2.0 ports (front)
    Video
    • 1 VGA port
    Serial Port / Header
    • 1 COM via RJ45

    System BIOS
    BIOS Type
    • 128Mb SPI Flash with AMI BIOS

    Management
    Software
    Chassis
    Form Factor
    • Box PC
    Model
    • CSE-E403iF-000NDBP2

    Dimensions and Weight
    Height
    • 4.62" (117mm)
    Width
    • 10.5" (267mm)
    Depth
    • 16" (406mm)
    Weight
    • Gross Weight: 23 lbs (10.43 kg)
    • Net Weight: 17 lbs (7.7 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED

    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 (FH3/4L) slots or
    • 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16 (FH3/4L) slots
    M.2
    • 1 M.2 M-Key , 2280/22110
    • 1 M.2 E-Key , 2230
    • 1 M.2 B-Key , 3042

    Drive Bays
    Internal
    • 4 Internal 2.5" drive bays

    System Cooling
    Fans
    • 3x 80x80mm PWM redundant fans

    Power Supply
    800W Redundant Power Supplies with PMBus
    Total Output Power
    • 750W: 100 - 127Vac
    • 800W: 200 - 240Vac
    • 800W: 230 - 240Vdc
    Dimension
    (W x H x L)
    • 54.5 x 40.25 x 220 mm
    Input
    • 750W: 100-127Vac / 10A
    • 800W: 200-240Vac / 5.5A
    • 800W: 230-240Vdc / 5.5A
    +12V
    • Max: 62.5A /Min: 0.5A (100-127Vac)
    • Max: 66.6A /Min: 0.5A (200-240Vac, 230-240Vdc)
    +5Vsb
    • Max: 4A /Min: 0A
    Output Type
    • Gold Finger
    Certification Platinum Level Certified
    Platinum Level

    DC option for: (AC counter-part)
    • PWS-601D-1R

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      0°C ~ 50°C (32°F ~ 122°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11SDW-4C-TP13F+
    CSE-E403iF-000NDBP2    		 1
    1    		 Super X11SDW-4C-TP13F+ Motherboard
    Black 2.5U Embedded redundant BOX for FlexATX MB, W/O PWS
    Add-on Card / Module AOM-SDW-B16X2-P 1 AOM-SDW-B16X2, Dual PCIE x16 slot WIO Riser Card for Intel FlexRAN project,RoHS
    Cable 1 CBL-0082L 2 Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
    Cable 2 CBL-CDAT-0850 1 CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS
    Cable 3 CBL-CUSB-0831 1 [NR] USB2.0, 2 PORT,2x TYPE-A to 2X5/P2.54,63cm,26AWG,RoHS
    Cable 4 CBL-PWCD-0260-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
    Cable 5 CBL-SAST-0641 4 45cm SATA Cable S-RA 30AWG,RoHS/REACH
    FAN FAN-0201L4 3 80x80x80 mm, 9.6K-9.9K RPM Counter-rotating Cooling Fan
    Parts MCP-260-00153-0B 1 1U I/O Shield for X11SDW-14CN-TP13F+ with EMI Gasket, Black
    Air Shroud MCP-310-40302-0B 1 Mylar air shroud for X11SDW in CSE-E403iF, RoHS,Black
    Power Supply PWS-804P-1R 2 1U 800W 100-240VAC/50-60Hz, and DC240V input
    Power Distributor PDB-PT403-8824 1 PDB-PT403-8824 is modified from PDB-PT802-8824 for E403 syst
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Hide Parts List
