    SYS-E403-9D-16C-IPD2

    Print
    Intergrated Board

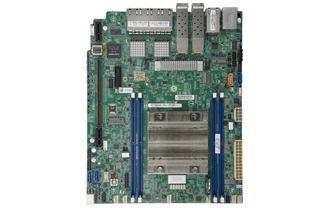

    X11SDW-16C-TP13F+
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • Key Applications
      - 5G Radio Access Network (RAN)
      - Multi-Access Edge Computing (MEC)
      - Edge AI Inferencing
      - Vehicle to Everything (C-V2X/V2X)
      - Virtualized Functions and Services

      Key Features
      • IP65 enclosure for harsh outdoor environments
      • GR-3108-CORE / GR-487-CORE compliant
      • Operating Temperature -40°C ~ 50°C + Solar load(-40°F ~ 122°F + Solar load)
      • High-efficiency heat exchanger and 300W heater
      • Cabinet intrusion detection and self-diagnosis
      • Intel® Xeon® D-2183IT processor, 16 cores, 32 threads, 2.2 GHz, CPU TDP support 100W
      • Fan redundancy: 3x 80x80mm PWM fans
      • Supports dual power input
    Specifications
    Product SKUs
    SYS-E403-9D-16C-IPD2
    • SuperServer E403-9D-16C-IPD2 (White)

    Motherboard
    Super X11SDW-16C-TP13F+

    Processor
    CPU
    • Intel® Xeon® processor D-2183IT,
      CPU TDP support 100W
    Cores / Cache
    • 16 cores, 32 threads

    System Memory
    Memory Capacity
    • Up to 512GB DDR4 ECC LRDIMM
    • Up to 256GB DDR4 ECC RDIMM
    • 4 DIMM slots
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 L/RDIMM
    • Operating speed up to 2400MHz
    DIMM Sizes
    • 128GB, 64GB, 32GB, 16GB
    Memory Voltage
    • 1.2 V

    On-Board Devices
    Chipset
    • System on Chip (SoC)
    SATA
    • SATA3 (6Gbps) ports via SoC controller
    Network Controllers
    • 4x 10G SFP+ LAN via SoC
    • 8x RJ45 Gigabit Ethernet LAN with Intel® Ethernet Controller I350-AM4
    • 1x RJ45 Gigabit Ethernet with Intel I210
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • VGA via Aspeed AST2500 BMC

    Input / Output
    SATA
    • 4 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
    LAN
    • 4 10G SFP+ LAN ports
    • 9 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (front)
    • 2 USB 2.0 ports (front)
    Video
    • 1 VGA port
    Serial Port / Header
    • 1 COM via RJ45

    System BIOS
    BIOS Type
    • 128Mb SPI Flash with AMI BIOS

    Management
    Software
    Chassis
    Form Factor
    • IP65 Enclosure
    Model
    • CSE-B403-IP65

    Dimensions and Weight
    Height
    • 32.31" (821mm)
    Width
    • 12.56" (319mm)
    Depth
    • 10.16" (258mm)
    Weight
    • Gross Weight: 157 lbs (71.21 kg)
    • Net Weight: 101.5 lbs (46.04 kg)
    Available Colors
    • White

    Front Panel
    LEDs
    • Thermal Sensor LED
    • Server Power LED
    • Heater Power LED
    • Main Power LED
    • Fan LED
    • Cabinet Intrusion LED

    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 (FH3/4L) slots or
    • 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16 (FH3/4L) slots
    M.2
    • 1 M.2 M-Key , 2280/22110
    • 1 M.2 E-Key , 2230
    • 1 M.2 B-Key , 3042

    Drive Bays
    Internal
    • 4 Internal 2.5" drive bays

    System Cooling
    Fans
    • 3x 80x80mm PWM redundant fans

    Power
    Main Power
    • 900W -40 Vdc to -59 Vdc, support dual power input
    Server Power
    • 600W Short depth DC48V input Redundant Power Supplies

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         -40°C ~ 50°C (-40°F ~ 122°F)
    • Non-operating Temperature:
         -40°C to 85°C (-40°F to 185°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11SDW-16C-TP13F+
    CSE-B403-IP65    		 1
    1    		 Super X11SDW-16C-TP13F+ Motherboard
    Weather resistance IP65 enclosure optimized for E403iF
    Add-on Card / Module AOM-SDW-B16X2-P 1 AOM-SDW-B16X2, Dual PCIE x16 slot WIO Riser Card for Intel FlexRAN project,RoHS
    Cable 1 CBL-CDAT-0850 1 CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS
    Cable 2 CBL-PWCD-0260-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
    Cable 3 CBL-0082L 2 Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
    Cable 4 CBL-SAST-0641 4 45cm SATA Cable S-RA 30AWG,RoHS/REACH
    Cooling Fan FAN-0201L4 3 80x80x80 mm, 9.6K-9.9K RPM Counter-rotating Cooling Fan
    Cooling Fan Accessory MCP-320-40301-0N 1 Fan bracket with extension cable for 3x 8080 hot-swap,E403
    Parts MCP-260-00144-0B 1 1U I/O Shield for X11SDW with EMI Gasket, Black
    Air Shroud MCP-310-40302-0B 1 Mylar air shroud for X11SDW in CSE-E403iF, RoHS,Black
    Power Supply PWS-601D-1R 2 -48V DC input, 12V and 5Vsb 600W output for 1U redundancy
    Power Distributor PDB-PT403-8824 1 PDB-PT403-8824 is modified from PDB-PT802-8824 for E403 syst
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
