    SYS-5039MC-H12TRF

    Print

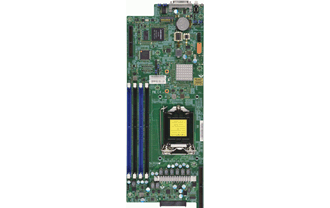

    Intergrated Board
    X11SCE-F
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • - Cloud Computing
      - Web Cache
      - Web Hosting, VM
      - Social Networking
      - Corporate-WINS, DNS, Print, Login
    • 1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100/E-2200, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
    • 2. Intel® C246 chipset
    • 3. Up to 128GB unbuffered VLP ECC, up to DDR4-2666MHz; 4 DIMM slots
    • 4. 1 Micro-LP slot (MicroLP upgradable)
    • 5. 2x 3.5" SATA3 drives or 4x 2.5" SATA3 drives or 2x 2.5" NVMe + 2x 2.5" SATA3 drives or 2x 2.5" NVMe + 1x 3.5" SATA3 drive
    • 6. M.2 Interface: 1 PCI-E 3.0 x4 and SATA
      M.2 Form Factor: 2280, 22110
      M.2 Key: M-Key
    • 7. 2 GbE LAN ports via Intel i350
    • 8. Aspeed AST2500 graphics
    • 9. 4x 9cm Heavy duty fans with optimal cooling zone (per system)
    • 10. 2000W Redundant power supplies Titanium Level Certified (per system)
    Specifications
    Product SKUs
    SuperServer
    • SYS-5039MC-H12TRF (Black)

    Motherboard
    Super X11SCE-F

    Processor (per Node)
    CPU
    • Single Socket H4 (LGA 1151),
      CPU TDP support up to 95W
    • Support Intel® Xeon® processor E-2100 / E-2200 series, 8th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors
    Cores
    • 8 cores max.
    Note
    • BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series

    System Memory (per Node)
    Memory Capacity
    • 4 DIMM slots
    • Up to 128GB Unbuffered ECC
    • Up to DDR4-2666MHz
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 SDRAM
    DIMM Sizes
    • 32GB, 16GB, 8GB, 4GB

    On-Board Devices (per node)
    Chipset
    • Intel® C246 chipset
    SATA
    • SATA3 (6Gbps) via Intel® C246 controller; RAID 0, 1, 5, 10
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM over LAN support
    • ASPEED AST2500 BMC
    Network Controllers
    • Dual LAN with Intel® i350
    Graphics
    • Aspeed AST2500 graphics

    Input / Output (per node)
    SATA
    • 2 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports

    System BIOS
    BIOS Type
    • UEFI 128Mb
    BIOS Features
    • ACPI 1.0 / 2.0 / 3.0 / 4.0
    • APM 1.2
    • DMI 2.3
    • Hardware BIOS Virus protection
    • PCI 2.3
    • Plug and Play (PnP)
    • RTC (Real Time Clock) Wakeup
    • SMBIOS 2.7.1
    • UEFI 2.3.1
    • USB Keyboard support

    Front Window (each node)
    Switch
    • Power / UID
    Chassis
    Form Factor
    • 3U
    Model
    • CSE-939HN-R2K04BP

    Dimensions and Weight
    Height
    • 5.21" (132.5 mm)
    Width
    • 17.5" (444.5 mm)
    Depth
    • 29.5" (749.3 mm)
    Package
    • 16.1" (H) x 28.35" (W) x 42.36" (D)
    Weight
    • Net Weight: 132lbs (59.87kg)
    • Gross Weight: 125lbs (56.70kg)
    Color
    • Black

    Expansion Slots (per Node)
    Micro-LP
    • 1 Micro-LP slot (MicroLP upgradable)
    M.2
    • M.2 Interface: 1 PCI-E 3.0 x4 and SATA
    • M.2 Form Factor: 2280, 22110
    • M.2 Key: M-Key

    Drive Bays (per node)
    Internal
    • 2x 3.5" SATA3 drives or
      4x 2.5" SATA3 drives or
      2x 2.5" NVMe + 2x 2.5" SATA3 drives or
      2x 2.5" NVMe + 1x 3.5" SATA3 drive

    System Cooling
    Fans
    • 4x 9cm Heavy duty fans with optimal cooling zone

    Power Supply (76mm Width)
    2000W Titanium Redundant Power Supplies with PMBus and Reverse Airflow
    Total Output Power
    • 1000W: 100 – 127Vac
    • 1800W: 200 – 220Vac
    • 1980W: 220 – 230Vac
    • 2000W: 230 – 240Vac
    • 2000W: 200 – 240Vac (UL/CUL only)
    Dimension
    (W x H x L)
    • 76 x 40 x 336 mm
    Input
    • 1000W: 100-127 Vac / 12.5-9.5 A / 50-60 Hz
    • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
    • 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
    • 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
    • 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
    +12V
    • Max: 83.3A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 166.7A / Min: 0A (230Vac-240Vac)
    • Max: 166.7A / Min: 0A (200-240 Vac)
      (UL/cUL only)
    +5Vsb
    • Max: 1A / Min: 0A
    Output Type
    • 27 Pairs Gold Finger Connector
    Certification Titanium Level96%    Titanium Level
        [ Test Report ]

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
    • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
    FAN
    • Cooling zone
    Temperature
    • Monitoring for CPU and chassis environment

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11SCE-F
    CSE-939HN-R2K04BP     		12
    1    		 Super X11SCE-F Motherboard
    3U Chassis
    Add-on Card / Module AOM-BPN-MC12S-P 12 AOM-BPN-MC12S
    Add-on Card / Module AOM-CGP-I2M-P 12 AOM-CGP-I2M-O-P
    Add-on Card / Module AOM-GEM-001-P 1 [NR]AOM-GEM-001-O-P
    Add-on Card / Module AOM-LAN-MC12S-P 1 [NR]AOM-LAN-MC12S-P
    Add-on Card / Module AOM-PDB-MC12S-P 12 AOM-PDB-MC12S
    Backplane BPN-SAS-939HS 1 12-port 3U (CSE-939HS) 12-node MicroCloud hot swappable midplane
    Cable 1 CBL-0218L 1 USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG
    Cable 2 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
    Air Shroud MCP-310-93904-0N 12 Mylar air shroud for VLP 4 DIMM (short gap, quick install)
    Heatsink / Retention SNK-P0047PSR 12 LP CPU Heat Sink for 12-node Micro Cloud Series Servers
    Heatsink / Retention SNK-P0047PSRK 12 Low Profile CPU Heat Sink for MBI-6119G-C2 Micro Blade Server
    * Power Supply PWS-2K04F-1R 2 AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, 360x76x40 mm,HF,RoHS/REACH
    * Power Distributor PDB-PT939-DSG 2 Adapter Board for SC939 special gold finger directly plug to BP.
    * Cable 3 CBL-0355L 2 ETHERNET,CAT5E,RJ45 W/BOOT,GREEN,UTP,2FT (60CM),24AWG
    * Cable 4 CBL-CDAT-0662 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
    * Cable 5 CBL-PWCD-0859 1 PWCD,US,IEC60320 C14 TO RA C13 w/SR for 939HS PSU1,3FT,14AWG
    * Cable 6 CBL-PWCD-0860 1 PWCD,US,IEC60320 C14 TO RA C13 w/SR for 939HS PSU2,3FT,14AWG
    * FAN 1 FAN-0195L4 4 92x92x76 mm Counter-rotating Cooling Fan for 3U12N Microclou
    * Rail Set MCP-290-41803-0N 1 Fat twin F418 / F424 Static Rail set support 28-33.5 inch depth rail,RoHS/REACH,PBF
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List
      Part Number Qty Description
    Network Card(s) AOM-C25G-m1SM
    AOM-CTGS-i2TM
    AOM-CTG-i1SM    		 -
    -
    -    		 MicroLP, 1x 25GbE SFP28, PCI-E 3.0 x8, Mellanox®
    MicroLP, 2x 10GbE Base-T, PCI-E 3.0 x4, Intel® X550
    MicroLP, 1 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN, ver 1.21 only
    SATA DOM MEM-IDSAHM2-032G
    MEM-IDSAHM2-064G
    MEM-IDSAHM1-128G    		 -
    -
    -    		 SATA3 ServerDOM MH 3ME 32GB MLC w/ Pin8 VCC Horizontal
    SATA3 ServerDOM MH 3ME 64GB MLC w/ Pin8 VCC Horizontal
    SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal
    TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller,
    Vertical form factor
    TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller,
    Vertical form factor
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1    		 -
    -    		 3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
